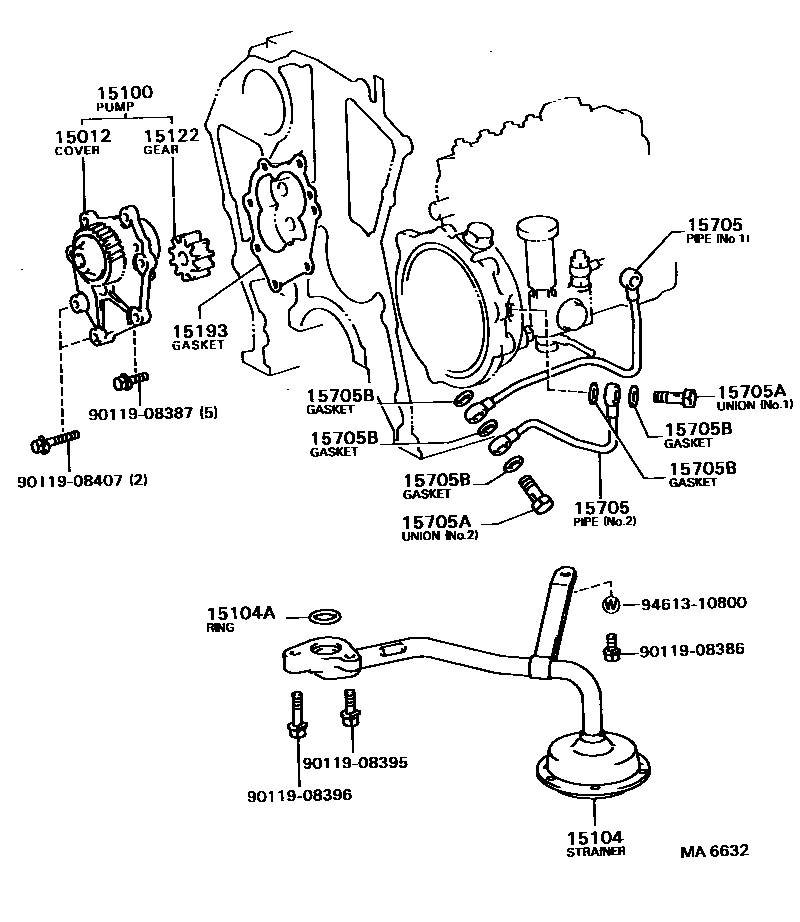

ENGINE OIL PUMP

0001 1 0002 1

15012COVER SUB-ASSY, OIL PUMP

main15012-78010i1W..WU75,9#198409-198708

15100PUMP ASSY, OIL

main15110-71010i3Y#..YU6#,70,80198409-198708

main15110-78010i1W..WU75,9#198409-198708

15104STRAINER SUB-ASSY, OIL

main15104-71010i3Y#..YU6#,70,80198409-198708

main15401-78010i1W..WU75,9#198409-198708

15104ARING, O(FOR OIL STRAINER)

main90301-21003i1W..WU75,9#198409-198708

15122GEAR, OIL PUMP DRIVEN

main15122-78010i1W..WU75,9#198409-198708

15193GASKET, OIL PUMP

main15193-78010i1W..WU75,9#198409-198708

15705PIPE SUB-ASSY, OIL, INJECTION PUMP INLET

main15771-78010i1W..WU75,9#198409-198708

NO.1

main15772-78010i1W..WU75,9#198409-198708

NO.2

15705AUNION(FOR INJECTION PUMP INLET PIPE)

main90401-10016i1W..WU75,9#198409-198708

NO.1

main90401-10017i1W..WU75,9#198409-198708

NO.2

15705BGASKET(FOR INJECTION PUMP INLET PIPE)

main90202-10011×5i1W..WU75,9#198409-198708

9011908386

main90119-08386

9011908387

main90119-08387

9011908395

main90119-08395

9011908396

main90119-08396

9011908407

main90119-08407

9461310800

main94613-10800

15 parts on this diagram · 2 diagrams in section
