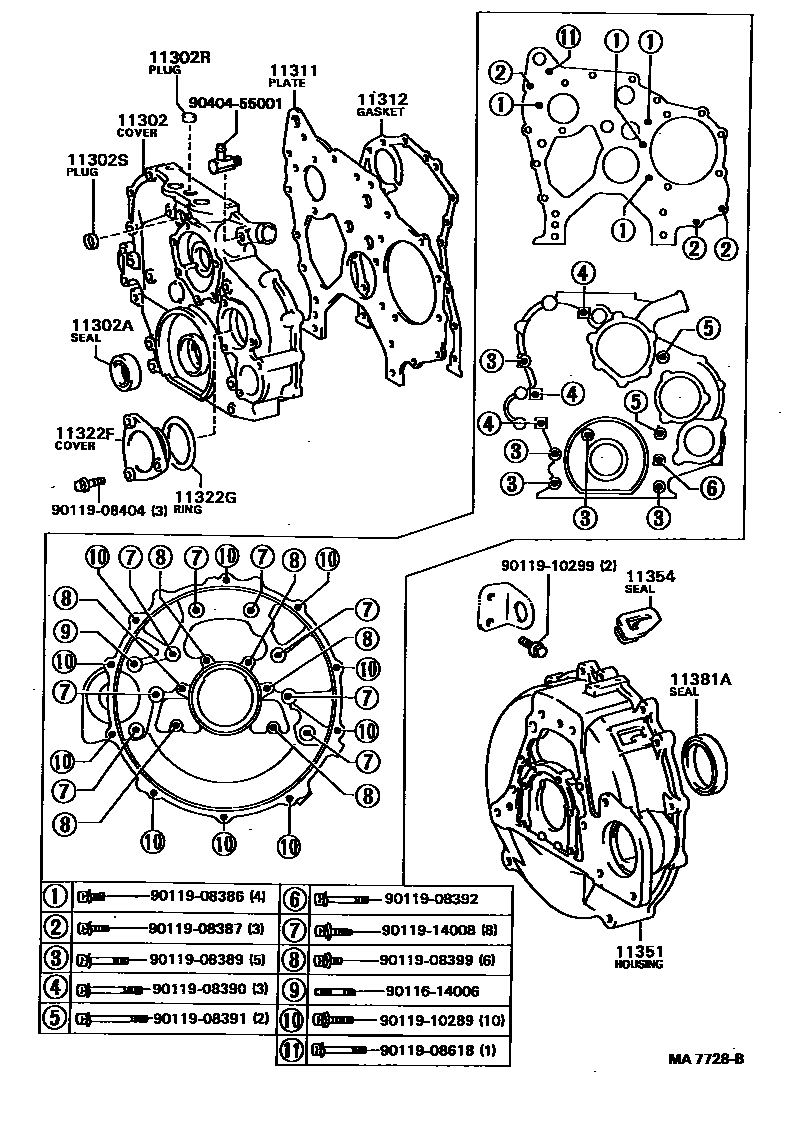

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-71010i3Y#..YU6#,70,80198409-198708

main11321-78020i1W..WU75,9#198409-198708

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42007i3Y#..YU6#,70,80198409-198605

main90311-42019i3YP..YU60,80198605-198708

NDK

main90311-58005i1W..WU75,9#198409-198708

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90331-22002i1W..WU75,9#198409-198708

OD=22

11302SPLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)

main90331-32002i1W..WU75,9#198409-198708

OD=32

11311PLATE, FRONT END

main11311-78010i1W..WU75,9#198409-198708

11312GASKET, FRONT END PLATE

main11312-78010i1W..WU75,9#198409-198708

11322FCOVER, TIMING GEAR, NO.2

main11322-78010i1W..WU75,9#198409-198708

11322GRING, O(FOR TIMING GEAR COVER)

main90301-81003i1W..WU75,9#198409-198708

11351HOUSING, FLYWHEEL

main11351-78020i1W..WU75,9#198409-198508

main11351-78021i1W..WU75,9#198508-198708

11354SEAL, FLYWHEEL HOUSING DUST

main11354-71010i3Y#..YU6#,70,80198409-198708

main11354-78010i1W..WU75,9#198409-198708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-71010i3Y#..YU6#,70,80198409-198708

11381ASEAL, ENGINE REAR OIL

main90311-80003i3Y#..YU6#,70,80198409-198605

main90311-80008i3YP..YU60,80198605-198708

main90311-99002i1W..WU75,9#198409-198708

9011614006

main90116-14006

9011908386

main90119-08386

9011908387

main90119-08387

9011908389

main90119-08389

9011908390

main90119-08390

9011908391

main90119-08391

9011908392

main90119-08392

9011908399

main90119-08399

9011908404

main90119-08404

9011908618

main90119-08618

9011910289

main90119-10289

9011910299

main90119-10299

9011914008

main90119-14008

9040455001

main90404-55001

26 parts on this diagram · 2 diagrams in section
