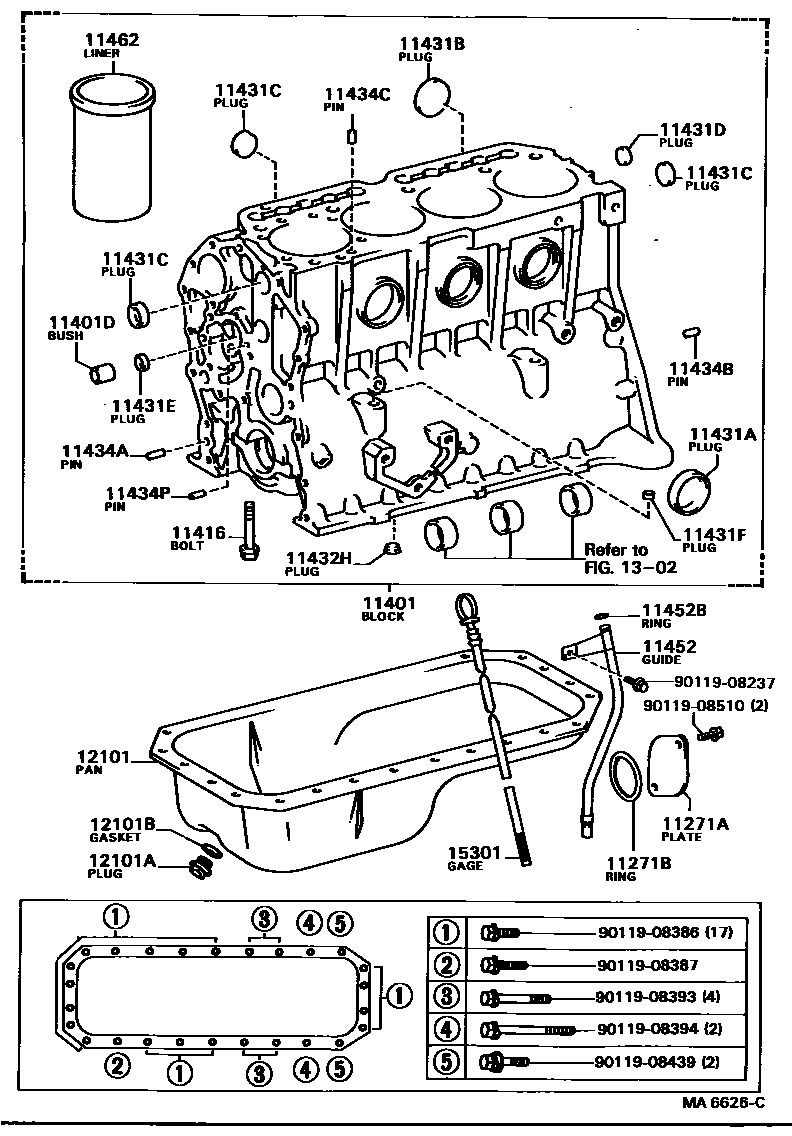

CYLINDER BLOCK

0001 1 0002 1

11271ACOVER, CYLINDER BLOCK, REAR

main11271-78010i1W..WU75,9#198409-198708

subS1149-91050

11271BRING, O(FOR CYLINDER BLOCK REAR PLATE)

main90301-69001i1W..WU75,9#198409-198708

11401BLOCK SUB-ASSY, CYLINDER

main11401-79085i3Y#..YU60,70,80198409-198502

sub11401-79086

sub16268-73021

sub16268-73031

sub16268-73051

sub16268-73070

sub87208-28021

sub87208-89126

main11401-79086i3Y#..YU6#,70,80198502-198708

sub11401-79088

main11410-78010i1W..WU75,9#198409-198708

sub11410-78011

11401DBUSH(FOR OIL PUMP COVER)

main90999-71055i1W..WU75,9#198409-198708

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-14024i1W..WU75,9#198409-198708

*14-2.0PX94-38

sub90031-09070

main90910-02032i3Y#..YU6#,70,80198409-198708

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-50002i1W..WU75,9#198409-198708

OD=50

main96411-01800i3Y#..YU6#,70,80198409-198708

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-40003i1W..WU75,9#198409-198708

OD=40

sub90033-31035

main96411-43500i3Y#..YU6#,70,80198409-198708

OD=35

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-36001i1W..WU75,9#198409-198708

OD=36

main96411-45000i3Y#..YU6#,70,80198409-198708

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-24001i1W..WU75,9#198409-198708

OD=24

main96411-45000i3Y#..YU6#,70,80198409-198708

OD=50

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-17002i1W..WU75,9#198409-198708

OD=17

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-14005i1W..WU75,9#198409-198708

OD=14

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-21001i1W..WU75,9#198409-198708

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08015i1W..WU75,9#198409-198708

main90250-08120i3Y#..YU6#,70,80198409-198708

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120i3Y#..YU6#,70,80198409-198708

main90250-10113i3Y#..YU6#,70,80198409-198708

main90250-12003i1W..WU75,9#198409-198708

sub90032-50060

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08016i1W..WU75,9#198409-198708

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

main90250-05022i1W..WU75,9#198409-198708

11452GUIDE, OIL LEVEL GAGE

main11452-71020i3Y#..YU6#,70,80198409-198708

main11452-78010i1W..WU75,9#198409-198708

subS1210-21912

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09006i1W..WU75,9#198409-198708

11462LINER, CYLINDER

main11461-78020i1W..WU75,9#198409-198708

W

sub11461-78021

main11461-78030i1W..WU75,9#198409-198708

X

sub11461-78031

main11461-78040i1W..WU75,9#198409-198708

Y

sub11461-78051

main11461-78050i1W..WU75,9#198409-198708

Z

sub11461-78051

12101PAN SUB-ASSY, OIL

main12101-71020i3Y#..YU60,70,80198409-198504

sub12101-71021

sub90341-12012

sub90430-12009

main12101-71021i3Y#..YU6#,70,80198504-198708

main12111-78010i1W..WU75,9#198409-198708

subS1211-12730

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3Y#..YU6#,70,80198504-198708

main90341-18089i1W..WU75,9#198409-198708

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90202-18001i1W..WU75,9#198409-198708

ID=18.3

sub90202-18002

main90430-12009i3Y#..YU60,70,80198504-198504

ID=12

main90430-12011i3Y#..YU6#,70,80198504-198708

ID=12

sub90430-12019

main90430-18244i3Y#..YU60,70,80198409-198504

ID=18

sub90430-18023

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-71020i3Y#..YU6#,70,80198409-198708

main15301-78010i1W..WU75,9#198409-198708

subS1530-13262

9011908237

main90119-08237

9011908386

main90119-08386

9011908387

main90119-08387

9011908393

main90119-08393

9011908394

main90119-08394

9011908439

main90119-08439

9011908510

main90119-08510

31 parts on this diagram · 2 diagrams in section
