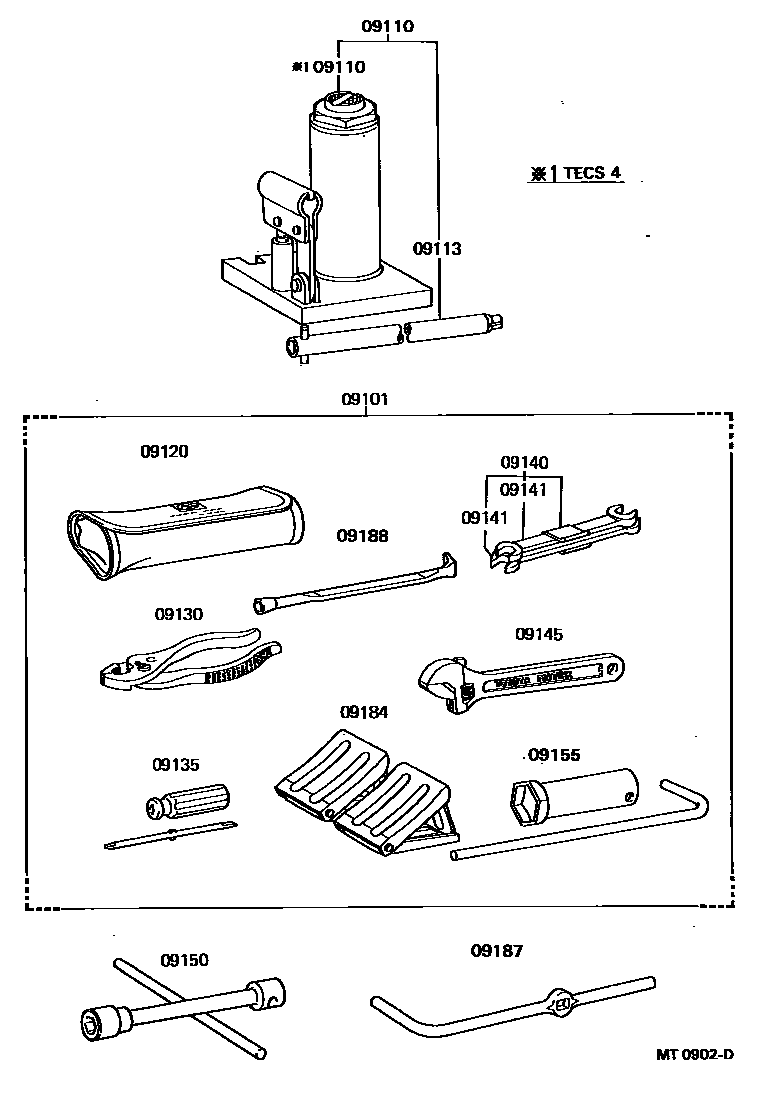

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-25058iYU60..T2,TW2198409-198708

main09102-36281iYU60,70..ST198409-198708

main09102-36301iYU6#,80..(DM1,T3)..WT198409-198708

main09102-36320iWU75,9#198409-198708

09110JACK ASSY

main09110-36041iYU60..ST198409-198512

main09110-36090iYU6#,80..(DM1,T3)..WT198409-198708

main09110-36131iWU75,9#198409-198708

main09110-36160iYU60..T2,TW2; YU70198409-198708

09113HANDLE, JACK

main09113-36060iYU60,70..ST; YU60..T2,TW2198409-198708

main09113-36100iYU6#,80..(DM1,T3)..WT198409-198708

main09113-36130iWU75,9#198409-198708

09120BAG, TOOL

main09120-36060iYU60,70..ST; YU60..T2,TW2198409-198708

main09120-36070iWU75,9#; YU6#,80..(DM1,T3)..WT198409-198708

09130PLIERS

main99913-11500iWU75,9#,YU6#,70,80198409-198708

09135DRIVER, SCREW

main99915-10700iWU75,9#,YU6#,70,80198409-198708

09140SPANNER SET

main09140-27010iWU75,9#,YU6#,70,80198409-198708

09141SPANNER

main99914-11012iWU75,9#,YU6#,70,80198409-198708

main99914-11417iWU75,9#,YU6#,70,80198409-198708

09145WRENCH, MONKEY

main99911-10200iWU75,9#,YU6#,70,80198409-198605

main99911-11200iWU75,9#,YU6#,70,80198605-198708

09150WRENCH, HUB NUT BOX

main09150-25020iYU60,70..ST; YU60..T2,TW2198409-198708

main09150-36030iYU6#,80..(DM1,T3)..WT198608-198708

main09150-55010iWU75,9#198409-198708

main09150-55020iYU6#,80..(DM1,T3)..WT198409-198608

09155WRENCH, SPARK PLUG

main09155-41010iYU6#,70,80198408-198708

09184STOPPER, WHEEL

main09184-00031×2iWU75,9#,YU6#,70,80198409-198708

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iWU75,9#,YU60,70,80198409-198708

09188WRENCH, VALVE CAP

main09188-00030iYU60..T2,TW2198409-198708

14 parts on this diagram · 1 diagram in section
