HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

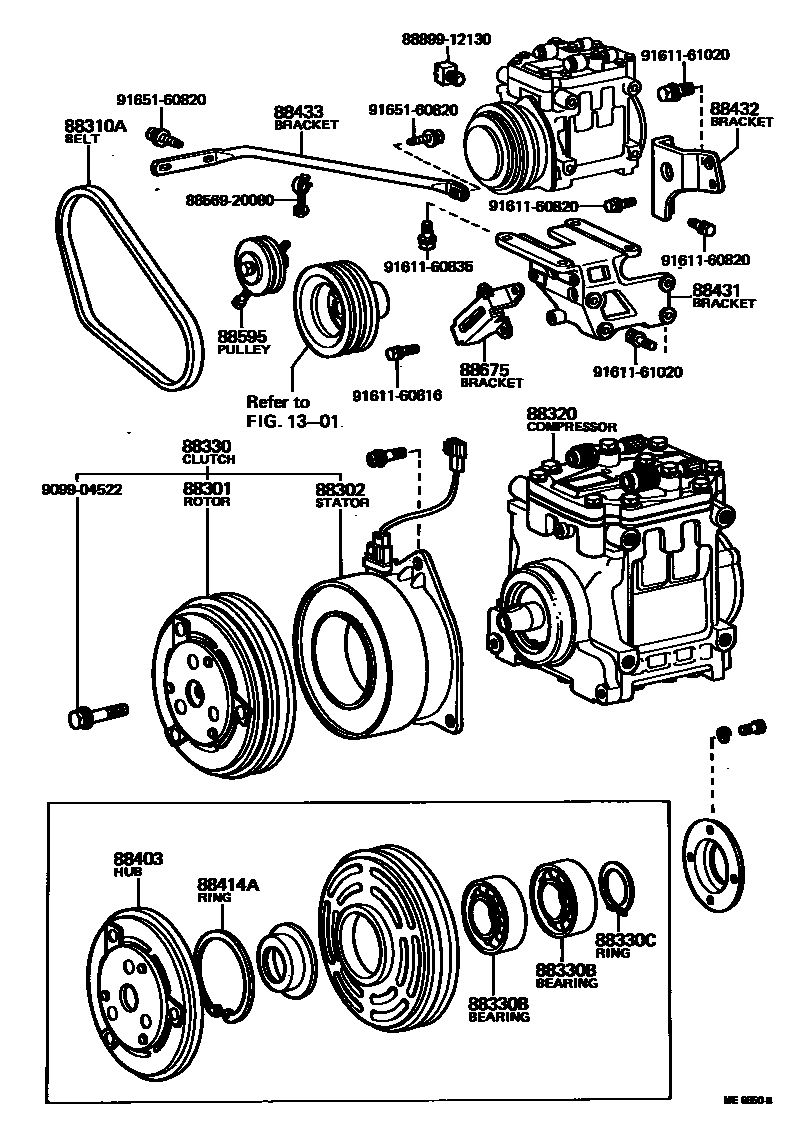

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-14040iRU2#,3#197708-198408

main88401-14060iHU30197906-198008

main88401-36070iHU30197708-197906

main88401-36080iJU20197708-198008

main88412-14020iHU26,40,50198110-198304

main88412-14070iWU26,40,50198304-198408

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12050iJU20,RU2#,3#197708-198408

12V

main88411-25020iHU26,40,50198110-198304

main88411-36070iHU30,JU20197708-198008

24V

main88411-36090iWU26,40,50198304-198408

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00960iJU20197708-198008

main99322-01000iHU30197708-198008

main99322-01050iRU2#,3#197708-198408

main99322-01060iWU26,40,50198304-198408

main99322-01400iHU26,40,50198204-198304

88320COMPRESSOR ASSY, COOLER

main88320-22110iRU2#,3#197708-198408

main88320-36100iHU26,40,50198204-198304

main88320-36130iWU26,40,50198304-198408

main88320-37020iHU30,JU20197708-198008

88330CLUTCH ASSY, MAGNET

main88410-14050iRU2#,3#197708-198408

main88410-20100iJU20197708-198008

12V

main88410-36100iHU30197708-198008

main88410-36110iJU20197708-198008

24V

main88410-36170iWU26,40,50198304-198408

main88410-60070iHU26,40,50198204-198304

88330BBEARING, MAGNET CLUTCH

main90099-10083×2iHU30,JU20,RU2#,3#197708-198408

main90099-10133iHU26,40,50198008-198304

main90099-10135iWU26,40,50198304-198408

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90007iJU20197708-198008

12V

main90096-90015iHU30; JU20197708-198008

24V

main90099-07114iHU26,40,50198008-198304

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iHU26,40,50198110-198304

main88403-14040iWU26,40,50198304-198408

main88403-20031iHU30,JU20,RU2#,3#197708-198408

88414ARING, SHIELD SNAP

main90096-90005iHU30,JU20,RU2#,3#197708-198408

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36090iRU2#,3#197708-198408

main88431-36100iJU20197708-198008

main88431-36120iHU30197708-198008

main88431-36180iWU26,40,50198304-198408

main88431-60030iHU26,40,50198204-198304

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88688-95411iHU26,40,50198204-198304

main88892-36090iRU2#,3#197708-198408

main88892-36100iJU20197708-198008

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88434-36090iRU2#,3#197708-198408

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12060iWU26,40,50198304-198408

main88440-25010iRU2#,3#198008-198408

main88440-30250iHU30,JU20,RU20,30197906-198008

88675BRACKET, IDLER PULLEY (FOR COOLER)

main88444-36080iRU2#,3#197708-198408

main88444-60030iHU26,40,50198204-198304

8856920080CLAMP (FOR COOLER RELAY)

main88569-20080

8889912130COVER, EVAPORATOR

main88899-12130

9009904522

main90099-04522

9161160816

main91611-60816

9161160820

main91611-60820

9161160835

main91611-60835

9161161020

main91611-61020

9165160820

main91651-60820

23 parts on this diagram · 5 diagrams in section
