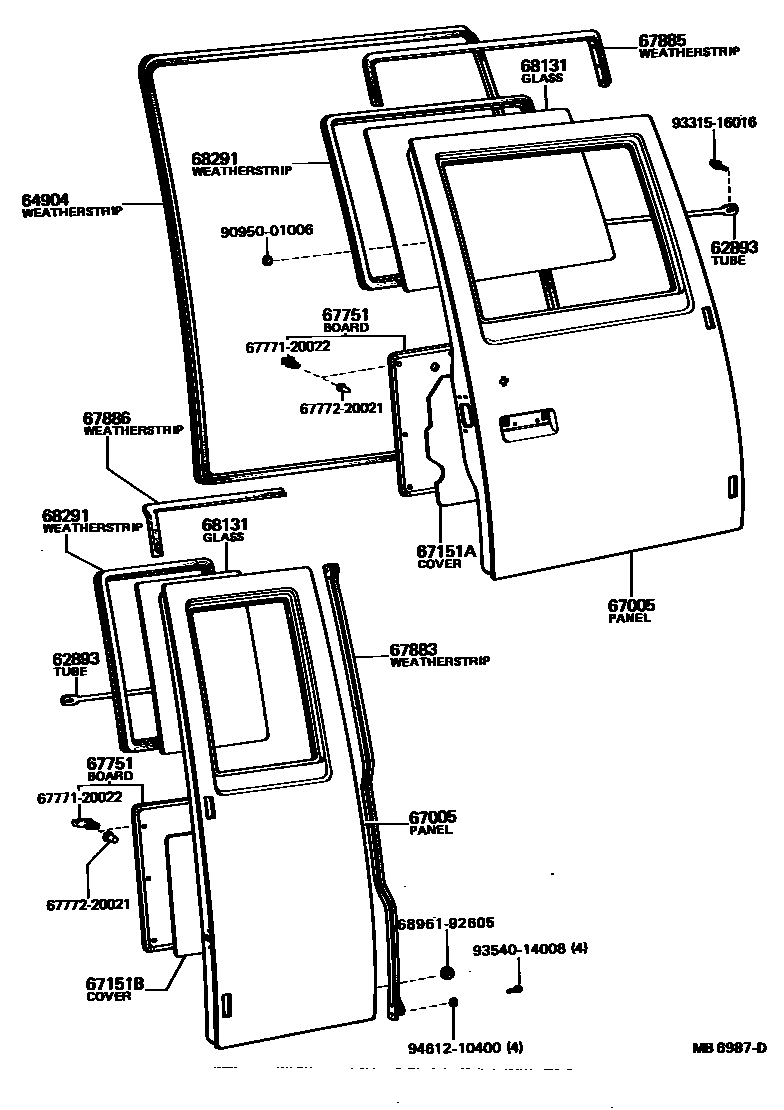

BACK DOOR PANEL & GLASS

62893TUBE, BACK DOOR WINDOW GUARD

main62785-92605iRU2#..SRF197708-198408

RH

main62786-92605iRU2#..SRF197708-198408

LH

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67875-92605iRU2#..SRF197708-198408

67005PANEL SUB-ASSY, BACK DOOR

main67005-92605iRU20..SRF197708-198008

RH

main67005-92606iRU2#..SRF198008-198408

RH

main67006-92605iRU20..SRF197708-198008

LH

main67006-92606iRU2#..SRF198008-198408

LH

67151ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67747-92605iRU2#..SRF197708-198408

67151BCOVER, BACK DOOR SERVICE HOLE, NO.2

main67748-92605iRU2#..SRF197708-198408

67751BOARD, BACK DOOR TRIM

main67710-92605iRU20..SRF197708-198008

RH

main67710-92606iRU20..SRF198008-198204

RH

main67710-92607iRU22..SRF198204-198408

RH

main67720-92605iRU20..SRF197708-198008

LH

main67720-92606iRU20..SRF198008-198204

LH

main67720-92607iRU22..SRF198204-198408

LH

67883WEATHERSTRIP, BACK DOOR, CENTER

main67810-92605iRU2#..SRF197708-198408

67885WEATHERSTRIP, BACK DOOR, RH

main67830-92605iRU2#..SRF197708-198408

67886WEATHERSTRIP, BACK DOOR, LH

main67840-92605iRU2#..SRF197708-198408

68131GLASS, BACK DOOR

main68131-92605iRU2#..SRF197708-198408

main68131-92606iRU20..SRF197708-198008

main68132-92605iRU2#..SRF197708-198408

main68132-92606iRU20..SRF197708-198008

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-92605iRU2#..SRF197708-198408

RH

main68292-92605iRU2#..SRF197708-198408

LH

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6896192605BOLT, BACK DOOR STAY

main68961-92605

9095001006

main90950-01006

9331516016

main93315-16016

9354014008

main93540-14008

9461210400

main94612-10400

18 parts on this diagram · 1 diagram in section
