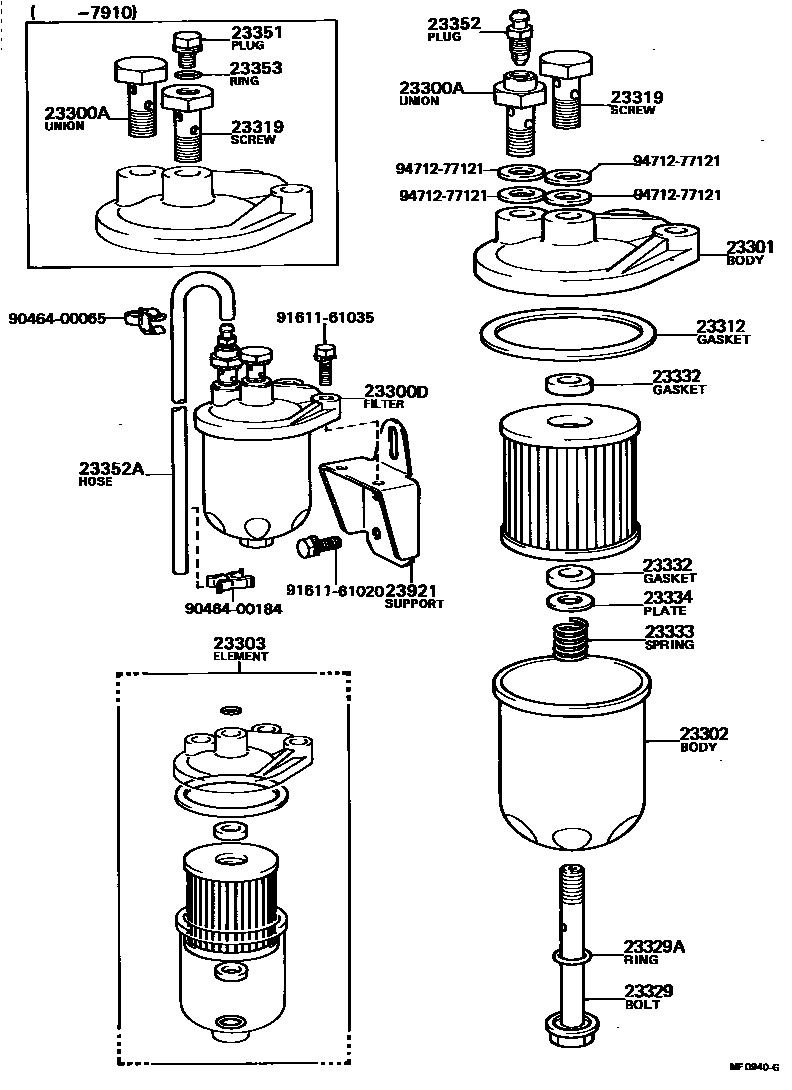

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

23300FILTER ASSY, FUEL

main23030-44050i5R..RU20,30197708-197911

main23030-44060i5R..RU2#,3#197911-198408

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23319-48010i2J..JU20; H..HU30197909-198008

main90401-14004i1W..WU26,40,50198304-198408

main90401-14060i2J..JU20; H..HU30197708-197909

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-48012i2J..JU20; H..HU30197708-197809

main23300-48013i2J..JU20; H..HU30197809-197910

main23300-48014i2J..JU20; H..HU30197910-198008

main23300-68030i2H..HU26,40,50198204-198304

23301BODY SUB-ASSY, FUEL FILTER

main23310-78010i1W..WU26,40,50198304-198408

main23311-48012i2J..JU20; H..HU30197708-197809

23302BODY SUB-ASSY, FUEL FILTER, LOWER

main23302-48012i2J..JU20; H..HU30197708-198008

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-48011i2J..JU20; H..HU30197708-198008

main23303-54071i2H..HU26,40,50198204-198304

main23304-78010i1W..WU26,40,50198304-198408

23312GASKET, FILTER BOWL

main23312-48012i2J..JU20; H..HU30197708-198008

23319SCREW, FUEL PIPE FOLLOW

main23319-46010i2J..JU20; H..HU30197708-197910

main23319-48010i2H..HU26,40,50198204-198304

main90401-14060i2J..JU20; H..HU30197910-198008

23329BOLT, FUEL FILTER CENTER

main23304-48012i2J..JU20; H..HU30197708-198008

23329ARING, O(FOR FUEL FILTER CENTER BOLT)

main23344-46010i2J..JU20; H..HU30197708-198008

23332GASKET, ELEMENT(FOR FUEL FILTER)

main23332-48012×2i2J..JU20; H..HU30197708-198008

23333SPRING, FILTER ELEMENT SET

main23333-48012i2J..JU20; H..HU30197708-198008

23334PLATE, SPRING(FOR FILTER ELEMENT)

main23334-48012i2J..JU20; H..HU30197708-198008

23351PLUG, AIR VENT

main23322-78010i1W..WU26,40,50198304-198408

main23351-46010i2J..JU20; H..HU30197708-197910

23352PLUG, BLEEDER

main47547-12030i2J..JU20; H..HU30197910-198008

23352AHOSE(FOR BLEEDER PLUG)

main90446-08009i2J..JU20; H..HU30197910-198008

23353RING, O(FOR AIR VENT PLUG)

main23353-46010i2J..JU20; H..HU30197708-197910

main90202-06012i1W..WU26,40,50198304-198408

23921SUPPORT, FUEL FILTER

main23921-44031i5R..RU30;5R..RU20..ST197708-197805

main23921-44040i5R..RU20..H50;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU197708-197911

main23921-47011iH..HU30197708-198008

main23921-48010i2J..JU20197708-198008

main90461-10505i5R..RU2#,3#197911-198408

9046400065

main90464-00065

9046400184

main90464-00184

9161161020

main91611-61020

9161161035

main91611-61035

9471277121

main94712-77121

23 parts on this diagram · 5 diagrams in section
