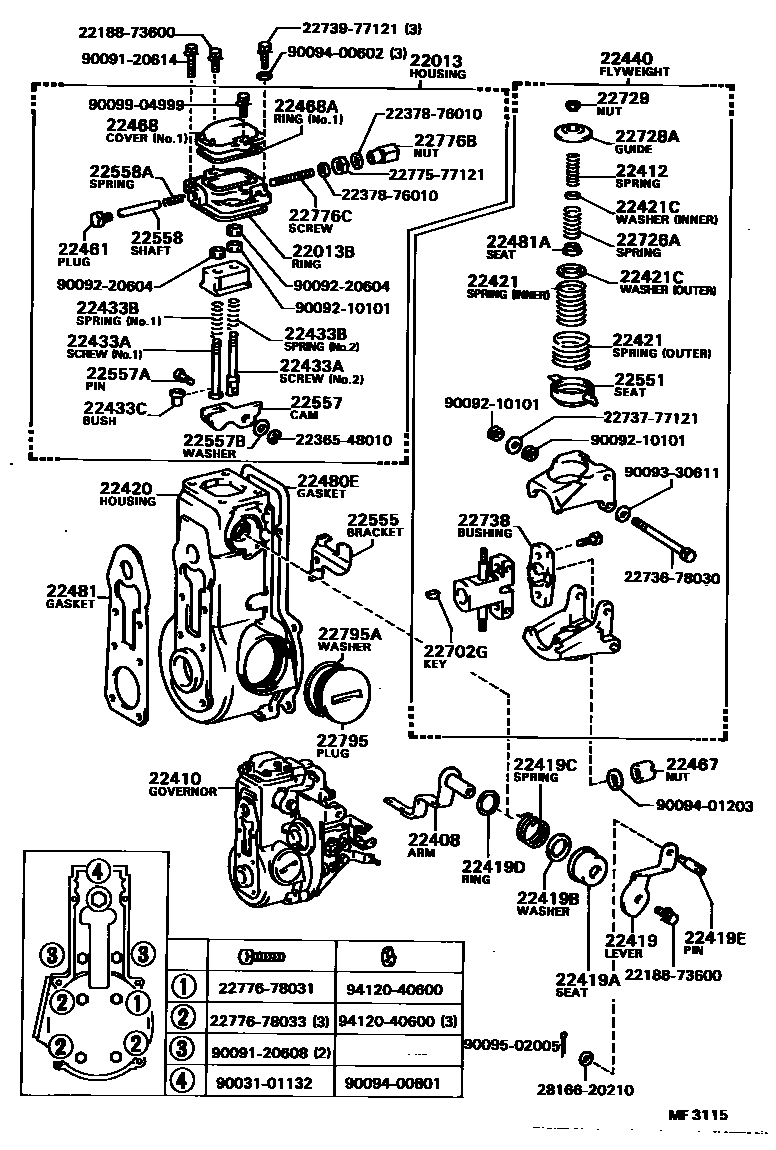

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
22408ARM, STOPPER
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
COLD SPEC
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
22419ASEAT, RETURN SPRING(FOR STOPPER ARM)
22419BWASHER, PLATE(FOR STOPPER LEVER)
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
22419EPIN, CONNECTOR(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22421SPRING, IDLING
OUTER,RED
OUTER,BLUE
INNER
INNER
22421CWASHER, IDLING SPRING
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.1
NO.2
22433BSPRING(FOR ADAPTER SCREW)
NO.1
NO.2
22433CBUSH(FOR ADAPTER SCREW)
22440FLYWEIGHT SUB-ASSY
22461PLUG, SCREW
22467NUT, ROUND
22468COVER, PLATE
NO.2
NO.1
22468AO, RING
NO.1
NO.2
22480EGASKET, GOVERNOR COVER
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22555BRACKET, STOPPER
22557CAM, FULL STOP
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
22702LEVER ASSY, FLOATING
22702GKEY, WOODRUFF(FOR FROATING LEVER)
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
GOVERNOR COVER SIDE
FULLROAD STOPPER HOUSING SIDE
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
2218873600
main22188-73600
2236548010RING, E(FOR INJECTION PUMP LEVER)
main22365-48010
2237876010WASHER, DRAIN SCREW
main22378-76010
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2273977121BOLT, GOVERNOR LINK SUPPORT
main22739-77121
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
2277678031SCREW, SMOKE SET ADJUSTING
main22776-78031
2277678033SCREW, SMOKE SET ADJUSTING
main22776-78033
2816620210BUSH, STARTER INSULATION
main28166-20210
9003101132
main90031-01132
9009120608
main90091-20608
9009120614
main90091-20614
9009210101
main90092-10101
9009220604
main90092-20604
9009330611
main90093-30611
9009400602
main90094-00602
9009400801
main90094-00801
9009401203
main90094-01203
9009502005
main90095-02005
9009904999
main90099-04999
9412040600
main94120-40600
64 parts on this diagram · 2 diagrams in section
