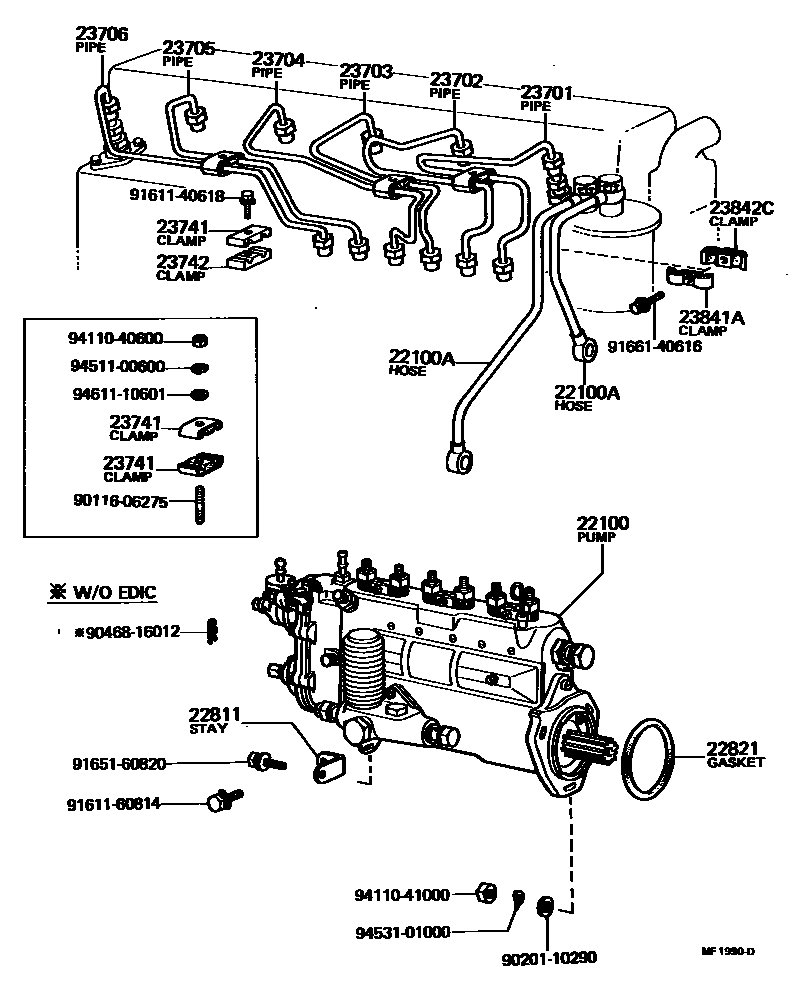

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78010i1W..WU26,40,50198304-198308

main22010-78011i1W..WU26,40,50198308-198408

main22010-78020i1W..WU26,40,50198304-198308

COLD SPEC

main22010-78021i1W..WU26,40,50198308-198408

COLD SPEC

main22100-47060iH..HU30197708-198008

main22100-48031i2J..JU20197708-198008

main22100-48120i2J..JU20197812-198008

COLD SPEC

main22100-68070i2H..HU26,40,50198204-198304

main22100-68080i2H..HU26,40,50198204-198304

COLD SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-47020iH..HU30197708-198008

FEED PUMP

main23801-48010i2J..JU20197708-198008

FEED PUMP

main23801-68030i2H..HU26,40,50198204-198304

main23802-47020iH..HU30197708-198008

INJECTION PUMP

main23802-48010i2J..JU20197708-198008

INJECTION PUMP

main23802-68020i2H..HU26,40,50198204-198304

main23814-78010i1W..WU26,40,50198304-198408

FEED PUMP TO FILTER

main23815-78010i1W..WU26,40,50198304-198408

MAIN HOSE TO FEED PUMP

main23826-78010i1W..WU26,40,50198304-198408

FILTER TO INJECTION PUMP

22811STAY, INJECTION PUMP, NO.1

main22811-47011iH..HU30197708-198008

main22811-48010i2J..JU20197708-197902

main22811-48020i2J..JU20197902-198008

main22811-68010i2H..HU26,40,50198204-198304

main22811-78010i1W..WU26,40,50198304-198408

22821GASKET, INJECTION PUMP

main90301-77001i2J..JU20; H..HU30197811-198008

main90301-78177i2J..JU20; H..HU30197708-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-47012iH..HU30197708-198008

main23701-48011i2J..JU20197708-198008

main23701-68010i2H..HU26,40,50198204-198304

main23701-78010i1W..WU26,40,50198304-198408

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-47012iH..HU30197708-198008

main23702-48011i2J..JU20197708-198008

main23702-68010i2H..HU26,40,50198204-198304

main23702-78010i1W..WU26,40,50198304-198408

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-47012iH..HU30197708-198008

main23703-48011i2J..JU20197708-198008

main23703-68010i2H..HU26,40,50198204-198304

main23703-78010i1W..WU26,40,50198304-198408

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-47012iH..HU30197708-198008

main23704-48011i2J..JU20197708-198008

main23704-68010i2H..HU26,40,50198204-198304

main23704-78010i1W..WU26,40,50198304-198408

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-47012iH..HU30197708-198008

main23705-68010i2H..HU26,40,50198204-198304

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-47012iH..HU30197708-198008

main23706-68010i2H..HU26,40,50198204-198304

23741CLAMP, INJECTION PIPE, NO.1

main23741-46010iH..HU30197708-198008

2 WAY

main23741-48010×10i2H..HU26,40,50198204-198304

main23741-56010×6i2J..JU20; H..HU30197708-198008

main90929-01058i1W..WU26,40,50198304-198408

23742CLAMP, INJECTION PIPE, NO.2

main23742-46010iH..HU30197708-198008

2 WAY

main90929-01057×3i1W..WU26,40,50198304-198408

23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)

main23841-56010i2J..JU20; H..HU30197708-198008

23842CCLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)

main23842-56010i2J..JU20; H..HU30197708-198008

9011606275

main90116-06275

9020110290

main90201-10290

9046816012

main90468-16012

9161140618

main91611-40618

9161160814

main91611-60814

9165160820

main91651-60820

9166140616

main91661-40616

9411040600

main94110-40600

9411041000

main94110-41000

9451100600

main94511-00600

9453101000

main94531-01000

9461110601

main94611-10601
