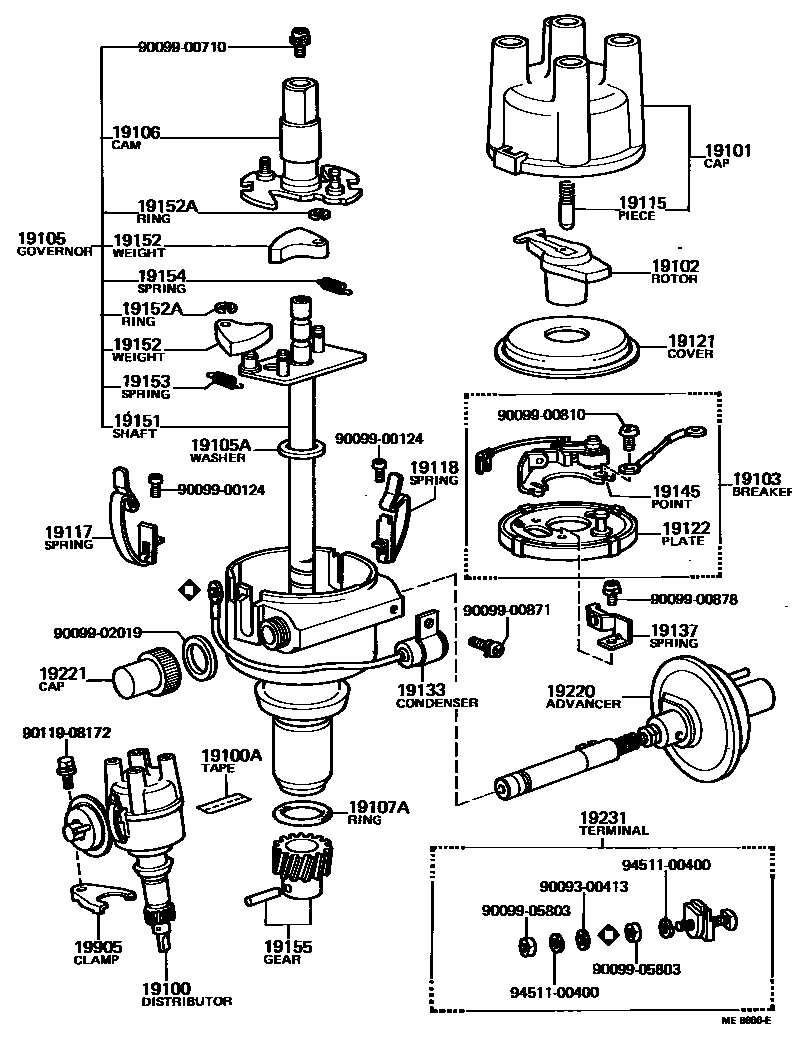

DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-44120i5R..RU20,30197708-197904

main19100-44180i5R..RU20,30197904-198204

main19100-44240i5R..RU22,32198204-198408

main19100-44250i5R..RU22..TB..20T..CBU198309-198408

LPG PACKAGE

19100ATAPE, SEALING

main90919-24004i5R..RU2#,3#197712-198408

L=70

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-25070i5R..RU2#,3#197904-198408

main19101-33012i5R..RU20,30197708-197904

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-33012i5R..RU2#,3#197708-198408

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-33013i5R..RU2#,3#197708-198408

19105GOVERNOR SUB-ASSY

main19105-44011i5R..RU2#,3#197708-198408

main19105-44250i5R..RU22..TB..20T..CBU198309-198408

LPG PACKAGE

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01385i5R..RU2#,3#197708-198408

main90099-01386i5R..RU2#,3#197708-198408

main90099-01387i5R..RU2#,3#197708-198408

main90099-01412i5R..RU2#,3#197708-198408

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-33013i5R..RU2#,3#197708-198408

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i5R..RU2#,3#197708-198408

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i5R..RU2#,3#197708-198408

19117SPRING, DISTRIBUTOR CAP, A

main19117-33011i5R..RU20,30197708-197904

19118SPRING, DISTRIBUTOR CAP, B

main19118-33011i5R..RU20,30197708-197904

19121COVER, DUST PROOF

main19121-33011i5R..RU20,30197708-197904

main19121-38030i5R..RU2#,3#197904-198408

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-33013i5R..RU2#,3#197708-198408

19133CONDENSER, DISTRIBUTOR

main90099-52059i5R..RU2#,3#197708-198408

19137SPRING SUB-ASSY, DAMPER

main19137-33012i5R..RU2#,3#197708-198408

19145POINT, DISTRIBUTOR

main19145-26060i5R..RU2#,3#197708-198408

19151SHAFT, GOVERNOR

main19151-33011i5R..RU2#,3#197708-198408

19152WEIGHT, GOVERNOR

main19152-45060×2i5R..RU2#,3#197708-198408

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07104×2i5R..RU20,30197708-198204

main90099-07109×2i5R..RU22,32198204-198408

19153SPRING, GOVERNOR, A

main19153-44011i5R..RU2#,3#197708-198408

main19153-44250i5R..RU22..TB..20T..CBU198309-198408

LPG PACKAGE

19154SPRING, GOVERNOR, B

main19154-44011i5R..RU2#,3#197708-198408

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-33011i5R..RU2#,3#197708-198408

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-44111i5R..RU20,30197708-197904

main19220-44180i5R..RU20,30197904-198204

main19220-44240i5R..RU22,32198204-198408

main19220-44250i5R..RU22..TB..20T..CBU198309-198408

LPG PACKAGE

19221CAP, ADJUSTER, DISTRIBUTOR

main19221-30030i5R..RU2#,3#197708-198408

19231TERMINAL, DISTRIBUTOR

main19231-24140i5R..RU2#,3#197904-198408

main19231-33011i5R..RU20,30197708-197904

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19955-33010i5R..RU2#,3#197708-198408

9009300413

main90093-00413

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009900878

main90099-00878

9009902019

main90099-02019

9009905803

main90099-05803

9011908172

main90119-08172

9451100400

main94511-00400

37 parts on this diagram · 2 diagrams in section
