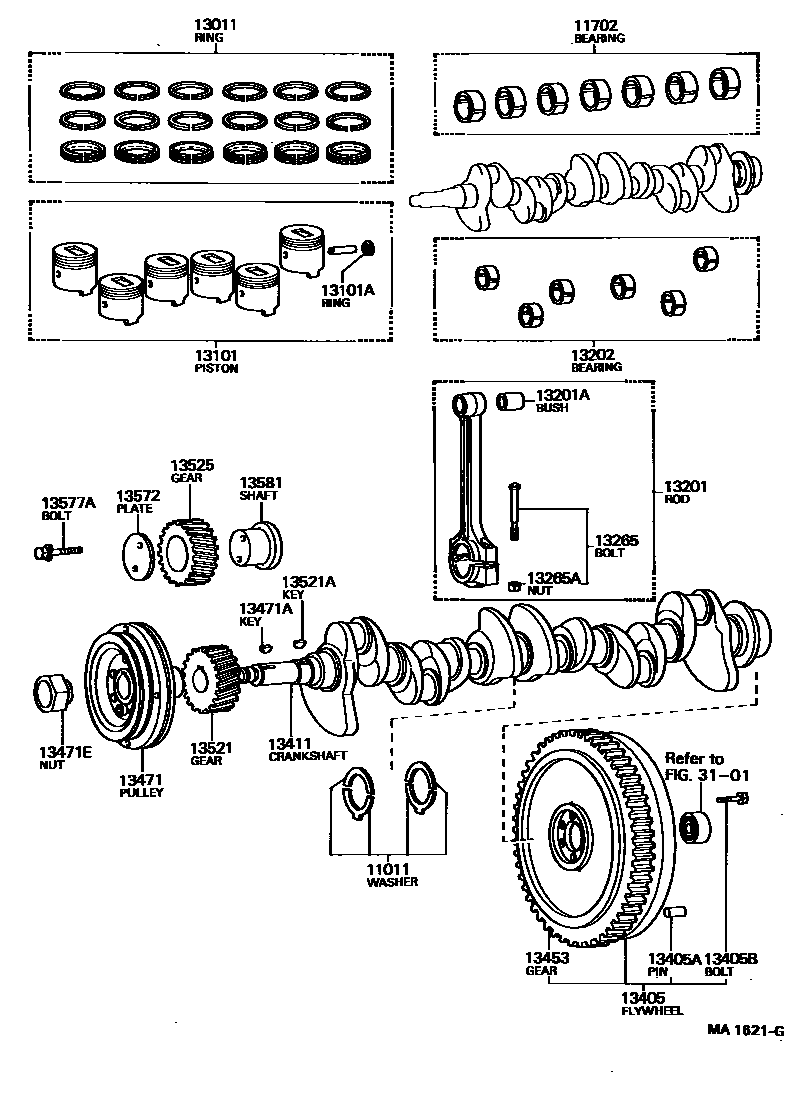

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD
STD
STD
STD
STD
REP STD #1
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.05
REP STD #2
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
U/S 1.00
13011RING SET, PISTON
STD
STD,LPG PACKAGE
STD
STD
O/S 0.50
O/S 0.50,LPG PACKAGE
O/S 0.75
O/S 0.75,LPG PACKAGE
O/S 1.00
O/S 1.00 LPG PACKAGE
O/S 1.00
O/S 1.00
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
STD
REP STD #1
STD
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
N=115
N=108
N=117
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=14,OD=11
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
*12-1.25PX32-22
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
N=115
N=108
N=105
N=105
N=121
13471PULLEY, CRANKSHAFT
W/POWER STEERING
W/COOLER
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471ENUT(FOR CRANKSHAFT PULLEY)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
N=25
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=68
N=24
13572PLATE, IDLE GEAR THRUST
NO.1
NO.2
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13581SHAFT, IDLE GEAR, NO.1
