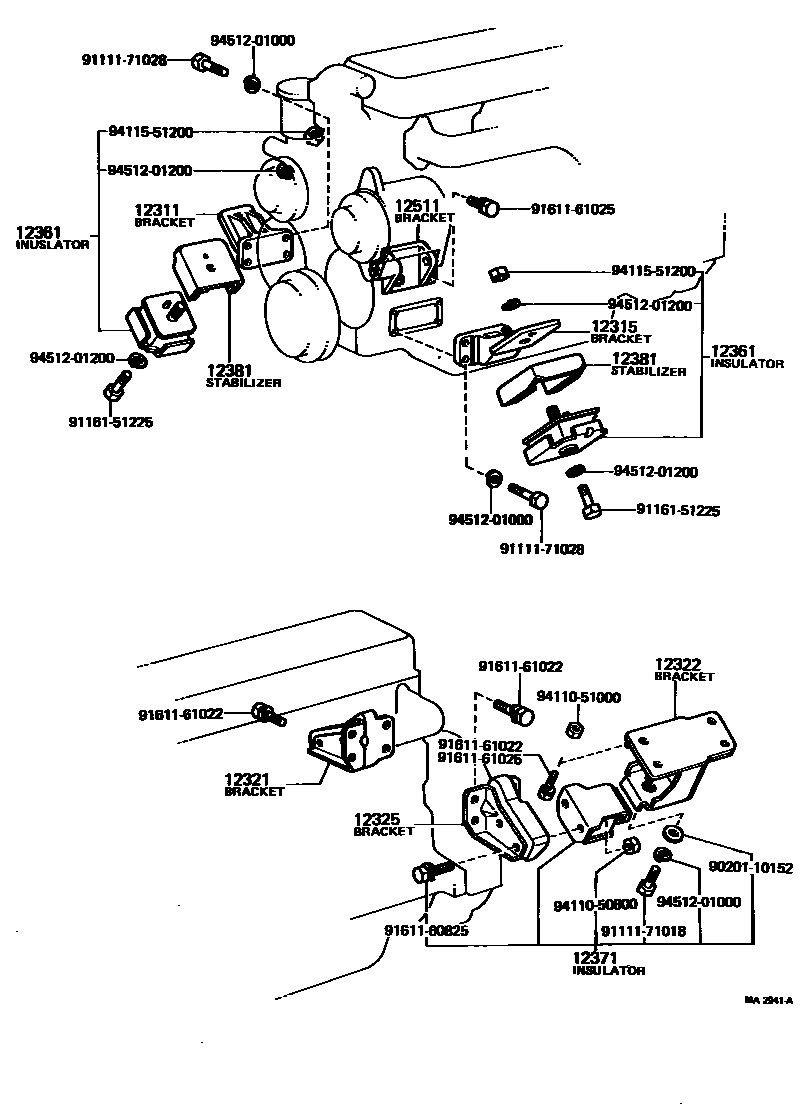

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-44020i5R..RU2#,3#197708-198408

main12311-47030iH..HU30197708-198008

main12311-48020i2J..JU20197708-197902

main12311-48030i2J..JU20197902-198008

main12311-68050i2H..HU26,40,50198204-198304

main12311-78010i1W..WU26,40,50198304-198408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-78010i1W..WU26,40,50198304-198408

main12312-44010i5R..RU2#,3#197708-198408

main12315-47030iH..HU30197708-198008

main12315-48020i2J..JU20197708-198008

main12315-68030i2H..HU26,40,50198204-198304

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-47041iH..HU30197708-198008

main12321-56031i1W..WU26,40,50198304-198408

main12321-56040i5R..RU2#..H50;5R..RU22..T3..WT;5R..RU20..T3..WT..CBU;5R..RU20..T3..WT..ATP197708-198408

main12321-68020i2H..HU26,40,50198204-198304

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-44040×2i5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU197708-198009

main12322-44041×2i5R..RU2#..T3..WT198009-198408

main12322-56040×2i5R..RU2#..H50197708-198408

main12322-56050×2i1W..WU26,40,50198304-198408

main12322-56060×2i2J..JU20; 5R..RU30;5R..RU20..T3..ST;5R..RU20..SRF,T1,T2,TW1,TW2; H..HU30197708-198204

main12322-68020i2H..HU26,40,50198204-198304

RH

main12326-68010i2H..HU26,40,50198204-198304

LH

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-47041iH..HU30197708-198008

main12325-56021i5R..RU2#..BTP197904-198408

main12325-56030i5R..RU2#..H50;5R..RU22..T3..WT;5R..RU20..T3..WT..CBU;5R..RU20..T3..WT..ATP197708-198408

main12325-68020i2H..HU26,40,50198204-198304

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-44060×2i5R..RU2#,3#198103-198408

main12361-47021×2iH..HU30198003-198008

main12361-49065iH..HU30197708-198003

RH

main12361-49105i2J..JU20197708-198008

RH

main12361-49115i5R..RU20,30197708-198103

RH

main12361-68040i2H..HU26,40,50198204-198304

RH

main12361-78010×2i1W..WU26,40,50198304-198408

main12362-49025iH..HU30197708-198003

LH

main12362-49045i2J..JU20197708-198008

LH

main12362-49055i5R..RU20,30197708-198103

LH

main12362-68010i2H..HU26,40,50198204-198304

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-48010×2i1W..WU26,40,50198304-198408

main12371-59025×2i2J..JU20; 5R..RU20,30; H..HU30197708-198003

main12371-68030×2i2H..HU26,40,50198204-198304

12381STABILIZER, ENGINE MOUNTING

main12381-47010×2iH..HU30197708-198003

12511BRACKET, ALTERNATOR, NO.1

main12511-40012i5R..RU20,30197708-198204

12V 30A ALTERNATOR

main12511-40020i5R..RU2#,3#197809-198408

12V 40A ALTERNATOR

main12511-44020i5R..RU20,30197708-197809

12V 40A ALTERNATOR

main12511-48010i2J..JU20; H..HU30197708-198008

main12511-68010i2H..HU26,40,50198204-198304

main12511-78010i1W..WU26,40,50198304-198408

9020110152

main90201-10152

9111171018

main91111-71018

9111171028

main91111-71028

9116151225

main91161-51225

9161160825

main91611-60825

9161161022

main91611-61022

9161161025

main91611-61025

9411050800

main94110-50800

9411051000

main94110-51000

9411551200

main94115-51200

9451201000

main94512-01000

9451201200

main94512-01200

21 parts on this diagram · 6 diagrams in section
