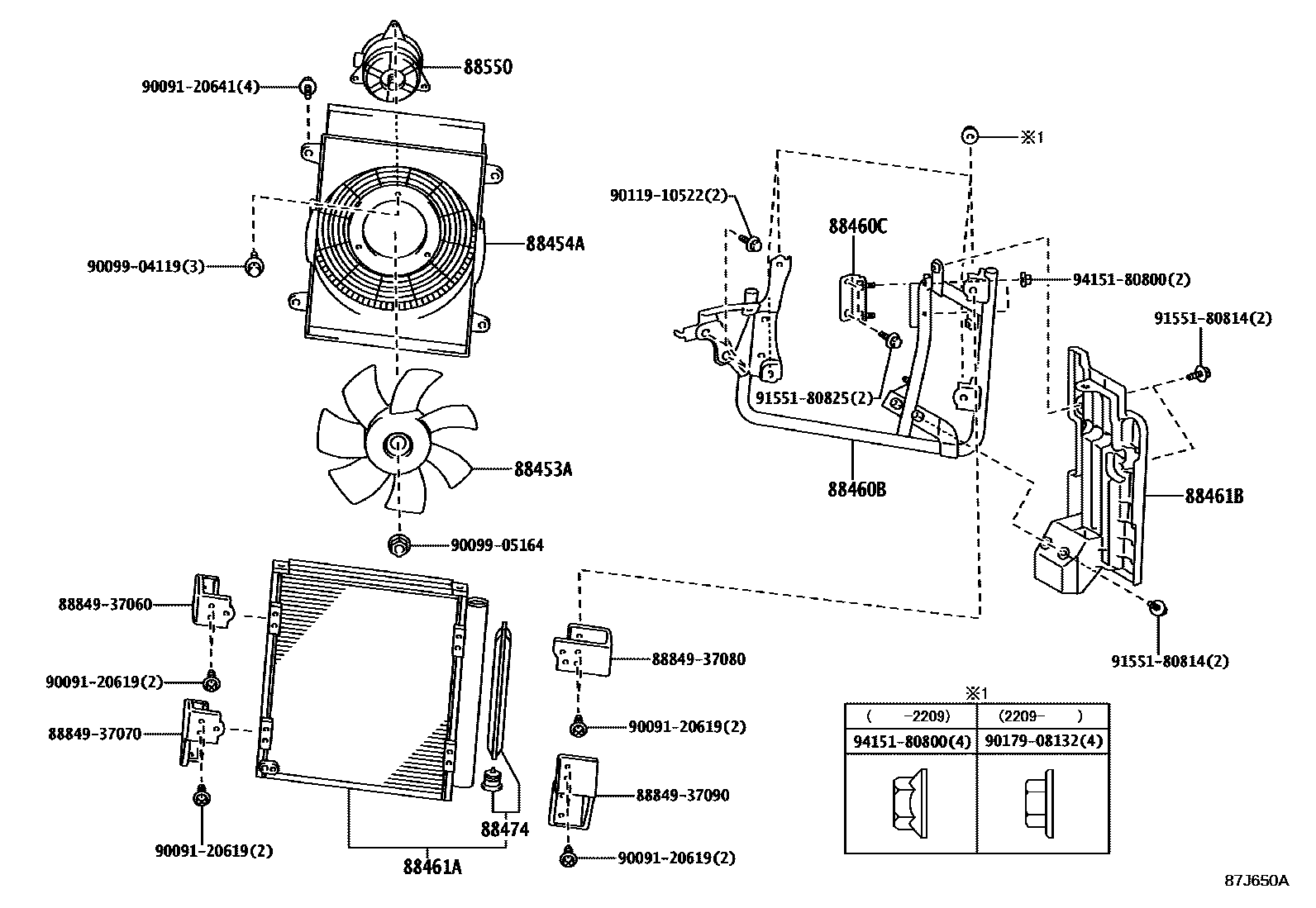

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ & ������ 0002 1������ & ������ 0003 1������� 0004 1������� ��(�����) 0005 1������� 0006 1������� 0007 1�������(�����)

88453AFAN, COOLING

main88453-37030iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88454ASHROUD, FAN

main88454-37180iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88460BBRACKET, COOLER CONDENSER, NO.1

main85924-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88460CBRACKET, COOLER CONDENSER, NO.2

main85924-37030iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88461ACORE, COOLER CONDENSER

main88461-37270iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88461BCOVER, COOLER CONDENSER

main53716-37310iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88474DRYER, COOLER

main88474-12010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-37140iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

8884937060BRACKET, COOLER COMPRESSOR, NO.2

main88849-37060

8884937070BRACKET, COOLER COMPRESSOR, NO.2

main88849-37070

8884937080BRACKET, COOLER COMPRESSOR, NO.2

main88849-37080

8884937090BRACKET, COOLER COMPRESSOR, NO.2

main88849-37090

9009120619

main90091-20619

9009120641

main90091-20641

9009904119

main90099-04119

9009905164

main90099-05164

9011910522

main90119-10522

9017908132

main90179-08132

9155180814

main91551-80814

9155180825

main91551-80825

9415180800

main94151-80800

21 parts on this diagram · 7 diagrams in section
