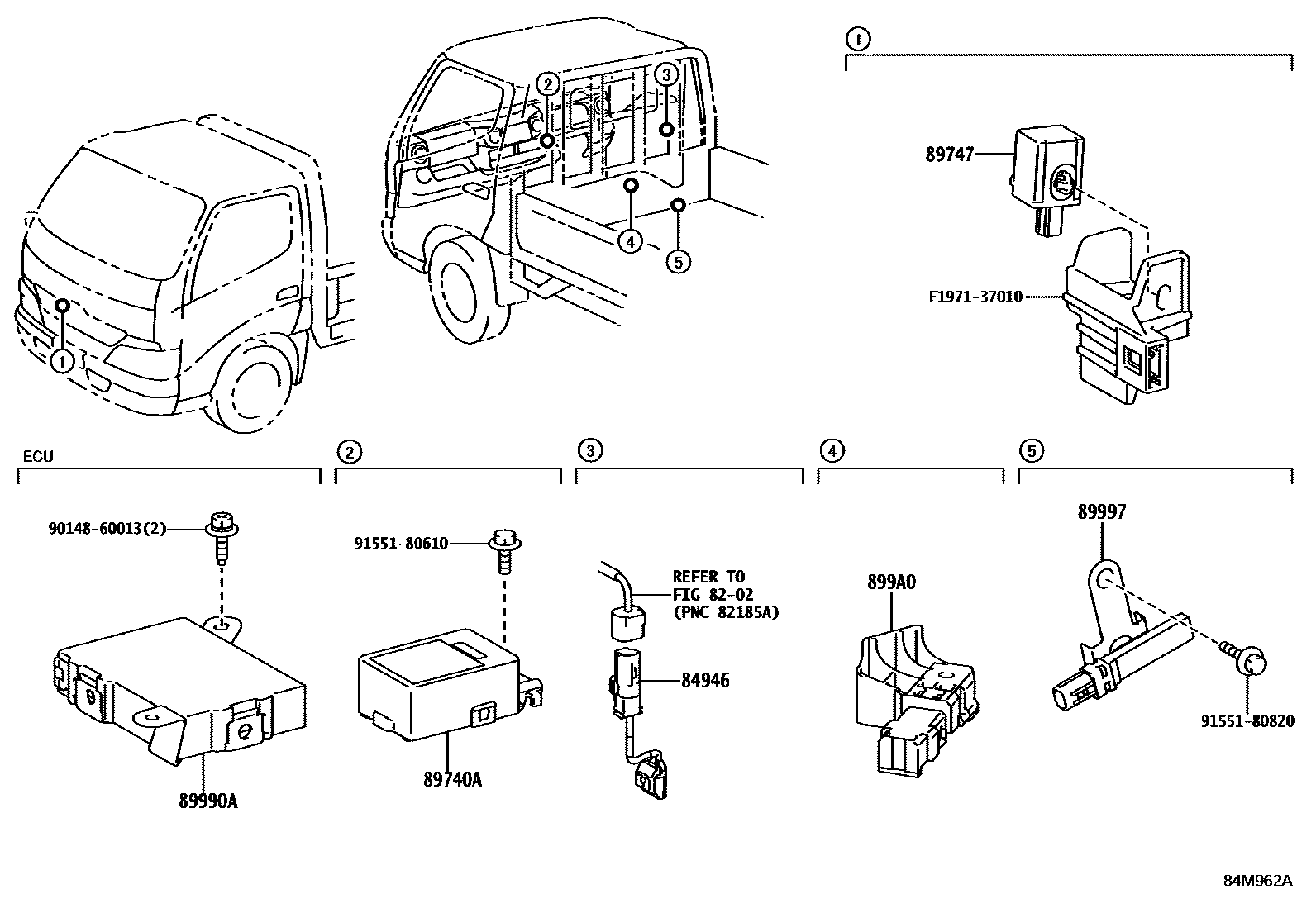

WIRELESS DOOR LOCK
8202WIRING & CLAMP
84946SWITCH, DOOR ELECTRICAL KEY
main84946-37010iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202103
89740ARECEIVER ASSY, SMART DOOR CONTROL
main89740-37010iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103-202309
main89740-37020iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202310
89747BUZZER, WIRELESS DOOR LOCK
main89747-37010iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202103
89990ACOMPUTER ASSY, SMART KEY
main89990-37011iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202103
main89990-37031iXZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103
main89990-37050iXZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103
89997ANTENNA, ELECTRICAL KEY
main89997-37020iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
main899A0-37010iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103
9014860013
main90148-60013
9155180610
main91551-80610
9155180820
main91551-80820
F197137010COVER, ECU WATER PROOF
mainF1971-37010
11 parts on this diagram · 2 diagrams in section
