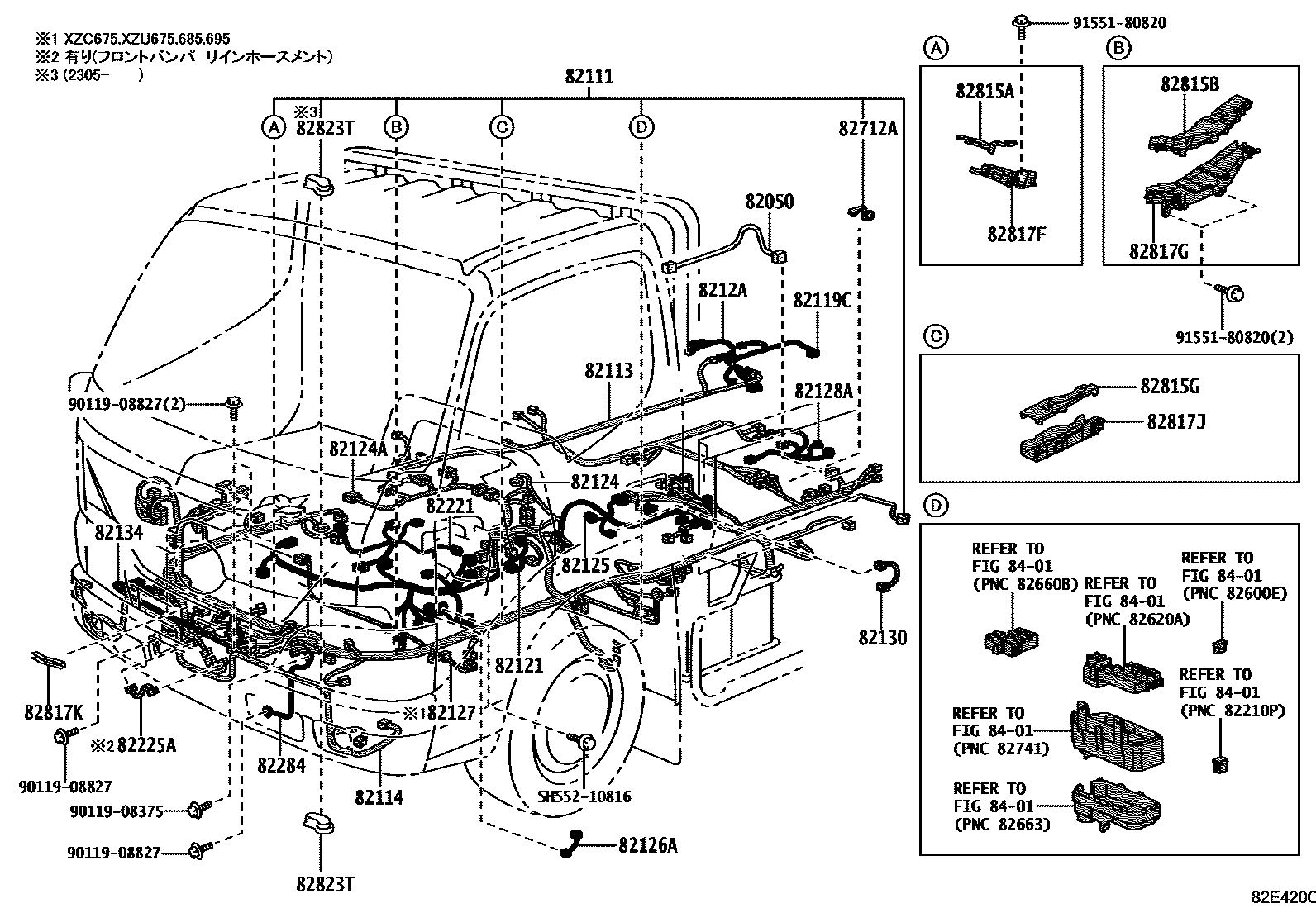

WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1������������ & ��� 0004 1����� 0005 1����� 0006 1����� & ������ 0007 1����� & ������ 0008 1���� 1/2 0009 1���� 2/2

82050WIRE ASSY, ENGINE

main82050-37010iXZC600,630,XZU600,630,642,675..IV3;XZU600,675..(T3,T4)..(5F,6FC)..(20T,30T)..(CBU,IV6);XZC605,645,655,675,XZU605,640,645,65#,685,695..CBU,IV3; XZU600..6F..IV6;XZU600..6FC..(20T,40T)..IV6;XZU602,605,640,642,650,652,685..IV5,IV6; XZU600..6FC..IV4;XZU600..6F..(IV4,IV6,IV7);XZU600..6FC..(20T,40T)..IV6;XZU602,605,640,642,650,652,685..IV4,IV5,IV6; XZU605..IV5202103

82111WIRE, ENGINE ROOM MAIN

main82115-3V880iXZU605..6F..30T..IV3;XZU605..T5..6F..20T..IV3;XZU605..SCB..T4..6F..20T..CBU; XZU605..T5..6F..20T..IV3; XZU605..T5..6F..20T..IV3;XZU605..SCB..T4..6F..20T..CBU; XZU640..T4; XZU640..T4;XZU655..6F..30T..IV3;XZU640,645,655..SCB..(T3,T4)..6F..CBU;XZU650,652..6F..(20T,30T,35T)..(CBU,IV3); XZU650..40T..CBU; XZU650..T3..6F..20T..IV3202103-202203

main82115-3V881iXZU605..6F..30T..IV3;XZU605..T5..6F..20T..IV3;XZU605..SCB..T4..6F..20T..CBU; XZU605..T5..6F..20T..IV3; XZU605..T5..6F..20T..IV3;XZU605..SCB..T4..6F..20T..CBU; XZU640..T4; XZU640..T4;XZU655..6F..30T..IV3;XZU640,645,655..SCB..(T3,T4)..6F..CBU;XZU650,652..6F..(20T,30T,35T)..(CBU,IV3); XZU650..40T..CBU; XZU650..T3..6F..20T..IV3202204-202310

main82115-3VA10iXZU640,642,650,652..6F..IV6202103-202203

main82115-3VA11iXZU640,642,650,652..6F..IV6202204-202310

main82115-3VA20iXZU60#..6F..IV6; XZU640,642..6F..IV6202103-202203

main82115-3VA21iXZU60#..6F..IV6; XZU640,642..6F..IV6202204-202310

main82115-3VA30iXZU600,602..6FC..IV6; XZU605..SCB..T4..6FC..20T..IV3; XZU642..6FC202103-202203

main82115-3VA31iXZU600,602..6FC..IV6; XZU605..SCB..T4..6FC..20T..IV3; XZU642..6FC202204-202310

main82115-3VC20iXZU605..6F..IV5202310

main82115-3VC30iXZC60#,645,655,XZU600,605,640,645,65#..SCB..6FC..(CBU,IV3)202310

main82115-3VC40iXZU605..6FC..IV5202310

main82115-3VC50iXZU605..6F..30T..IV3;XZU605..T5..6F..20T..IV3;XZU605..SCB..T4..6F..20T..CBU; XZU605..T5..6F..20T..IV3; XZU605..T5..6F..20T..IV3;XZU605..SCB..T4..6F..20T..CBU; XZU640..T4; XZU640..T4;XZU655..6F..30T..IV3;XZU640,645,655..SCB..(T3,T4)..6F..CBU;XZU650,652..6F..(20T,30T,35T)..(CBU,IV3); XZU650..40T..CBU; XZU650..T3..6F..20T..IV3202310

main82115-3VD20iXZU600..IV7202310

main82115-3VD30iXZC630,XZU630202310

main82115-3VD40supersedes 82115-3VC90iXZU60#,650,652..6F..IV6; XZU640,642..6F..IV6202310

main82115-3VD50supersedes 82115-3VD00iXZU600,602,652..6FC..IV6; XZU605..SCB..T4..6FC..20T..IV3; XZU642..6FC202310

main82115-3VD60iXZC675,XZU675,685,695..SCB..(T3,T4)..(CBU,IV3)202310

main82115-3VD70iXZU675..T4..IV3; XZU685..IV6202310

main82115-3VD80iXZC675,XZU675..DM5202310

main82115-3VD90iXZU605..DCB..6F202310

main82115-3VE00iXZU655..DCB202310

main82115-3VE10iXZU605..DCB..6FC202310

main82115-3VE20iXZU685..T3..20T202310

main82115-3VE30iXZU695..T3..20T202310

main82116-37V60iXZC605,XZU605,655..T2..6F202310

main82116-37X10iXZC605,XZU605,655..T2..6F202103-202203

main82116-37X11iXZC605,XZU605,655..T2..6F202204-202310

main82116-37X20iXZU605..6F..IV5202103-202203

main82116-37X21iXZU605..6F..IV5202204-202310

main82116-37X30iXZC60#,645,655,XZU600,605,640,645,65#..SCB..6FC..(CBU,IV3)202103-202203

main82116-37X31iXZC60#,645,655,XZU600,605,640,645,65#..SCB..6FC..(CBU,IV3)202204-202310

main82116-37X40iXZU605..6FC..IV5202103-202203

main82116-37X41iXZU605..6FC..IV5202204-202310

main82116-37X60iXZU642,652..6FC..IV6202103-202203

main82116-37X61iXZU642,652..6FC..IV6202204-202310

main82116-37X80iXZU600..IV7202103-202203

main82116-37X81iXZU600..IV7202204-202310

main82116-37X90iXZC630,XZU630202103-202203

main82116-37X91iXZC630,XZU630202204-202310

main82116-37Y00iXZC675,XZU675,685,695..SCB..(T3,T4)..(CBU,IV3)202103-202203

main82116-37Y01iXZC675,XZU675,685,695..SCB..(T3,T4)..(CBU,IV3)202204-202310

main82116-37Y10iXZU675..T4..IV3; XZU685..IV6202103-202203

main82116-37Y11iXZU675..T4..IV3; XZU685..IV6202204-202310

main82116-37Y20iXZC675,XZU675..DM5202103-202203

main82116-37Y21iXZC675,XZU675..DM5202204-202310

main82116-37Y30iXZU605..DCB..6F202103-202109

main82116-37Y31iXZU605..DCB..6F202110-202203

main82116-37Y32iXZU605..DCB..6F202204-202310

main82116-37Y40iXZU655..DCB202103-202109

main82116-37Y41iXZU655..DCB202110-202203

main82116-37Y42iXZU655..DCB202204-202310

main82116-37Y50iXZU605..DCB..6FC202103-202109

main82116-37Y51iXZU605..DCB..6FC202110-202203

main82116-37Y52iXZU605..DCB..6FC202204-202310

main82116-37Y60iXZU685..T3..20T202103-202109

main82116-37Y61iXZU685..T3..20T202110-202203

main82116-37Y62iXZU685..T3..20T202204-202310

main82116-37Y70iXZU695..T3..20T202103-202109

main82116-37Y71iXZU695..T3..20T202110-202203

main82116-37Y72iXZU695..T3..20T202204-202310

main82115-3V890iXZU640..IV6202103-202203

main82115-3V891iXZU640..IV6202204-202310

main82115-3VA00supersedes 82115-3VD00iXZU642..6FC202103-202203

main82115-3VA01supersedes 82115-3VD00iXZU642..6FC202204-202310

main82115-3VC60iXZU605..6FC..30T..IV3;XZU605..T5..6FC..20T..IV3;XZU605..SCB..T4..6FC..20T..CBU; XZU645..6FC..CBU;XZU655..6FC..30T;XZU640,650,652..6FC..(CBU,IV3);XZU655..(T3,T4)..6FC..20T..CBU202310

main82115-3VC70iXZU600..6F..20T..IV6; XZU640..IV6202310

main82115-3VC80supersedes 82115-3VD00iXZU600..6FC..20T..IV6; XZU642..6FC202310

main82115-3VC90iXZU640,642..6F..IV6; XZU650,652..6F..IV6202310

main82115-3VD00iXZU642..6FC; XZU652..6FC..IV6202310

main82115-3VE40supersedes 82116-37Y91iXZU600,640..6F..IV4202310

main82115-3VE60supersedes 82116-37Z11iXZU600,640..6FC..IV4202310

main82116-37J00iXZU600,640,645..T3..6F..IV3; XZU600..DM5..6F..IV3; XZU605..T5..6F..20T..IV3;XZU640,645,650..6F..(30T,40T)..IV3; XZU640,645..T3..6F..IV3; XZU642..IV3; XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC60#,645,655,XZU600,605,640,645,652,655..SCB..(DM3,DM5,T3,T4,T5)..6F..(CBU,IV3); XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC605,645,655,XZU600,605,640,645,652,655..SCB..(T3,T4,T5)..6F..(CBU,IV3); XZU650..T3..6F..20T..IV3; XZU655..6F..30T..IV3;XZU605..T5..6F..20T..IV3;XZU600,640..(DM5,T4)..6F..IV3;XZU650,652..6F..(20T,30T,35T)..(CBU,IV3);XZC605,645,655,XZU605,640,645,655..SCB..(T3,T4,T5)..6F..CBU202103-202203

main82116-37J01iXZU600,640,645..T3..6F..IV3; XZU600..DM5..6F..IV3; XZU605..T5..6F..20T..IV3;XZU640,645,650..6F..(30T,40T)..IV3; XZU640,645..T3..6F..IV3; XZU642..IV3; XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC60#,645,655,XZU600,605,640,645,652,655..SCB..(DM3,DM5,T3,T4,T5)..6F..(CBU,IV3); XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC605,645,655,XZU600,605,640,645,652,655..SCB..(T3,T4,T5)..6F..(CBU,IV3); XZU650..T3..6F..20T..IV3; XZU655..6F..30T..IV3;XZU605..T5..6F..20T..IV3;XZU600,640..(DM5,T4)..6F..IV3;XZU650,652..6F..(20T,30T,35T)..(CBU,IV3);XZC605,645,655,XZU605,640,645,655..SCB..(T3,T4,T5)..6F..CBU202204-202310

main82116-37V40iXZU600,640,645..T3..6F..IV3; XZU600..DM5..6F..IV3; XZU605..T5..6F..20T..IV3;XZU640,645,650..6F..(30T,40T)..IV3; XZU640,645..T3..6F..IV3; XZU642..IV3; XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC60#,645,655,XZU600,605,640,645,652,655..SCB..(DM3,DM5,T3,T4,T5)..6F..(CBU,IV3); XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC605,645,655,XZU600,605,640,645,652,655..SCB..(T3,T4,T5)..6F..(CBU,IV3); XZU650..T3..6F..20T..IV3; XZU655..6F..30T..IV3;XZU605..T5..6F..20T..IV3;XZU600,640..(DM5,T4)..6F..IV3;XZU650,652..6F..(20T,30T,35T)..(CBU,IV3);XZC605,645,655,XZU605,640,645,655..SCB..(T3,T4,T5)..6F..CBU202310

main82116-37V50supersedes 82116-37V40iXZU642..IV3; XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC60#,645,655,XZU600,605,640,645,652,655..SCB..(DM3,DM5,T3,T4,T5)..6F..(CBU,IV3)202310

main82116-37X00supersedes 82116-37V40iXZU642..IV3; XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC60#,645,655,XZU600,605,640,645,652,655..SCB..(DM3,DM5,T3,T4,T5)..6F..(CBU,IV3)202103-202203

main82116-37X01supersedes 82116-37V40iXZU642..IV3; XZU650..6F..IV3;XZU650..6F..(20T,30T)..CBU;XZC60#,645,655,XZU600,605,640,645,652,655..SCB..(DM3,DM5,T3,T4,T5)..6F..(CBU,IV3)202204-202310

main82116-37X50iXZU605..6FC..30T..IV3;XZU605..T5..6FC..20T..IV3;XZU605..SCB..T4..6FC..20T..CBU; XZU645..6FC..CBU;XZU655..6FC..30T;XZU640,650,652..6FC..(CBU,IV3);XZU655..(T3,T4)..6FC..20T..CBU202103-202203

main82116-37X51iXZU605..6FC..30T..IV3;XZU605..T5..6FC..20T..IV3;XZU605..SCB..T4..6FC..20T..CBU; XZU645..6FC..CBU;XZU655..6FC..30T;XZU640,650,652..6FC..(CBU,IV3);XZU655..(T3,T4)..6FC..20T..CBU202204-202310

main82116-37Y80supersedes 82116-37Y91iXZU600,640..6F..IV4202103-202203

main82116-37Y81supersedes 82116-37Y91iXZU600,640..6F..IV4202204-202310

main82116-37Z00supersedes 82116-37Z11iXZU600,640..6FC..IV4202103-202203

main82116-37Z01supersedes 82116-37Z11iXZU600,640..6FC..IV4202204-202310

main82116-37Z20supersedes 82116-37Z31iXZU685..IV4202103-202203

main82116-37Z21supersedes 82116-37Z31iXZU685..IV4202204-202310

82113WIRE, ENGINE ROOM, NO.3

main82113-37N50iXZC60#,XZU600,605..SCB..(CBU,IV3,IV7)202103

main82113-37N60iXZU642..6FC;XZC645,XZU640,645..CBU,IV3; XZU642..IV3; XZU645..T3..IV3;XZU640,642..SCB..6FC202103

main82113-37N70iXZU640..IV6;XZU642..6FC;XZU642..IV3; XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3)202103

main82113-37N90iXZU605..IV5202103

main82113-37P10iXZU640,642,650..40T..(CBU,IV6); XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3)202103

main82113-37P40iXZC630,XZU630202103

main82113-37P50iXZC675,XZU675,685,695..SCB202103

main82113-37P60iXZU605..DCB202103

main82113-37P70iXZU655..DCB202103

main82113-37P80iXZU685,695..T3..20T202103

main82113-37P90iXZU600..6F..IV4202103

main82113-37Q00iXZU600..6FC..IV4202103

main82113-37Q10iXZU640..6F..IV4202103

main82113-37Q20iXZU640..6FC..IV4202103

main82113-37Q30iXZU685..IV4202103

main82113-37V40iXZU60#..IV6; XZU605..SCB..T4..6FC..20T..IV3202103

main82113-37M10iXZU640,642..IV6202103

main82113-37N80iXZU600..20T..IV6202310

main82113-37P00iXZU605..30T..IV3;XZU605..T5..20T..IV3;XZU605..SCB..T4..20T..CBU202103

82114WIRE, ENGINE ROOM, NO.4

main82114-37150iXZU600,640,685..IV4202103

main82114-37190iXZU600,640,685..IV4202103

main82114-37270supersedes 82114-37290iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82119CWIRE, ENGINE ROOM, NO.5

main82119-37040iXZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main82119-37050iXZU600,605,640,655..DCB202103

main82119-37060iXZC675,XZU675,685,695202103

82121WIRE, ENGINE

main82121-37L90iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82124WIRE, ENGINE, NO.4

main82121-37K70supersedes 82121-37K60iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

main82121-37K90supersedes 82121-37K80iXZU600,640,685..IV4,IV7202103

82124AWIRE, ENGINE, NO.5

main82121-37L50iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82125WIRE, TRANSMISSION

main82125-37462iXZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)202103

main82125-37472iXZU600,640..6FC..IV4202103

main82125-37630iXZC60#,630,645,655,XZU60#,630,64#,65#..6F202103

main82125-37640iXZC675,XZU675,685,695202103

82126AWIRE, ENGINE, NO.6

main82121-37M00iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82127WIRE, DIFFERENTIAL

main82127-37011iXZC675,XZU675,685,695202103

82128AWIRE, ENGINE, NO.8

main82128-37010iXZC60#,630,645,655,XZU60#,630,64#,65#202103

main82128-37020iXZC675,XZU675,685,695202103

8212AWIRE, ENGINE, NO.9

main8212A-37010iXZC675,XZU675,685,695;XZU600,605,640,655..DCB202103

82130HARNESS ASSY, CHASSIS WIRE

main82130-37020iXZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3); XZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3); XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC; XZU652..6FC..(CBU,IV3)202103

82134WIRE, COWL, NO.4

main82134-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202310

main82134-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

82221WIRE, OIL PRESSURE SWITCH

main82221-37211iXZC60#,630,645,655,XZU60#,630,64#,65#202103

main82221-37270iXZC675,XZU675,685,695202103

82225AWIRE, LAMP, NO.2

main82225-37010iXZU600,640,650..(35T,40T)..IV6; XZU650..40T202103

82284WIRE, EARTH

main82284-37230iXZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7202103

main82284-37250iXZU600,640,685,695..DCB202103

82712ASUPPORT, WIRING HARNESS

main82712-37560×2iXZC60#,645,655,675,XZU60#,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7; XZU600,640,685..IV4202103

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-37130iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-37150iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-37170iXZC60#,645,655,XZU60#,64#,65#202103

main82815-37180iXZC675,XZU675,685,695202103

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12400iXZU600,605,640,655,685,695..DCB202103

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-37500iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-37510iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-37520iXZC60#,645,655,XZU60#,64#,65#202103

main82817-37530iXZC675,XZU675,685,695202103

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-37550iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202201-202207

main82817-37580iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202208

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202310

main82823-22070iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908375

main90119-08375

9011908827

main90119-08827

9155180820

main91551-80820

SH55210816

mainSH552-10816

33 parts on this diagram · 9 diagrams in section
