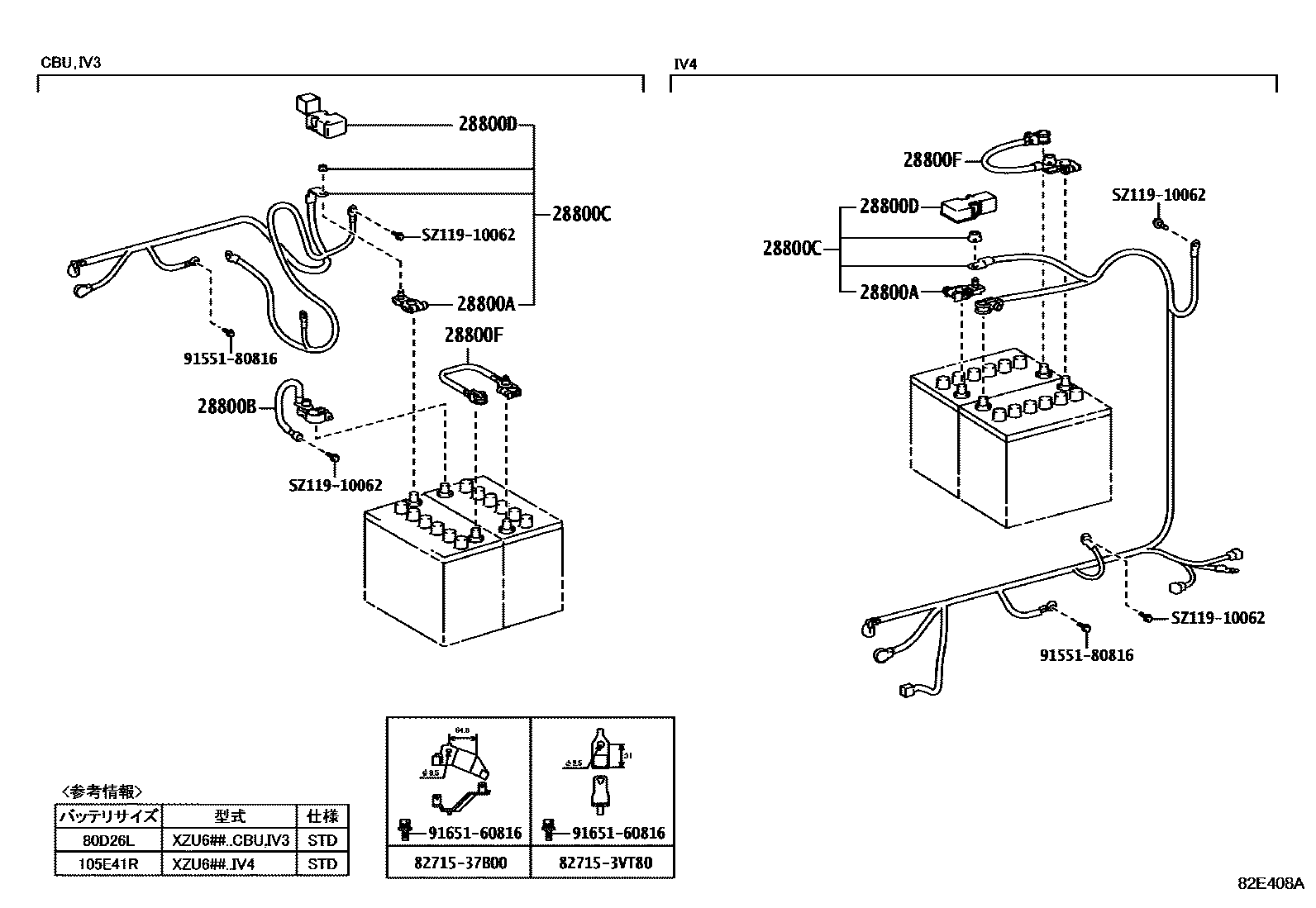

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05062iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28800BCABLE, BATTERY TO GROUND

main82286-37090iN04C..XZU605,655..DCB;N04C..XZU650..40T..CBU;N04C..XZU675,685,695..CBU,IV3,IV6;N04C..XZC675,XZU640,642..(DM5,T3,T4)..(20T,40T); N04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640,642..IV6; N04C..XZU640..IV6;N04C..XZU642..6FC; N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3); N04C..XZU642..6FC202103

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-37G80iN04C..XZU640,642..IV6; N04C..XZU640..IV6;N04C..XZU642..6FC; N04C..XZU642..6FC; N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZU640,642,652..CBU,IV3;N04C..XZC60#,645,655,XZU60#,645,655..SCB..(CBU,IV3,IV5,IV6)202103

main82122-37K20iN04C..XZU605..30T..IV3;N04C..XZU605..T5..20T..IV3;N04C..XZU605..SCB..T4..20T..CBU; N04C..XZU640,642,650..40T..(CBU,IV6); N04C..XZU640..T4;N04C..XZU640..6FC..IV3;N04C..XZU655..30T..IV3;N04C..XZU640,645,655..SCB..(T3,T4)..CBU;N04C..XZU650,652..(20T,30T,35T)..(CBU,IV3)202103

main82122-37K40iN04C..XZC630,XZU630202103

main82122-37K50iN04C..XZU600..IV7202103

main82122-37L70iN04C..XZU605,655..DCB202103

main82122-37L80iN04C..XZU600,640..IV4202103

main82122-37L91iN04C..XZC675,XZU675,685,695..SCB..(T3,T4)202103

main82122-37M01iN04C..XZC675,XZU675..DM5202103

main82122-37M11iN04C..XZU685,695..T3..20T202103

main82122-37M20iN04C..XZU685..IV4202103

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28800FCABLE, BATTERY TO BATTERY

main82123-37260iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

8271537B00BRACKET,WIRING HARNESS CLAMP

main82715-37B00

827153VT80BRACKET,WIRING HARNESS CLAMP

main82715-3VT80

9155180816

main91551-80816

9165160816

main91651-60816

SZ11910062

mainSZ119-10062

10 parts on this diagram · 2 diagrams in section
