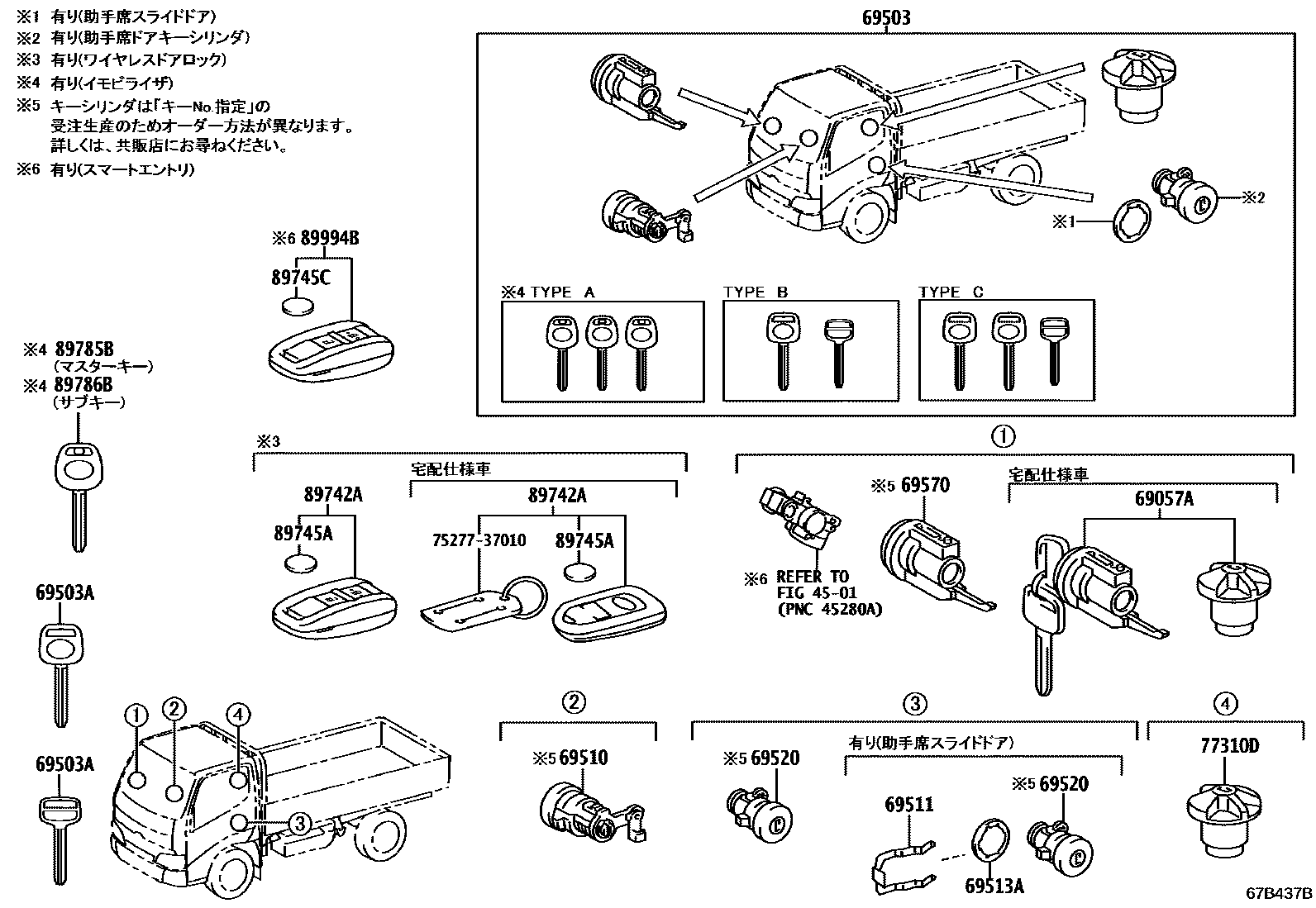

LOCK CYLINDER SET

0001 1DYNA 0002 1DUTRO

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-25160supersedes 69057-37340iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7; XZU605..IV5202310

main69057-37310supersedes 69057-37340iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202103-202310

main69057-37320iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7; XZU605..IV5202103-202310

main69057-37330supersedes 69057-37340iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202103-202310

main69057-37340iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202310

main69057-37350supersedes 69057-37340iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202310

69503CYLINDER SET, LOCK

main69005-25180supersedes 69005-37L80iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7202310

main69005-37D11supersedes 69005-37L80iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7202103-202310

main69005-37K80iXZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..DCB..IV3;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3202103-202310

main69005-37K90iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3202103

main69005-37L00iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

main69005-37L10iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3202103

main69005-37L20iXZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

main69005-37L30iXZU600,605,640,655,685,695..DCB; XZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3; XZU675..T4..IV3202103-202310

main69005-37L40iXZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU655..SCB..T4..IV3;XZU645,650..T4..20T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6F..30T..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC605,675,XZU605,685,695..SCB..(T4,T5)..(5F,6FC)..20T..IV3; XZU675..T4..IV3202103-202310

main69005-37L50iXZU600,605,640,655,685,695..DCB; XZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3; XZU675..T4..IV3202103-202310

main69005-37L60iXZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU655..SCB..T4..IV3;XZU645,650..T4..20T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6F..30T..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC605,675,XZU605,685,695..SCB..(T4,T5)..(5F,6FC)..20T..IV3; XZU675..T4..IV3202103-202310

main69005-37L70iXZU650..6FC..30T;XZU650..6F..20T..IV3;XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZU655..T4..6FC..20T..IV3;XZC655,XZU605..SCB..(T4,T5)..20T..IV3; XZU655..DCB..IV3202103-202310

main69005-37L90supersedes 69005-37N50iXZU605..IV5202103-202310

main69005-37M00iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202103-202310

main69005-37M10supersedes 69005-37N50iXZU605..IV5202103-202310

main69005-37M20supersedes 69005-37N50iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202103-202310

main69005-37N40supersedes 69005-37N50iXZU605..IV5202310

main69005-37N50iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202310

main69005-37N60iXZU600,605,640,655,685,695..DCB; XZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3; XZU675..T4..IV3202310

main69005-37N70iXZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU655..SCB..T4..IV3;XZU645,650..T4..20T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6F..30T..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC605,675,XZU605,685,695..SCB..(T4,T5)..(5F,6FC)..20T..IV3; XZU675..T4..IV3202310

main69005-37N80supersedes 69005-37N50iXZU605..IV5202310

main69005-37N90supersedes 69005-37N50iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202310

main69005-37P00iXZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..DCB..IV3;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3202310

main69005-37P10iXZU650..6FC..30T;XZU650..6F..20T..IV3;XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZU655..T4..6FC..20T..IV3;XZC655,XZU605..SCB..(T4,T5)..20T..IV3; XZU655..DCB..IV3202310

main69005-37P20iXZU600,605,640,655,685,695..DCB; XZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3; XZU675..T4..IV3202310

main69005-37P30iXZU605..SCB..T4..6FC..20T..IV3; XZU642;XZU60#,640,650,652,685..IV6; XZU655..SCB..T4..IV3;XZU645,650..T4..20T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6F..30T..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC605,675,XZU605,685,695..SCB..(T4,T5)..(5F,6FC)..20T..IV3; XZU675..T4..IV3202310

69503AKEY, BLANK

main90999-00185iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

main90999-00186iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

main90999-00224iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

main90999-00225iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iXZU605..IV5202103

69513APAD, DOOR CYLINDER

main69513-32010iXZU605..IV5202103

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main69520-37050iXZU605..IV5202103

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-37070iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7; XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV7); XZU605..IV5; XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZU650,655..T3..6F..(30T,40T)..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..IV3;XZC675,XZU645,652,685,695..SCB..(T3,T4)..(20T,35T)..IV3202103-202310

77310DCAP ASSY, FUEL TANK

main77310-25060iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89742ATRANSMITTER, DOOR CONTROL

main89742-37080iXZU60#,640,650,652,685..IV6;XZU605..SCB..T4..6FC..20T..IV3;XZU642,675..(DM7,T3,T4)..(IV3,IV6); XZU600,605,640,655,685,695..DCB202103

main89742-37090iXZU60#,640,650,652,685..IV6;XZU605..SCB..T4..6FC..20T..IV3;XZU642,675..(DM7,T3,T4)..(IV3,IV6); XZU600,605,640,655,685,695..DCB202103-202203

main89742-37091iXZU60#,640,650,652,685..IV6;XZU605..SCB..T4..6FC..20T..IV3;XZU642,675..(DM7,T3,T4)..(IV3,IV6); XZU600,605,640,655,685,695..DCB202204

main89742-37110iXZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3202103

main89742-37120iXZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3202103

89745ABATTERY, TRANSMITTER

main89745-50020iXZU60#,640,650,652,685..IV6;XZU605..SCB..T4..6FC..20T..IV3;XZU642,675..(DM7,T3,T4)..(IV3,IV6); XZU600,605,640,655,685,695..DCB; XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3202103

89745CBATTERY, TRANSMITTER

main89745-50020iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202103

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-37020supersedes 89785-60160iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202310

main89785-52030iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695; XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202310

main89785-60160iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695; XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202103-202310

main89785-E0040supersedes 89785-60160iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-25040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695; XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202310

main89786-37021supersedes 89786-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202310

main89786-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695; XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)202103-202310

main89786-E0040supersedes 89786-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

89994BTRANSMITTER, ELECTRICAL KEY

main89994-37010×2iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3; XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

main89994-37020×2iXZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7); XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3; XZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3202103

7527737010BAND, TOOL, NO.1

main75277-37010

17 parts on this diagram · 2 diagrams in section
