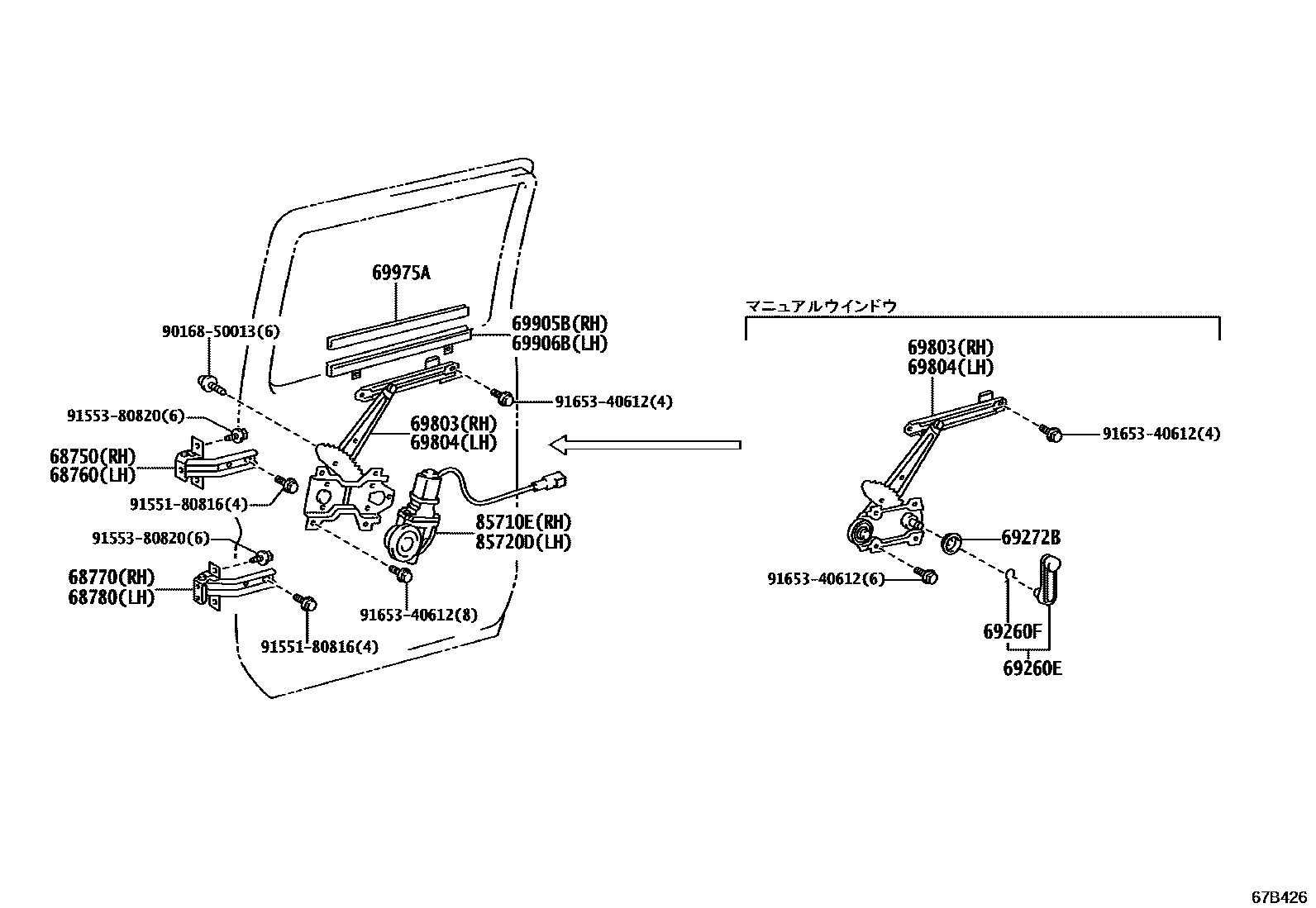

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-37010iXZU600,605,640,655,685,695..DCB202103

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-37010iXZU600,605,640,655,685,695..DCB202103

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-37012iXZU600,605,640,655,685,695..DCB202103

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-37012iXZU600,605,640,655,685,695..DCB202103

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-B5×2iXZU600,605,640,655,685,695..DCB202103

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iXZU600,605,640,655,685,695..DCB202103

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iXZU600,605,640,655,685,695..DCB202103

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-37020supersedes 69830-37010iXZU600,605,640,655,685,695..DCB202103

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-37020supersedes 69840-37010iXZU600,605,640,655,685,695..DCB202103

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-37010iXZU600,605,640,655,685,695..DCB202103

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-37010iXZU600,605,640,655,685,695..DCB202103

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-37010×2iXZU600,605,640,655,685,695..DCB202103

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-37060iXZU600,605,640,655,685,695..DCB202103

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-37050iXZU600,605,640,655,685,695..DCB202103

9016850013

main90168-50013

9155180816

main91551-80816

9155380820

main91553-80820

9165340612

main91653-40612

18 parts on this diagram · 1 diagram in section
