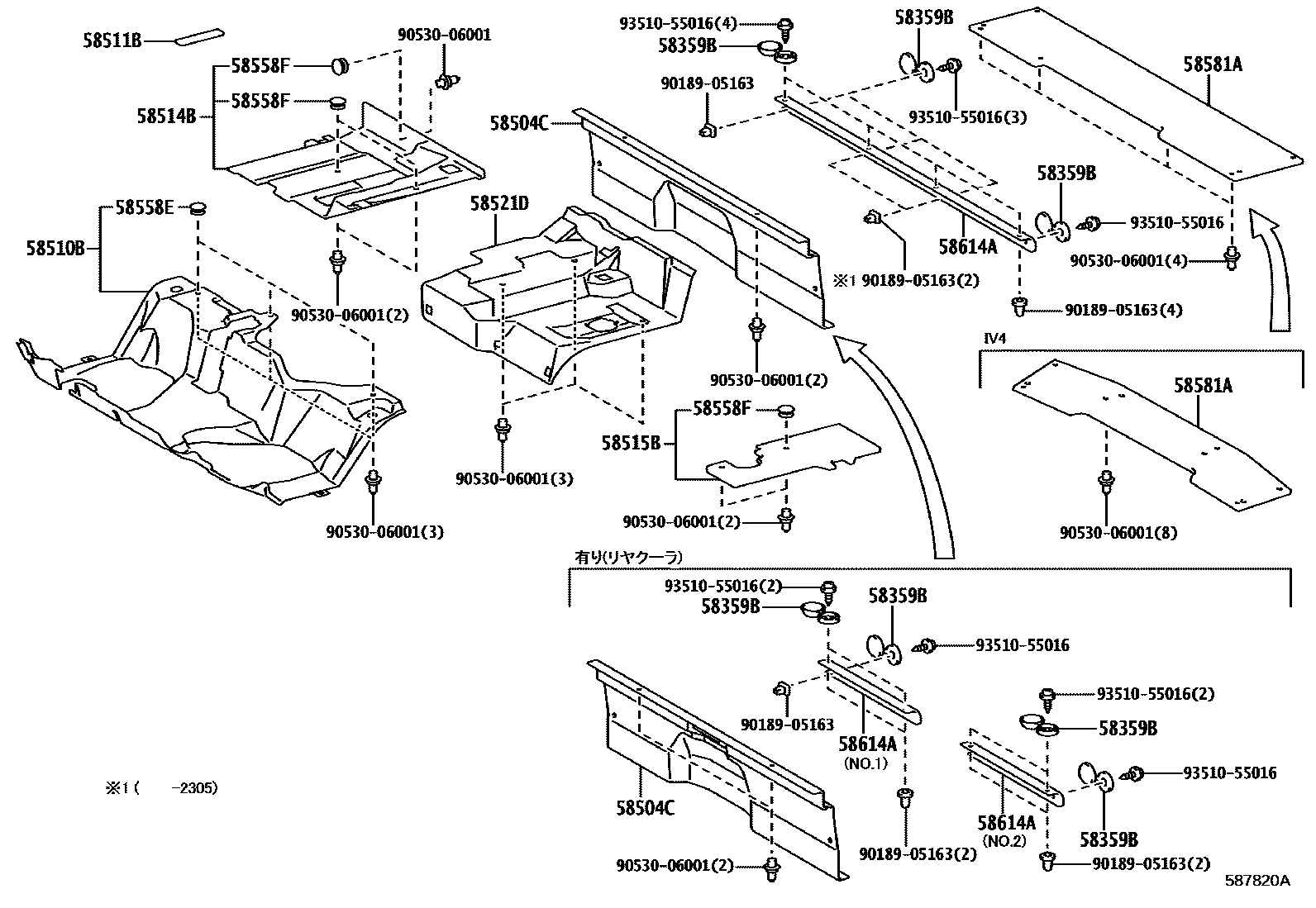

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58359BPROTECTOR, FLOOR TAPPING

main58359-37010×8iXZU600,605,640,655,685,695..DCB; XZU605,655..DCB202103

58504CMAT SUB-ASSY, HEADER

main58504-37301-B1iXZU605,655,685,695..DCB..20T202103-202310

GRAY,TRIM1#

main58504-37341-B1iXZU600,640,685..IV4202103

GRAY,TRIM1#

main58504-37390-B0iXZU605,655,685,695..DCB..20T202310

GRAY,TRIM1#

main58504-37310-B1iXZU605,655..DCB202103-202310

main58504-37331-B1iXZU685..IV4202103-202310

main58504-37400-B0iXZU605,655..DCB202310

58510BMAT, FRONT FLOOR, FRONT

main58510-37M60-B1iXZU600,605,640,655,685,695..DCB202103

GRAY,TRIM1#

main58510-37Q41-B0iXZC60#,630,645,655,XZU60#,630,64#,65#..SCB; XZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..(CBU,IV3)202103

main58510-37Q70-B0iXZC675,XZU675,685,695..SCB; XZC675,XZU675,685,695..SCB..(CBU,IV3)202103

main58510-37M02-B1iXZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3); XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7)202103

main58510-37M32-B1iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3); XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6)202103

main58510-37M40-B1iXZU685..IV6202103-202208

main58510-37M50-B1iXZU675..DM5..30T202310

main58510-37Q51-B0iXZU605..IV5202103

main58510-37Q61-B0iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main58510-37Q80-B0iXZU675..T4;XZC675,XZU685,695..SCB202103

main58510-37Q91-B0iXZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..(CBU,IV3)202103

main58510-37R01-B0iXZC675,XZU675,685,695..SCB..(CBU,IV3)202103

58511BMAT, FLOOR, FRONT SIDE

main58515-37080-C0iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

BLACK,TRIM1#

58514BMAT, FLOOR, REAR RH

main58514-37140-B1iXZU600,605,640,655,685,695..DCB202103

GRAY,TRIM1#

58515BMAT, FLOOR, REAR LH

main58515-37100-B1iXZU600,605,640,655,685,695..DCB202103

GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-37310-B1iXZU600,605,640,655,685,695..DCB202103

GRAY,TRIM1#

58558EFASTENER, PILE

main90530-04005-S6×3iXZC60#,630,645,655,XZU60#,630,64#,65#..SCB; XZC675,XZU675,685,695;XZU600,605,640,655..DCB; XZU605..IV5202103

main90530-04005-S3×6iXZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..(CBU,IV3); XZC675,XZU675,685,695..SCB..(CBU,IV3)202103

58558FFASTENER, PILE, UPR

main90530-04005-S6×4iXZC675,XZU675,685,695..SCB; XZC675,XZU675,685,695..SCB..(CBU,IV3); XZU600,605,640,655,685,695..DCB202103

58581AMAT, REAR FLOOR

main58581-37550-B1iXZU600,640,685..IV4202103

GRAY,TRIM1#

main58581-37520-B1supersedes 58581-37540-B1iXZU605,655,685,695..DCB..20T202103

main58581-37530-B1iXZU605,655..DCB202103

58614APLATE, MAT SET, NO.4

main58614-25021-B1iXZU600,640..IV4; XZU605,655,685,695..DCB..20T202103

main58614-37080-B1iXZU600,640,685..IV4202103

GRAY,TRIM1#

main58614-37021-B1iXZU605,655..DCB202103

main58614-37031-B1iXZU605,655..DCB202103

9018905163

main90189-05163

9053006001

main90530-06001

9351055016

main93510-55016

14 parts on this diagram · 2 diagrams in section
