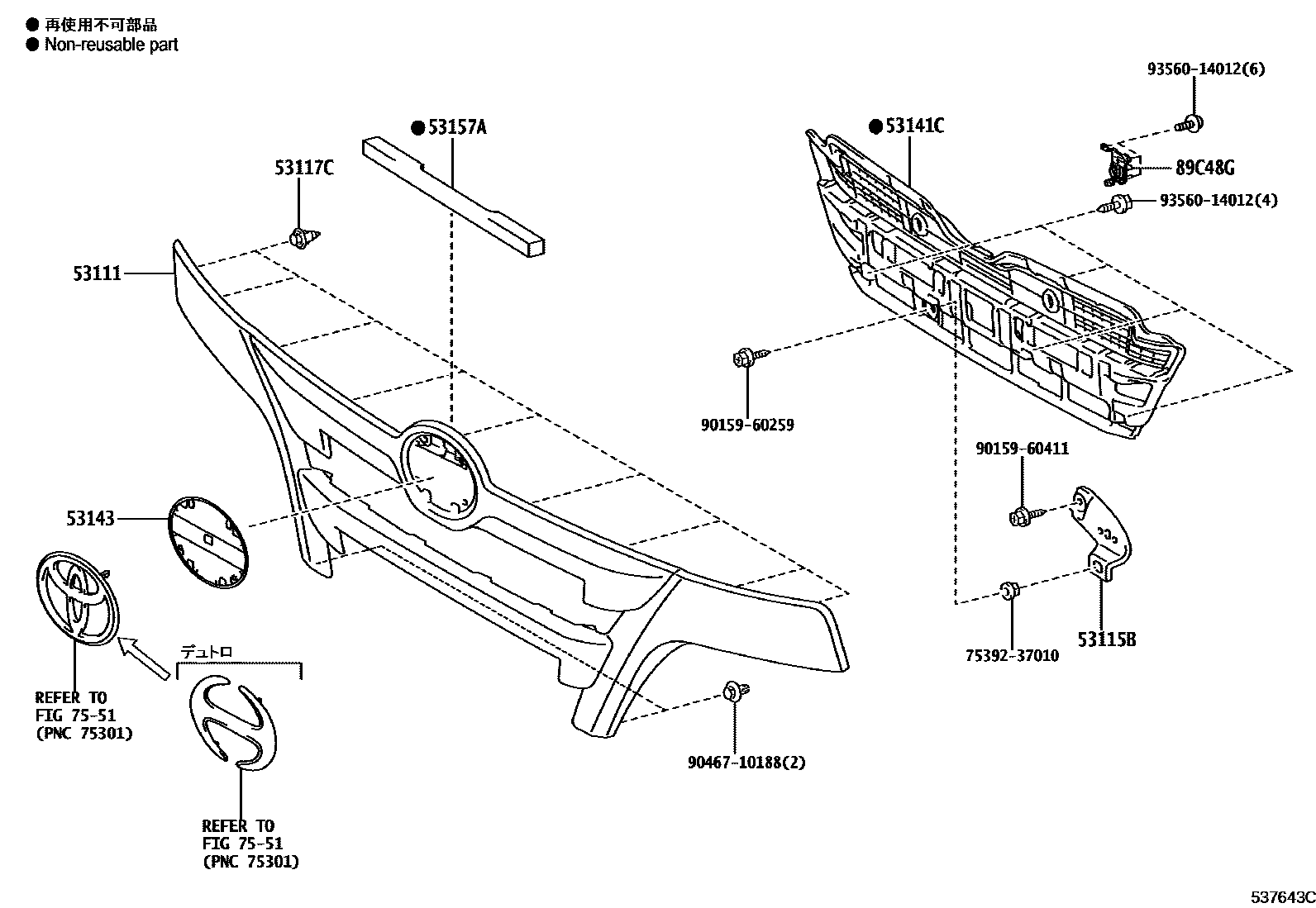

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-37A70-A0iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

WHITE,058

main53111-37A70-B1iXZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)202103

SILVER ME.,199

main53111-37A70-D0iXZU600,640,685..IV4;XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

RED,3L5

main53111-37A70-H0iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7202103

TURQUOISE,766

main53111-37A70-J0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

SEINOU BLUE,9E2

main53111-37A70-J1iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7202103

BLUE,8P0

main53111-37A70-K0iXZU600,640,685..IV4202105

MORITA FIRE RED,9L5

main53111-37A80iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

53115BBRACKET, RADIATOR GRILLE

main53115-37100iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

53117CRETAINER, RADIATOR GRILLE, NO.1

main67771-37040×9iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

53141CGARNISH, RADIATOR GRILLE

main53142-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

53143GARNISH, RADIATOR GRILLE, NO.3

main53143-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

53157ASEAL, RADIATOR GRILLE, NO.3

main53157-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-37031iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main89348-37041iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

7539237010RETAINER, OUTSIDE MOULDING

main75392-37010

9015960259

main90159-60259

9015960411

main90159-60411

9046710188

main90467-10188

9356014012

main93560-14012

13 parts on this diagram · 1 diagram in section
