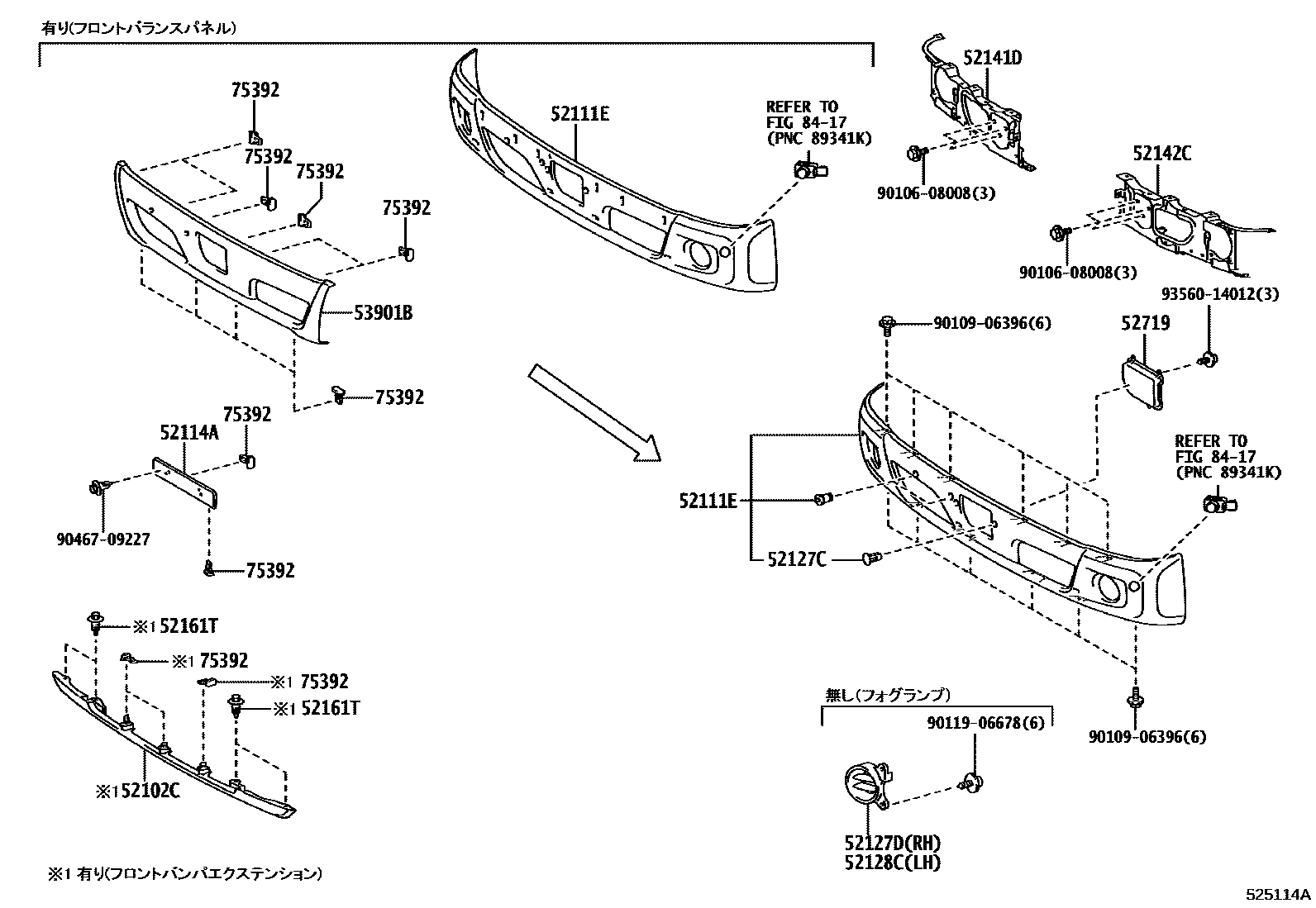

FRONT BUMPER & BUMPER STAY

0001 1 0002 1��(��������������) 0003 1�������������� 0004 1��������������

52102CEXTENSION SUB-ASSY, FRONT BUMPER

main52102-37060iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5); XZU650..40T202103

52111EBAR, FRONT BUMPER

main52110-3VV60iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VV70iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZC675,XZU675,685,695..CBU,IV3,IV6202103

main52110-3VV80-A0supersedes 52110-3VW10-A0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VV80-D0supersedes 52110-3VW10-D0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VV80-K0supersedes 52110-3VW10-K0iXZU600,640..IV4; XZU685..IV4202105-202305

main52110-3VV90-A0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VV90-B1supersedes 52110-3VV80-B1iXZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5)202103

main52110-3VV90-D0supersedes 52110-3VW10-D0iXZU600,640..IV4; XZU685..IV4202310

main52110-3VV90-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VV90-H0supersedes 52110-3VV80-H0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7202103

main52110-3VV90-J0supersedes 52110-3VV80-J0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7202103

main52110-3VV90-K0supersedes 52110-3VW10-K0iXZU600,640..IV4; XZU685..IV4202310

main52110-3VW00-A0supersedes 52110-3VV90-A0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VW00-B1iXZC675,XZU675,685,695..SCB..(T3,T4); XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5); XZU650..40T202103

main52110-3VW00-D0supersedes 52110-3VV90-D0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VW00-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VW00-H0iXZC675,XZU675,685,695..CBU,IV3,IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52110-3VW00-J0iXZC675,XZU675,685,695..CBU,IV3,IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52110-3VW00-K0supersedes 52110-3VV90-K0iXZU600,640..IV4; XZU685..IV4202105-202305

main52110-3VW10-A0supersedes 52110-3VW00-A0iXZC675,XZU675,685,695..CBU,IV3,IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52110-3VW10-B1supersedes 52110-3VW00-B1iXZC675,XZU675,685,695..SCB..(T3,T4); XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5); XZU650..40T202103

main52110-3VW10-D0supersedes 52110-3VV90-D0iXZU600,640..IV4; XZU685..IV4202310

main52110-3VW10-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VW10-H0supersedes 52110-3VW00-H0iXZC675,XZU675,685,695..CBU,IV3,IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52110-3VW10-J0iXZC675,XZU675,685,695..CBU,IV3,IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52110-3VW10-K0iXZU600,640..IV4; XZU685..IV4202105-202310

main52110-3VW20-A0supersedes 52110-3VW10-A0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VW20-B1supersedes 52110-3VV80-B1iXZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5); XZU600,640,650..35T,40T202103

main52110-3VW20-D0supersedes 52110-3VV90-D0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VW20-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VW20-H0supersedes 52110-3VV80-H0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZU600,640,650..35T,40T202103

main52110-3VW20-J0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZU600,640,650..35T,40T202103

main52110-3VW20-K0supersedes 52110-3VW10-K0iXZU600,640..IV4; XZU685..IV4202105-202305

main52110-3VW30-A0supersedes 52110-3VW10-A0iXZU600,640..IV4; XZU685..IV4202310

main52110-3VW30-B1supersedes 52110-3VV80-B1iXZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5); XZU600,640,650..35T,40T202103

main52110-3VW30-D0supersedes 52110-3VW10-D0iXZU600,640..IV4; XZU685..IV4202310

main52110-3VW30-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VW30-H0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZU600,640,650..35T,40T202103

main52110-3VW30-J0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZU600,640,650..35T,40T202103

main52110-3VW30-K0supersedes 52110-3VW10-K0iXZU600,640..IV4; XZU685..IV4202105-202310

main52110-3VW40-A0supersedes 52110-3VW10-A0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VW40-B1supersedes 52110-3VV80-B1iXZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5); XZC675,XZU675,685,695..SCB..(T3,T4)202103

main52110-3VW40-D0supersedes 52110-3VV90-D0iXZU600,640..IV4; XZU685..IV4202103-202310

main52110-3VW40-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VW40-H0supersedes 52110-3VW00-H0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZC675,XZU675,685,695..CBU,IV3,IV6202103

main52110-3VW40-J0supersedes 52110-3VV80-J0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZC675,XZU675,685,695..CBU,IV3,IV6202103

main52110-3VW40-K0supersedes 52110-3VV90-K0iXZU600,640..IV4; XZU685..IV4202105-202305

main52110-3VW50-A0supersedes 52110-3VV80-A0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZC675,XZU675,685,695..CBU,IV3,IV6202103

main52110-3VW50-B1supersedes 52110-3VV80-B1iXZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5); XZC675,XZU675,685,695..SCB..(T3,T4)202103

main52110-3VW50-D0supersedes 52110-3VV90-D0iXZU600,640..IV4; XZU685..IV4202310

main52110-3VW50-F0supersedes 52110-3VV80-F0iXZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3202103

main52110-3VW50-H0supersedes 52110-3VW00-H0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZC675,XZU675,685,695..CBU,IV3,IV6202103

main52110-3VW50-J0supersedes 52110-3VW00-J0iXZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7; XZC675,XZU675,685,695..CBU,IV3,IV6202103

main52110-3VW50-K0supersedes 52110-3VW10-K0iXZU600,640..IV4; XZU685..IV4202105-202310

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-37171iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

52127CCOVER, FRONT BUMPER HOLE

main52127-37020×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

52127DCOVER, FRONT BUMPER HOLE, RH

main81481-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

52128CCOVER, FRONT BUMPER HOLE, LH

main81482-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

52141DSTAY, FRONT BUMPER, RH

main52011-37140supersedes 52011-37092iXZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52011-37150iXZU600,640,685,695..DCB202103

main52011-37092iXZU600,640,650..(35T,40T)..IV6; XZU600,640..IV4; XZU650..40T; XZU685..IV4202103

52142CSTAY, FRONT BUMPER, LH

main52012-37140supersedes 52012-37160iXZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main52012-37150iXZU600,640,685,695..DCB202103

main52012-37160iXZU600,640..IV4; XZU685..IV4202103-202310

52161TPIECE, FRONT BUMPER

main52161-16010×4iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5); XZU650..40T202103

52719COVER, FRONT BUMPER MOULDING

main52719-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main52719-37020iXZU600,640,650..(35T,40T)..IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655; XZU650..40T; XZU650..40T;XZU600,640..IV4; XZU685..IV4202103

53901BPANEL SUB-ASSY, FRONT VALANCE

main53901-37040iXZU600,640,650..(35T,40T)..IV6; XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695; XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655; XZU650..40T; XZU650..40T;XZU600,640..IV4; XZU685..IV4202103

75392RETAINER, OUTSIDE MOULDING

main75392-35220×2iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5); XZU600,640,650..(35T,40T)..IV6; XZU600,640..40T; XZU650..40T; XZU650..40T;XZU600,640..IV4; XZU650;XZU652..IV6;XZC60#,630,645,655,675,XZU600,605,630,640,645,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZU652..IV6;XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T,35T)..(CBU,IV3,IV4,IV6,IV7); XZU652..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..(20T,30T,35T)..(CBU,IV3,IV4,IV6,IV7); XZU685..IV4202103

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9010608008

main90106-08008

9010906396

main90109-06396

9011906678

main90119-06678

9046709227

main90467-09227

9356014012

main93560-14012

18 parts on this diagram · 4 diagrams in section
