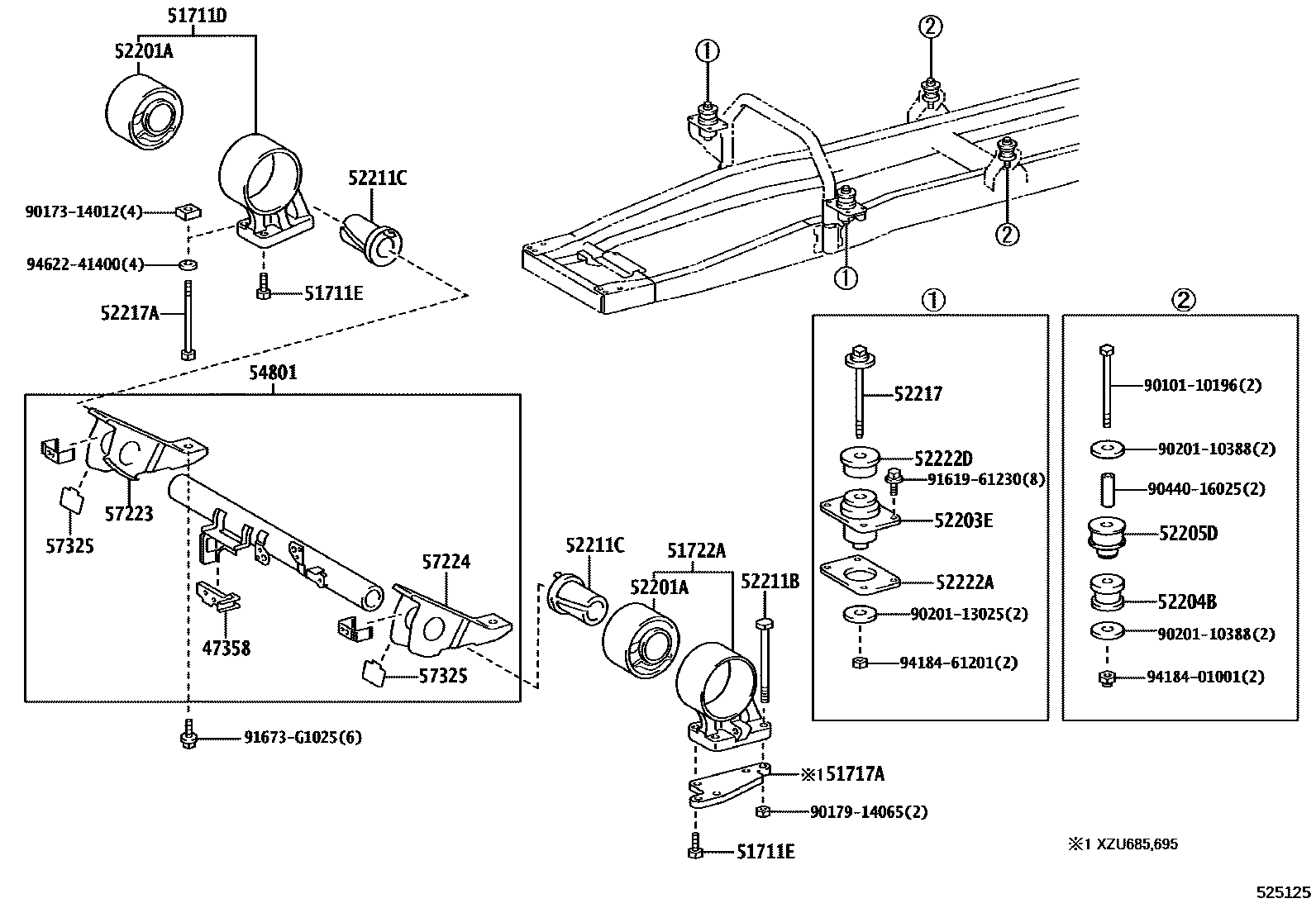

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1������������ 0003 1������������� 0004 1������������� 0005 1

47358TUBE, BOOSTER TO RESERVOIR, NO.2

main47358-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

51711DBRACKET, CAB FRONT MOUNTING

main51701-37110iXZU600,640,685,695..DCB202103

main51701-37360iXZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7202103

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14041×2iXZU600,640,685,695..DCB202103

main90101-14075×2iXZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7202103

51717APLATE, BODY SUPPORT BRACKET

main51717-37120×2iXZU600,640,685,695..DCB202103

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37050iXZU605,655..DCB202103

main51702-37100iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main51702-37350iXZU600,640,685,695..DCB202103

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37050×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37050×2iXZU600,640,685..IV4; XZU605,655,685,695..DCB..20T202103

main52203-37090×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-36011×2iXZU605,655,685,695..DCB..20T202103

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52203-36040×2iXZU605,655,685,695..DCB..20T202103

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14013×2iXZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7202103

main90109-14014×2iXZU600,640,685,695..DCB202103

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

52217BOLT, BODY MOUNTING

main52217-37030×2iXZU605,655,685,695..DCB..20T202103

52217ABOLT, BODY MOUNTING

main90101-14072×2supersedes 90101-14073iXZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7; XZU650..40T202103

main90101-14080×2iXZU600,640,685,695..DCB202103

main90101-14073×2iXZU600,640,650..(35T,40T)..IV6; XZU650..40T202103

52222ASPACER, CAB REAR MOUNTING, UPPER

main52222-37020×2iXZU600,640,685..IV4; XZU605,655,685,695..DCB..20T202103

52222DSPACER, CAB REAR MOUNTING, UPPER

main52222-36030×2iXZU605,655,685,695..DCB..20T202103

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37221iXZU600,605,640,655,685,695..DCB202103

main54801-37240iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

57223BRACKET, FRONT MOUNTING, RH

main57223-37011iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

57224BRACKET, FRONT MOUNTING, LH

main57224-37011iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

9010110196

main90101-10196

9017314012

main90173-14012

9017914065

main90179-14065

9020110388

main90201-10388

9020113025

main90201-13025

9044016025

main90440-16025

9161961230

main91619-61230

91673G1025

main91673-G1025

9418401001

main94184-01001

9418461201

main94184-61201

9462241400

main94622-41400

30 parts on this diagram · 5 diagrams in section
