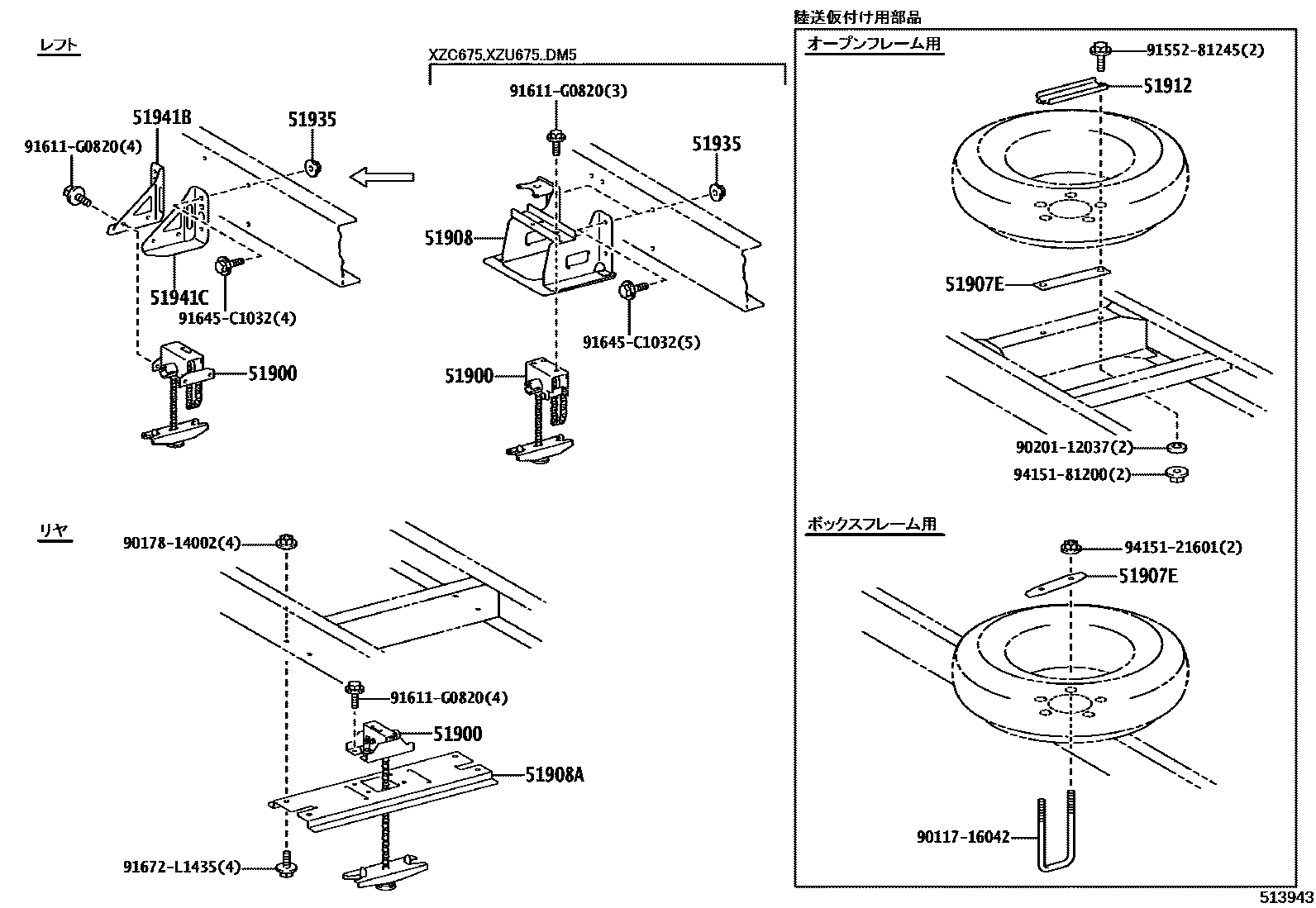

SPARE WHEEL CARRIER
51900CARRIER ASSY, SPARE WHEEL
main51900-37180iXZC600,XZU600..DM5;XZU605..30T..(CBU,IV3);XZC605,XZU605..T5..20T..IV3;XZC605,XZU605..SCB..(T4,T5)..20T..CBU; XZC605,XZU605,655..T2; XZU605..6F..30T..IV3;XZU605..T5..6FC..30T..IV3; XZU605..T5..6FC..30T..IV3; XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..IV3;XZC645,XZU600,640,645..(T3,T4)..(CBU,IV3,IV7)202103
main51900-37210iXZC605,XZU605,655..T2; XZU605..30T..IV3;XZC605,XZU605..SCB..T4..20T..CBU; XZU605..6FC..30T..IV3; XZU605..DCB..CBU;XZC605,675,XZU605,675..T4..20T..(IV3,IV6);XZC645,655,XZU600,640,645,650,655,685,695..(T3,T4)..(20T,30T)..(CBU,IV3); XZU605..T5..20T..IV3202103
51907ERETAINER SUB-ASSY, SPARE TIRE CARRIER
main51912-37010iXZU600..DM3..IV3;XZU600..(DM3,DM6,T3)..(CBU,IV4,IV6,IV7);XZU642,675..(DM7,T3,T4)..(30T,40T)..(IV3,IV6);XZU602,605,640,650,652,685..(DM6,T3)..(IV4,IV5,IV6); XZU605..6FC..30T..IV3; XZU605..IV6;XZU605..30T..IV3;XZU640..6FC..IV3;XZC605,XZU600,645,685..SCB..(T3,T5)..IV3;XZC675,XZU605,675..SCB..T4..(5F,6FC)..20T..IV3; XZU605..T5..6FC..30T..IV3202103
51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING
main51908-37571iXZC605,XZU605..SCB..T4..20T..CBU; XZC605,XZU605..T2..CBU;XZC605,XZU600..(T2,T3,T4)..IV3;XZU605..SCB..(T2,T4)..20T..(IV3,IV6)202103
main51908-37580iXZC675,XZU675..T4..20T..IV3;XZC645,XZU640,645,685..CBU,IV3; XZU605..30T..IV3; XZU605..6FC..30T..IV3; XZU605..T5..20T..IV3202103
51912BRACKET, SPARE WHEEL
main51912-37030iXZU600..DM3..IV3;XZU600..(DM3,DM6,T3)..(CBU,IV4,IV6,IV7);XZU642,675..(DM7,T3,T4)..(30T,40T)..(IV3,IV6);XZU602,605,640,650,652,685..(DM6,T3)..(IV4,IV5,IV6); XZU605..6FC..30T..IV3; XZU605..IV6;XZU605..30T..IV3;XZU640..6FC..IV3;XZC605,XZU600,645,685..SCB..(T3,T5)..IV3;XZC675,XZU605,675..SCB..T4..(5F,6FC)..20T..IV3; XZU605..T5..6FC..30T..IV3202103
51935NUT, SPARE WHEEL CARRIER EYE
main94151-81000×2iXZC600,XZU600..DM5; XZC675,XZU675..DM5; XZU600..T3..(IV3,IV7); XZU605..6F..30T..IV3;XZU605..T5..6FC..30T..IV3; XZU605..T5..6FC..30T..IV3; XZU642..6FC;XZC645,XZU64#..CBU,IV3;XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..IV3; XZU655..T2;XZU605..30T..(CBU,IV3);XZC605,XZU605..SCB..20T..CBU;XZC605,XZU605..(T2,T5)..20T..IV3202103
51941BBRACKET, SPARE WHEEL CARRIER, NO.1
main51941-37281iXZC605,XZU605..SCB..T4..20T..IV3; XZU605..6F..30T..IV3;XZU605..T5..6FC..30T..IV3; XZU605..T2..IV3;XZC600,XZU600..DM5;XZC605..T5..6F..CBU;XZU605..T5..6F..20T;XZC605..T2..6FC..IV3;XZU605..30T..(CBU,IV3);XZC605..(T2,T5)..6F..IV3;XZC605,XZU605..SCB..(T2,T4)..20T..CBU; XZU605..T5..6FC..30T..IV3202103
main51941-37321iXZU605..6FC..30T..IV3; XZU605..T5..6FC..30T..IV3; XZU642..6FC;XZU655..SCB..T4..6F..20T..CBU;XZU600,64#..(DM7,T3,T4)..(30T,40T)..(CBU,IV3,IV7); XZU655..T2;XZC605,XZU605..T5..6FC..20T202103
51941CBRACKET, SPARE WHEEL CARRIER, NO.2
main51941-37292iXZC605,XZU605..SCB..T4..20T..IV3; XZU605..6F..30T..IV3;XZU605..T5..6FC..30T..IV3; XZU605..T2..IV3;XZC600,XZU600..DM5;XZC605..T5..6F..CBU;XZU605..T5..6F..20T;XZC605..T2..6FC..IV3;XZU605..30T..(CBU,IV3);XZC605..(T2,T5)..6F..IV3;XZC605,XZU605..SCB..(T2,T4)..20T..CBU; XZU605..T5..6FC..30T..IV3202103
main51941-37332iXZU605..6FC..30T..IV3; XZU605..T5..6FC..30T..IV3; XZU642..6FC;XZU655..SCB..T4..6F..20T..CBU;XZU600,64#..(DM7,T3,T4)..(30T,40T)..(CBU,IV3,IV7); XZU655..T2;XZC605,XZU605..T5..6FC..20T202103
9011716042
main90117-16042
9017814002
main90178-14002
9020112037
main90201-12037
9155281245
main91552-81245
91611G0820
main91611-G0820
91645C1032
main91645-C1032
91672L1435
main91672-L1435
9415121601
main94151-21601
9415181200
main94151-81200
17 parts on this diagram · 1 diagram in section
