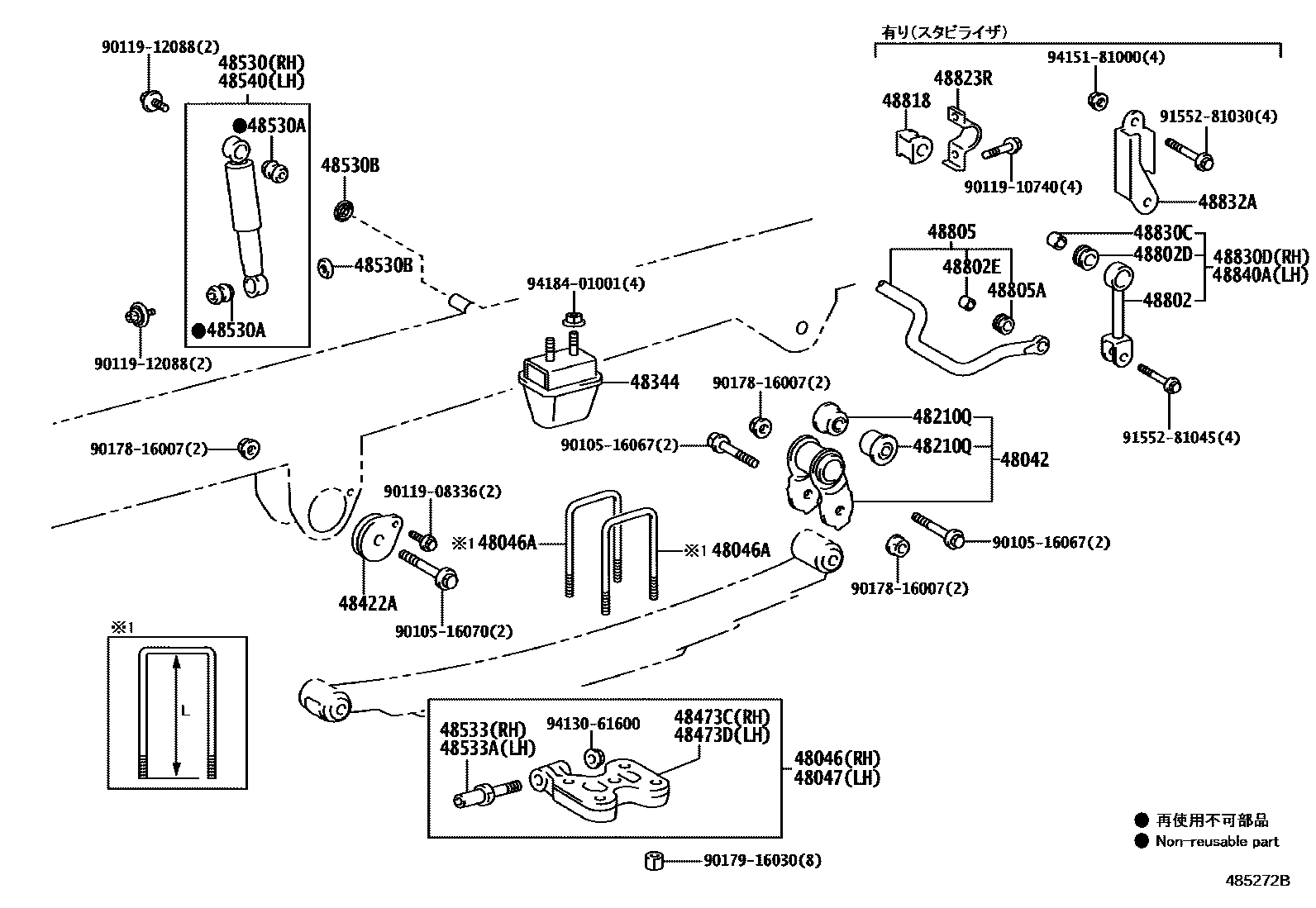

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1�������� 0007 1���2�����+���1�����,����A 0008 1���2�����+���1�����,����B 0009 1���2�����+���1�����,����C 0010 1���2�����+���1�����,����D 0011 1���2�����+���1�����,����F 0012 1���2�����+���1�����,����G 0013 1���2�����+���2�����,����A 0014 1���2�����+���2�����,����B 0015 1���2�����+���2�����,����C 0016 1���2�����+���2�����,����D 0017 1���2�����+���2�����,����E 0018 1���2�����+���2�����,����F 0019 1���2�����+���2�����,����G 0020 1���2�����+���3�����,����A 0021 1���2�����+���3�����,����B 0022 1���3�����,����A 0023 1���3�����,����C 0024 1���3�����,����D 0025 1���3�����+���2�����,����A 0026 1���3�����+���2�����,����B 0027 1���6�����

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020×2iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T202103

main48042-37041×2iXZU600,602,640,642,650,652..35T,40T202103

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37080iXZU600..6FC..IV4; XZU645..20T;XZC675,XZU600,605,675..DM3,DM6,T4,T5202103

main48046-37090iXZU605..T2;XZC605,645..T2,T4202103

main48046-37120iXZC605..T5202103

main48046-37131iXZC675,XZU600,675..DM5202103

main48046-37140iXZU630202103

main48046-37150iXZC630202103

main48046-37160iXZC600202103

main48473-37170iXZC655;XZU655..T2202103

main48473-37180iXZU650,655,685,695..T3,T4;XZU600,602,64#,652..(DM7,T3,T4)..(30T,35T,40T)202103

48046ABOLT, U(FOR REAR SPRING)

main90117-16011×4iXZC60#..DM5,T5; XZC605,645..T4202103

main90117-16018×4iXZU630,640,645,65#,695..30T,35T;XZU600,685..T3..30T..(CBU,IV3,IV4,IV7); XZU685..IV6202103

main90117-16021×4iXZC655;XZU655..T2202103

main90117-16022×4supersedes 90117-16142iXZC630; XZU650,655,685,695..(T3,T4)..20T202103

main90117-16024×4supersedes 90117-16040iXZU642,650..T3..40T;XZU600,602,630,640..(DM7,T3)..(20T,40T); XZU642..IV3202103

main90117-16067×4iXZU605..30T;XZU605..20T..IV5;XZC675,XZU600,675..(DM3,DM6,T4)..20T; XZU605..SCB..T4..20T..IV3202103

main90117-16068×4iXZC675,XZU675..T4..20T; XZU675..T4..30T;XZC675,XZU675..DM5202103

main90117-16077×4iXZU600..DM5;XZU605,645..(T4,T5)..20T202103

main90117-16144×4iXZU600,685..30T..IV6202103

main90117-16158×4iXZU605..T2;XZC605,645..T2,T4202103

main90117-16028×4iXZC605..T4..IV3202103

main90117-16069×4iXZU600..6FC..IV4; XZU605..T5..20T202103

main90117-16142×4iXZC655; XZU650,655,685,695..(T3,T4)..20T202103

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-37070iXZC600202103

main48047-37080iXZU600..6FC..IV4; XZU645..20T;XZC675,XZU600,605,675..DM3,DM6,T4,T5202103

main48047-37090iXZU605..T2;XZC605,645..T2,T4202103

main48047-37120iXZC605..T5202103

main48047-37131iXZC675,XZU600,675..DM5202103

main48047-37140iXZU630202103

main48047-37150iXZC630202103

main48473-37170iXZC655;XZU655..T2202103

main48473-37180iXZU650,655,685,695..T3,T4;XZU600,602,64#,652..(DM7,T3,T4)..(30T,35T,40T)202103

48210SPRING ASSY, REAR RH

main48210-37Q60iXZU655..T2; XZU655..T2..6F202103

main48210-37Q70iXZU600,640,645,650,655..(T3,T4)..30T..(CBU,IV3,IV7)202103

main48210-37Q90iXZU600,640..IV4202103

main48210-37R00iXZU685..IV4202103

main48210-37R10iXZU600..30T..IV6202103

main48210-37R30iXZU650,652..35T202103

main48210-37R40iXZU642..6FC;XZU642..IV3;XZU602,640..IV6;XZU600..6F..40T; XZU650..40T202103

main48210-37R50iXZU600,602,640,642..40T..IV6202103

main48210-37R60iXZC630202103

main48210-37R70iXZU630..20T202103

main48210-37R90iXZU642..IV3202103

main48210-37S60iXZC605,XZU605..T2202103

main48210-37T00iXZC605..T5202103

main48210-37T10supersedes 48210-37S50iXZC605,645,XZU605,645..SCB..T4..20T; XZU605..T5..20T202103

main48210-37T20iXZC600202103

main48210-37T30iXZU600..DM5..20T202103

main48210-37T40iXZC675,XZU675..DM5..20T202103

main48210-37T50iXZU600..DM3;XZU605..30T..(CBU,IV3)202103

main48210-37U00iXZU675..DM5..30T202103

main48210-37U20iXZU605..30T..IV5202103

main48210-3V601iXZU600,605..DM6..20T202103

main48210-37391supersedes 48210-37Q40iXZC655,XZU650,655..(T3,T4)..20T202103

main48210-37570iXZU655..T4..30T202103

main48210-37641iXZU605..SCB..T4..20T..IV3202103

main48210-37691iXZC605,XZU605..T5..20T202103

main48210-37830iXZU600,640,645,650,655..(T3,T4)..30T..(CBU,IV3)202103

main48210-37A81supersedes 48210-37Q50iXZU685,695..20T202103

main48210-37A90supersedes 48210-37Q80iXZU685,695..30T..(CBU,IV3)202103

main48210-37E91iXZC605..T4..IV3202103

main48210-37S10supersedes 48210-37R20iXZU685..IV6202103

main48210-37S20iXZU600,602..40T202103

main48210-37S30supersedes 48210-37R80iXZU630..30T202103

main48210-37S40iXZU650,655..30T;XZU640,645..T4..30T202103

main48210-37U30iXZU600..6FC..IV4202103

main48210-37U40supersedes 48210-37S90iXZC675,XZU675..T4..20T202103

main48210-37U50supersedes 48210-37T80iXZU675..T4..30T202103

main48210-37U60supersedes 48210-37S80iXZU605..DCB202103

main48210-37U80iXZU605..30T..(CBU,IV3)202103

main48210-37V00supersedes 48210-37T90iXZU600..DM5..30T202103

main48210-37Z60iXZU600..20T..IV6202103

48210QBUSH(FOR REAR SPRING SHACKLE)

main90384-28009×2iXZU600,602,640,642,650,652..35T,40T202103

main90389-16026×4iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T202103

48344STOPPER, BUMPER, REAR

main48344-37050×2iXZU600..6FC..IV4; XZU605..DCB;XZU600,605..DM6202103

main48344-37090×2iXZU685,695;XZC655,XZU650,655..(T3,T4)..20T202103

main48344-37110×2iXZU600..DM5..20T;XZC675,XZU675..DM5202103

main48344-37140×2iXZU642..6FC;XZU642..IV3;XZU602,640..IV6;XZU600..6F..40T; XZU655..T2;XZU650,652..35T,40T202103

main48344-37170×2iXZC605..T5;XZU605,645..SCB..(T4,T5)..20T202103

main48344-37200×2iXZU600,640,645,650,655..(T3,T4)..30T202103

main48344-37230×2iXZC630,XZU630..20T202103

main48344-37250×2iXZC600;XZU600..DM5..30T202103

main48344-37370×2iXZC605,645,675,XZU675..T4..20T202103

main48344-37390×2iXZC605,XZU605..T2202103

main48344-37400×2iXZU600,602,640,642..40T202103

main48344-37420×2iXZU630..30T202103

main48344-37450×2iXZU600..DM3;XZU605..30T..(CBU,IV3)202103

main48344-37460×2iXZU675..T4..30T202103

48422ASUPPORT, REAR SPRING PIN

main48422-36090×2iXZU600..6FC..IV4; XZU645..20T;XZC60#,630,645,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5202103

48473CSEAT, REAR SPRING U BOLT, RH

main48473-37060iXZU605..T2;XZC605,645..T2,T4202103

main48473-37080iXZC605..T5202103

main48473-37090iXZU600..6FC..IV4; XZU645..20T;XZC675,XZU600,605,675..DM3,DM6,T4,T5202103

main48473-37121iXZC675,XZU600,675..DM5202103

main48473-37130iXZU630202103

main48473-37140iXZC630202103

main48473-37160iXZC600202103

48473DSEAT, REAR SPRING U BOLT, LH

main48474-37060iXZU600..6FC..IV4; XZU645..20T;XZC675,XZU600,605,675..DM3,DM6,T4,T5202103

main48474-37080iXZU605..T2;XZC605,645..T2,T4202103

main48474-37090iXZC605..T5202103

main48474-37101iXZC675,XZU600,675..DM5202103

main48474-37110iXZU630202103

main48474-37120iXZC630202103

main48474-37130iXZC600202103

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80795iXZU600..6FC..IV4; XZU605..30T;XZC675,XZU675;XZC605,XZU600,605..(DM5,DM6,T5)..20T202103

main48531-80797iXZC630,XZU630..20T202103

main48531-80800iXZC605,645,XZU605,645..(T2,T4)..20T202103

main48531-80801iXZC600202103

main48531-80825iXZU630..30T;XZU600,602,640,642,650,652..35T,40T202103

main48531-80826iXZU600..DM3;XZU600..DM5..30T202103

main48531-80833iXZU645..30T;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..(20T,30T)202103

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19011×4iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×4iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030iXZU600..6FC..IV4; XZU645..20T;XZC60#,630,645,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5202103

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-37030iXZU600..6FC..IV4; XZU645..20T;XZC60#,630,645,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5202103

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80795iXZU600..6FC..IV4; XZU605..30T;XZC675,XZU675;XZC605,XZU600,605..(DM5,DM6,T5)..20T202103

main48531-80797iXZC630,XZU630..20T202103

main48531-80800iXZC605,645,XZU605,645..(T2,T4)..20T202103

main48531-80801iXZC600202103

main48531-80825iXZU630..30T;XZU600,602,640,642,650,652..35T,40T202103

main48531-80826iXZU600..DM3;XZU600..DM5..30T202103

main48531-80833iXZU645..30T;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..(20T,30T)202103

48802LINK SUB-ASSY, STABILIZER

main48802-37010×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48802DBUSH, STABILIZER LINK

main90385-13009×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10044×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48805BAR SUB-ASSY, REAR STABILIZER

main48805-37030iXZC675,XZU675..T4..20T; XZU645..20T;XZC605,645,XZU605..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

main48805-37040iXZU645..30T;XZC655,XZU655..SCB202103

48805ABUSH(FOR REAR STABILIZER BAR)

main90385-13009×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48818BUSH, STABILIZER, REAR

main48815-37060×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-37011×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48830CSPACER(FOR REAR STABILIZER LINK)

main90560-10044×2iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48830DLINK ASSY, REAR STABILIZER, RH

main48830-37010iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-37020×2iXZC675,XZU675..T4..20T; XZU645..20T;XZC605,645,XZU605..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

main48832-37010×2iXZU645..30T;XZC655,XZU655..SCB202103

48840ALINK ASSY, REAR STABILIZER, LH

main48830-37010iXZC675,XZU675..T4..20T; XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6; XZU675..T4..30T;XZU600,605..DM3,DM6202103

9010516067

main90105-16067

9010516070

main90105-16070

9011908336

main90119-08336

9011910740

main90119-10740

9011912088

main90119-12088

9017816007

main90178-16007

9017916030

main90179-16030

9155281030

main91552-81030

9155281045

main91552-81045

9413061600

main94130-61600

9415181000

main94151-81000

9418401001

main94184-01001

39 parts on this diagram · 27 diagrams in section
