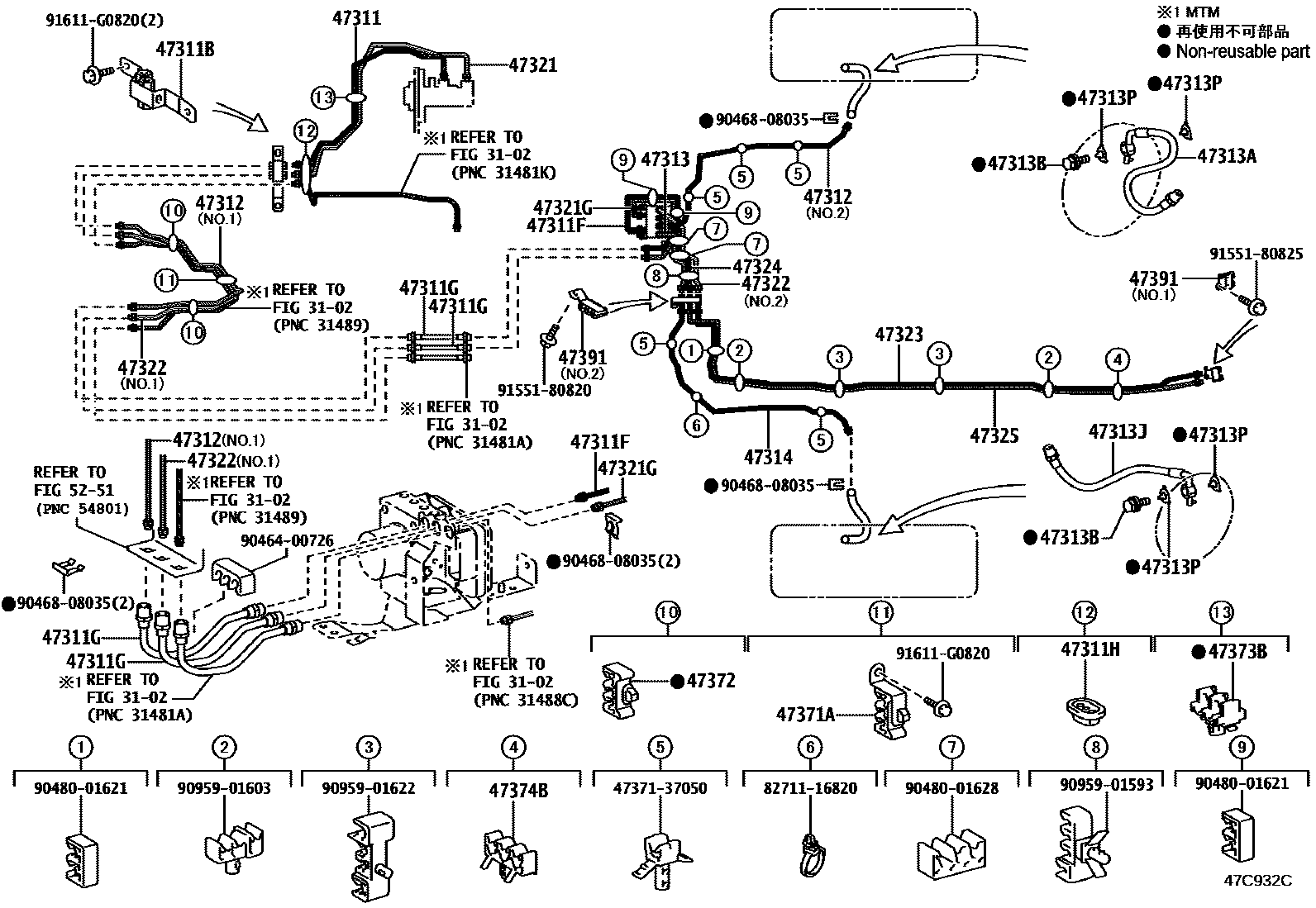

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1��(��������) 0006 1��(��������) 0007 1��(��������) 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

47311TUBE, FRONT BRAKE, NO.1

main47311-37750iXZC60#,630,645,655202103-202203

main47311-37751iXZC60#,630,645,655202204

main47311-37760iXZC675,XZU60#,630,64#,65#,675,685,695202103-202203

main47311-37761iXZC675,XZU60#,630,64#,65#,675,685,695202204

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37460iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37611iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02J57×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47311HGROMMET(FOR BRAKE TUBE)

main47256-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

main47256-37030iXZC60#,645,655,XZU60#,64#,65#..6FC202103

47312TUBE, FRONT BRAKE, NO.2

main47312-37A80iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202103-202203

main47312-37A81iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202204-202407

main47312-37A82iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202408

main47312-37F70iXZU600..IV7; XZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)202103-202203

main47312-37F71iXZU600..IV7; XZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)202204

main47312-37F80iXZC600,630,XZU600,630,640,650..20T,30T202103

main47312-37F90iXZU600,602,640,642,650,652..35T,40T202103

main47312-37G00iXZC605,645,655,XZU605,645,655202103

main47312-37G10iXZC675,XZU675,685,695202103

47313TUBE, FRONT BRAKE, NO.3

main47313-37560iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A72iXZC600,630,XZU600,630,640,650..20T,30T202103

main90947-02D54iXZC675,XZU675,685,695202103

main90947-02D99iXZU600,602,640,642,650,652..35T,40T202103

main90947-02E92iXZC605,645,655,XZU605,645,655202103

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02B27iXZC600,630,XZU600,630,640,650..20T,30T202103

main90947-02D98iXZC675,XZU675,685,695202103

main90947-02E00iXZU600,602,640,642,650,652..35T,40T202103

main90947-02E93iXZC605,645,655,XZU605,645,655202103

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47314TUBE, FRONT BRAKE, NO.4

main47314-37A50iXZC675,XZU675,685,695202103

main47314-37A60iXZC600,630,XZU600,630,640,650..20T,30T202103

main47314-37A70iXZU600,602,640,642,650,652..35T,40T202103

main47314-37A80iXZC605,645,655,XZU605,645,655202103

47321TUBE, REAR BRAKE, NO.1

main47321-37740iXZC60#,630,645,655202103-202203

main47321-37741iXZC60#,630,645,655202204

main47321-37750iXZC675,XZU60#,630,64#,65#,675,685,695202103-202203

main47321-37751iXZC675,XZU60#,630,64#,65#,675,685,695202204

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37580iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47322TUBE, REAR BRAKE, NO.2

main47322-37A91iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202103-202203

main47322-37A92iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202204-202407

main47322-37A93iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202408

main47322-37B00iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main47322-37G90iXZU600..IV7; XZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)202103-202203

main47322-37G91iXZU600..IV7; XZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)202204

47323TUBE, REAR BRAKE, NO.3

main47323-37B70iXZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7202103

main47323-37B81iXZC675,XZU675,685,695202103

main47323-37B91iXZC630,XZU630202103

main47323-37C00iXZU600,640..IV4202103

47324TUBE, REAR BRAKE, NO.4

main47324-37380iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47325TUBE, REAR BRAKE, NO.5

main47325-37640iXZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7202103

main47325-37651iXZC675,XZU675,685,695202103

main47325-37661iXZC630,XZU630202103

main47325-37670iXZU600,640..IV4202103

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37150iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202103

47372CLAMP, BRAKE TUBE, NO.2

main47371-37160×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6; XZU600..IV7; XZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)202103

47373BCLAMP, BRAKE TUBE, NO.3

main47371-37110iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47374BCLAMP, BRAKE TUBE, NO.4

main47371-37240iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

47391WAY, BRAKE TUBE

main47391-37300iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6202103

main47391-37400iXZU600..IV7; XZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)202103

main47391-37670iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

5251CAB MOUNTING & BODY MOUNTING

→ Go to FIG 52-51

4737137050BRACKET, CONNECTOR

main47371-37050

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

9046400726

main90464-00726

9046808035

main90468-08035

9048001621

main90480-01621

9048001628

main90480-01628

9095901593

main90959-01593

9095901603

main90959-01603

9095901622

main90959-01622

9155180820

main91551-80820

9155180825

main91551-80825

91611G0820

main91611-G0820
