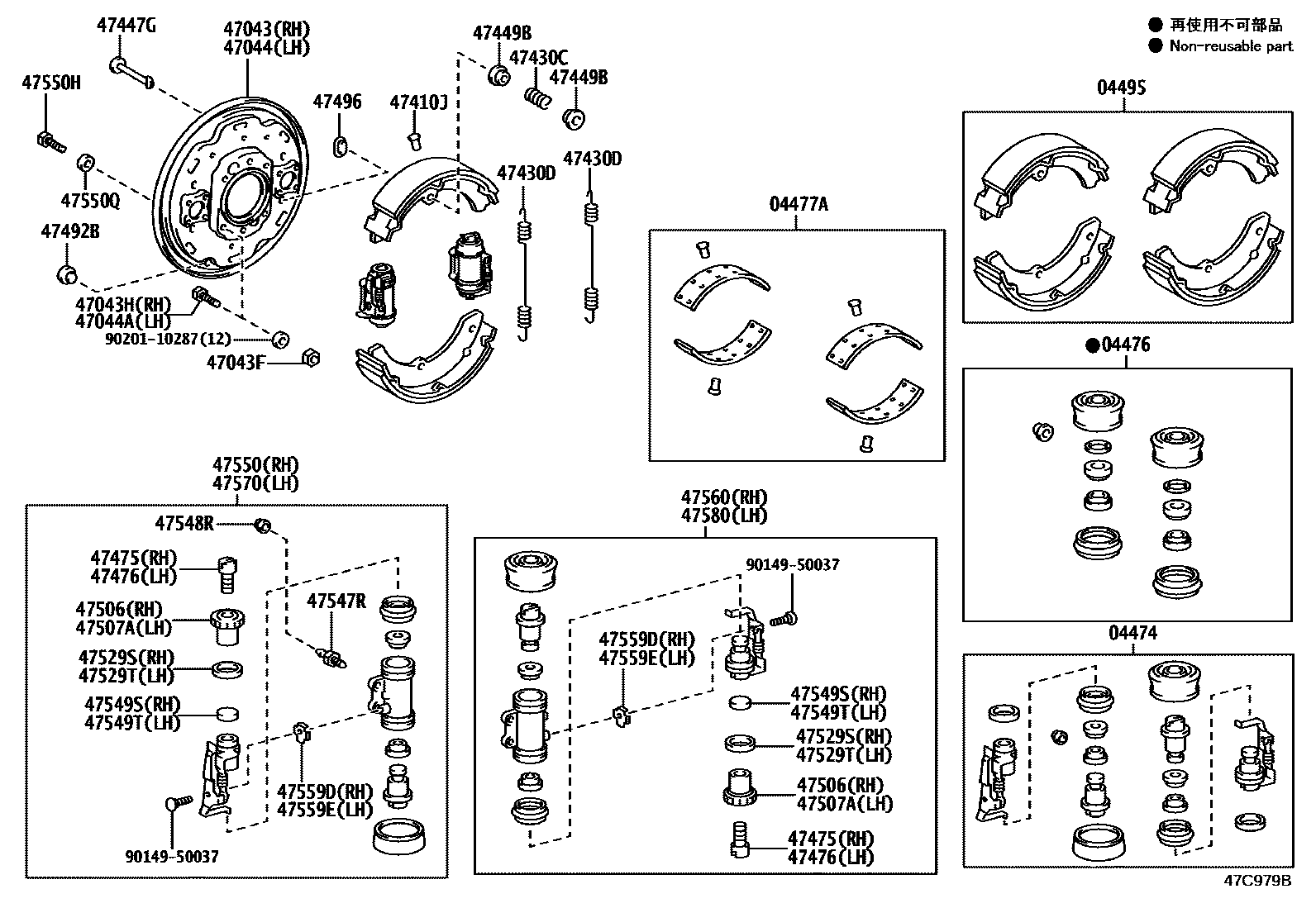

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04468-37020iXZU600..DM5..20T202103

main04468-37040iXZU600..DM5..20T202103-202310

main04468-37410iXZU650,652..IV6;XZU600,602,640,642..40T202103

main04474-37240iXZU600..DM5..20T202103

main04474-37250iXZC600,630202103-202310

main04474-37560iXZU650,652..IV6;XZU600,602,640,642..40T202103

04476CUP KIT, REAR WHEEL CYLINDER

main04476-37040iXZU600..DM5..20T202103

main04476-37090iXZU600..DM5..20T202103-202310

main04476-37100iXZU650,652..IV6;XZU600,602,640,642..40T202103

04477ALINING KIT, BRAKE

main04477-37040iXZU600..DM5..20T202103

main04477-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

04495SHOE KIT, REAR BRAKE

main04494-36280iXZU600..DM5..20T202103-202310

main04495-37040iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main04495-37230iXZU650,652..IV6;XZU600,602,640,642..40T202103

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-37050iXZU600..DM5..20T202103-202310

main47043-37060iXZU600..DM5..20T202103

main47421-37030iXZU650,652..IV6;XZU600,602,640,642..40T202103

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main94130-01441iXZU650,652..IV6;XZU600,602,640,642..40T202103

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10063iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-37050iXZU600..DM5..20T202103-202310

main47044-37060iXZU600..DM5..20T202103

main47422-37030iXZU650,652..IV6;XZU600,602,640,642..40T202103

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10063iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47410JRIVET, BRAKE LINING(FOR REAR BRAKE)

main90266-05005iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main90266-06001iXZU650,652..IV6;XZU600,602,640,642..40T202103

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006iXZC600,630202103-202310

main90507-29006iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main90905-07017iXZU650,652..IV6;XZU600,602,640,642..40T202103

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-35020iXZU600..DM5..20T202103-202310

main47447-60010iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36070iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47553-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36070iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47554-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36020iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47496-37020iXZU650,652..IV6;XZU600,602,640,642..40T202103

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47506-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47507-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47547-37020iXZU650,652..IV6;XZU600,602,640,642..40T202103

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main31478-37020iXZU650,652..IV6;XZU600,602,640,642..40T202103

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47549-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47549-37110iXZU650,652..IV6;XZU600,602,640,642..40T202103

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37102iXZU600..DM5..20T202103-202310

main47550-37113iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47550-37200iXZU650,652..IV6;XZU600,602,640,642..40T202103

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081iXZC600,630202103-202310

main90101-10127iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main90105-12387iXZU650,652..IV6;XZU600,602,640,642..40T202103

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002iXZU600..DM5..20T202103-202310

main90201-10287iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010iXZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-37073iXZU600..DM5..20T202103-202310

main47560-37083iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47560-37200iXZU650,652..IV6;XZU600,602,640,642..40T202103

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37062iXZC600,630202103-202310

main47570-37073iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47570-37220iXZU650,652..IV6;XZU600,602,640,642..40T202103

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-37063iXZC600,630202103-202310

main47580-37073iXZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6)202103

main47580-37220iXZU650,652..IV6;XZU600,602,640,642..40T202103

9014950037

main90149-50037

9020110287

main90201-10287

36 parts on this diagram · 2 diagrams in section
