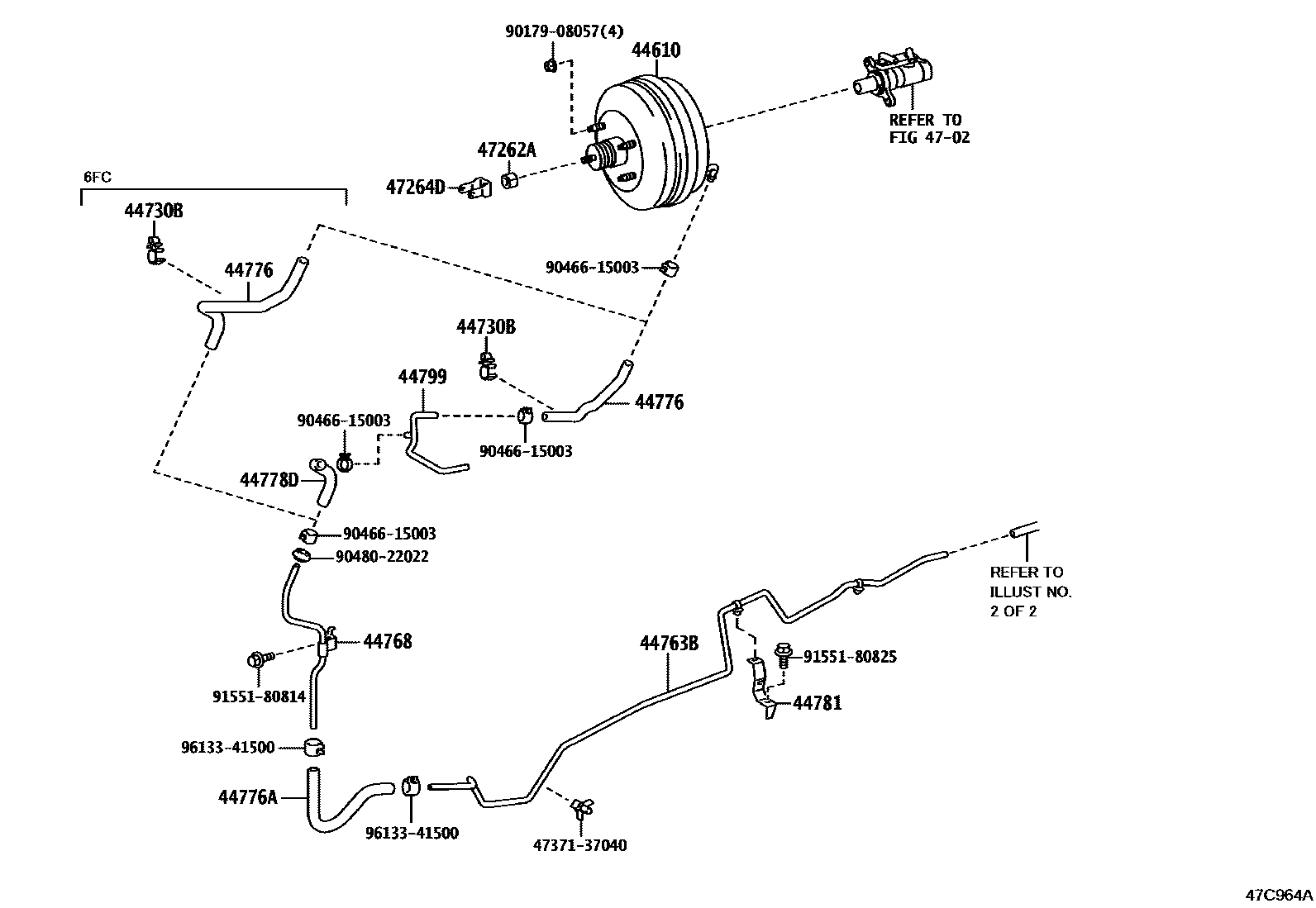

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

44610BOOSTER ASSY, BRAKE

main44610-37271iXZC60#,630,645,655202103

main44610-37280iXZC675,XZU600,605,630,645,650,655,675,685,695..20T202103

main44610-37290iXZU600,605,630,640,645,650,655,675,685,695..30T202103

main44610-37300iXZU600,602,640,642,650,652..35T,40T202103

44730BCLAMP, VACUUM HOSE

main44597-37021iXZU60#,64#,65#..6FC202103-202306

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44764-37B91iXZC605,645,655,XZU605,645,655202103

main44764-37C00iXZC600,XZU600,602,640,642,650,652202103

main44764-37C10iXZC630,XZU630202103

main44764-37C20iXZC675,XZU675,685,695202103

44768TUBE, BOOSTER VACUUM

main44768-37250iXZU60#,64#,65#..6FC202310

44776HOSE, BRAKE BOOSTER

main44776-37350iXZU60#,64#,65#..6FC202103-202306

main44776-37360iXZC60#,630,645,655..6F202103

main44776-37370iXZC60#,645,655..6FC202103

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37190iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37060iXZU605,655,685,695..DCB..20T202103

44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE

main44778-37251iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

main44778-37260iXZU60#,64#,65#..6FC202103-202306

44781BRACKET, HOSE

main44781-37150iXZC675,XZU675,685,695202103

main44781-37171iXZC60#,630,645,655,XZU60#,630,64#,65#202103

44799WAY, BRAKE VACUUM HOSE

main44799-37060iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90179-10065iXZC675,XZU60#,630,64#,65#,675,685,695202103

main94120-41000iXZC60#,630,645,655202103

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42010iXZC60#,630,645,655202103

main47264-50010iXZC675,XZU60#,630,64#,65#,675,685,695202103

4737137040BRACKET, CONNECTOR

main47371-37040

9017908057

main90179-08057

9046615003

main90466-15003

9048022022

main90480-22022

9155180814

main91551-80814

9155180825

main91551-80825

9613341500

main96133-41500

20 parts on this diagram · 10 diagrams in section
