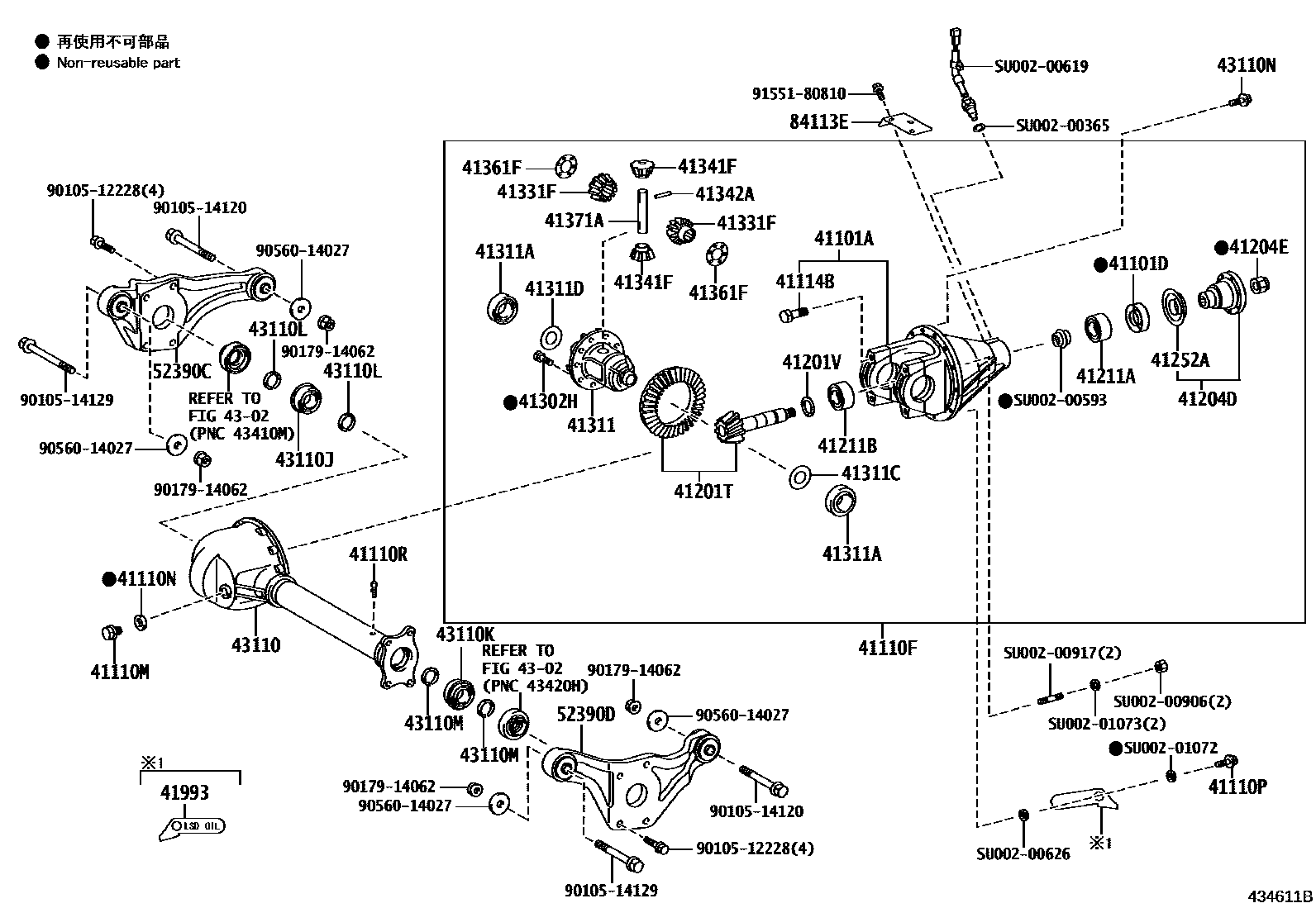

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41302HBOLT(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41371ASPIDER, FRONT DIFFERENTIAL
41993LABEL, DIFFERENTIAL OIL INFORMATION
4302FRONT DRIVE SHAFT
43110HOUSING ASSY, FRONT AXLE
43110JBEARING, FRONT AXLE BALL, RH
43110KBEARING, FRONT AXLE BALL, LH
43110LRING, SNAP (FOR FRONT AXLE HOUSING, RH)
43110MRING, SNAP (FOR FRONT AXLE HOUSING, LH)
43110NBOLT (FOR FRONT AXLE HOUSING)
52390CSUPPORT ASSY, FRONT DIFFERENTIAL, REAR, RH
52390DSUPPORT ASSY, FRONT DIFFERENTIAL, REAR, LH
84113EBRACKET, SWITCH
9010512228
main90105-12228
9010514120
main90105-14120
9010514129
main90105-14129
9017914062
main90179-14062
9056014027
main90560-14027
9155180810
main91551-80810
SU00200365
mainSU002-00365
SU00200593
mainSU002-00593
SU00200619
mainSU002-00619
SU00200626
mainSU002-00626
SU00200906
mainSU002-00906
SU00200917
mainSU002-00917
SU00201072
mainSU002-01072
SU00201073
mainSU002-01073
50 parts on this diagram · 1 diagram in section
