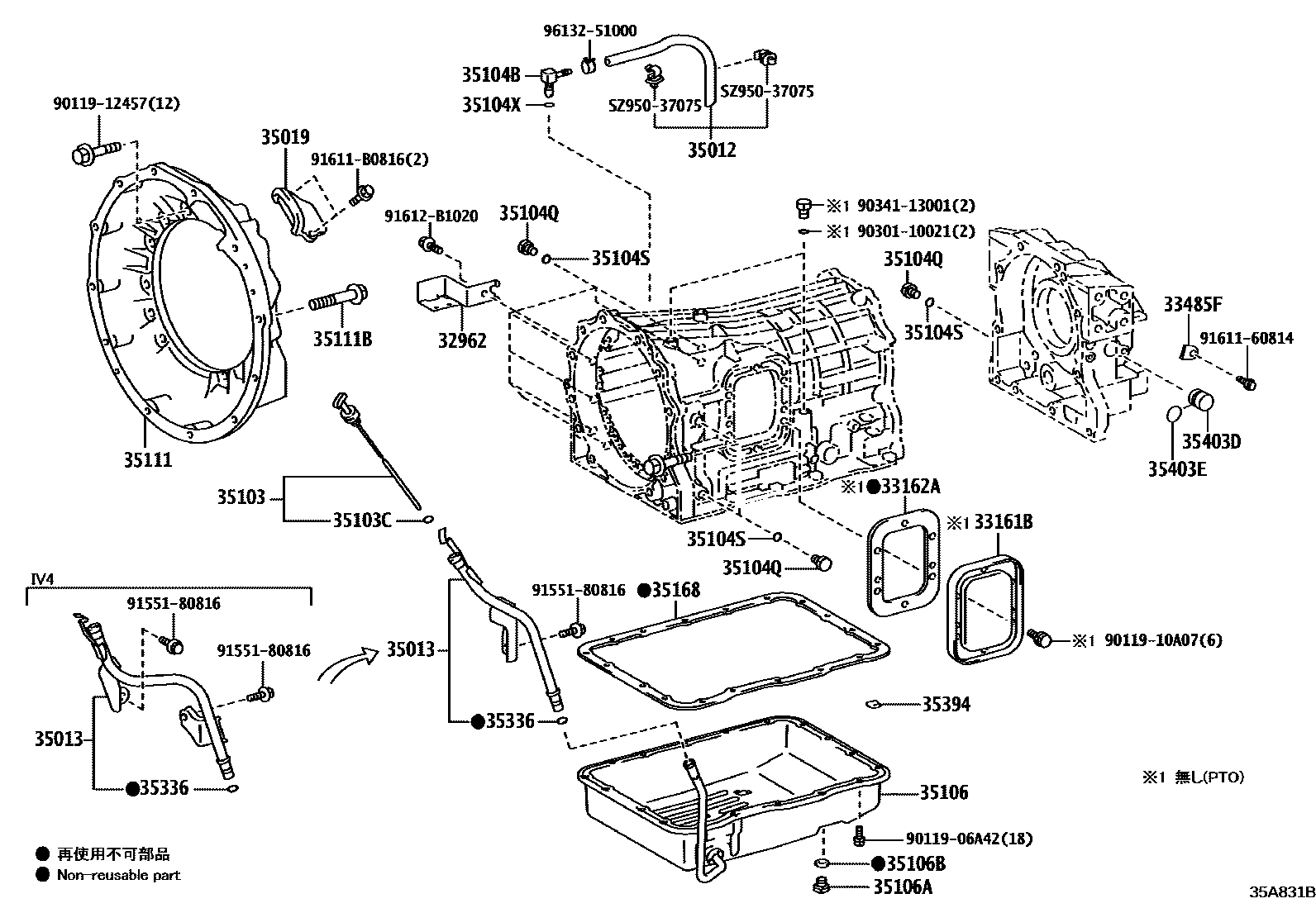

TRANSMISSION CASE & OIL PAN (ATM)

32962INSULATOR, OIL TEMPERATURE SWITCH HEAT

main32962-37030iXZC60#,645,655,XZU60#,64#,65#..6FC202103

33161BCOVER, TRANSMISSION POWER TAKE-OFF

main33161-37020iXZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3,IV4); XZU602,642..6FC202103

33162AGASKET, TRANSMISSION POWER TAKE-OFF

main33162-37020iXZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3,IV4); XZU602,642..6FC202103

33485FPLATE, SPEEDMETER LOCK

main33485-30020iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-37010iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-37230iXZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)202103

main35013-37240iXZU600,640..6FC..IV4202103

35019COVER SUB-ASSY, TRANSMISSION CASE DUST

main35019-37040iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-37220iXZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)202103

main35103-37230iXZU600,640..6FC..IV4202103

35103CRING, O

main90301-09009iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-13001×9iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-10021×9iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-37120iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18057iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-37020iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-10898×12iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-37010iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35403DCAP, SPEED SENSOR DUST

mainG347337010iXZC60#,645,655,XZU60#,64#,65#..6FC202103

35403ERING, O(FOR SPEED SENSOR DUST CAP)

main90301-21014iXZC60#,645,655,XZU60#,64#,65#..6FC202103

9011906A42

main90119-06A42

9011910A07

main90119-10A07

9011912457

main90119-12457

9030110021

main90301-10021

9034113001

main90341-13001

9155180816

main91551-80816

9161160814

main91611-60814

91611B0816

main91611-B0816

91612B1020

main91612-B1020

9613251000

main96132-51000

SZ95037075

mainSZ950-37075

34 parts on this diagram · 1 diagram in section
