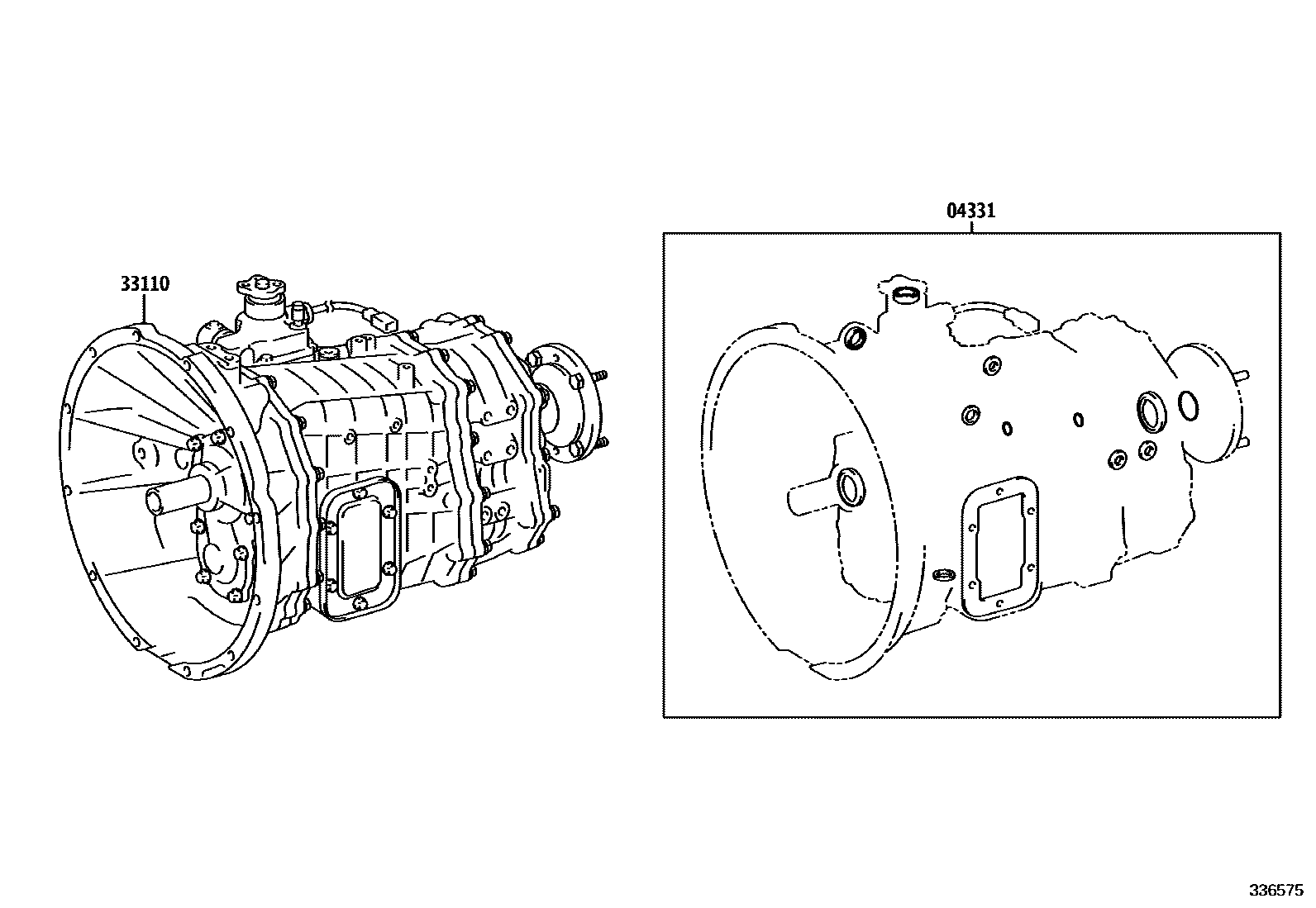

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1RE62 0002 1RE62 0003 1RF50F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-37440iXZC60#,630,645,655,XZU60#,630,64#,65#..6F202103

main04331-37450iXZC675,XZU675,685,695202103

33110TRANSMISSION ASSY, MANUAL

main33110-37P80iXZC675,XZU675,685,695202103-202304

main33110-37P81iXZC675,XZU675,685,695202305

main33110-37Q00iXZC60#,630,645,655,XZU60#,630,64#,65#..6F202103-202310

main33110-37R50iXZC60#,630,645,655,XZU60#,630,64#,65#..6F202310

2 parts on this diagram · 3 diagrams in section
