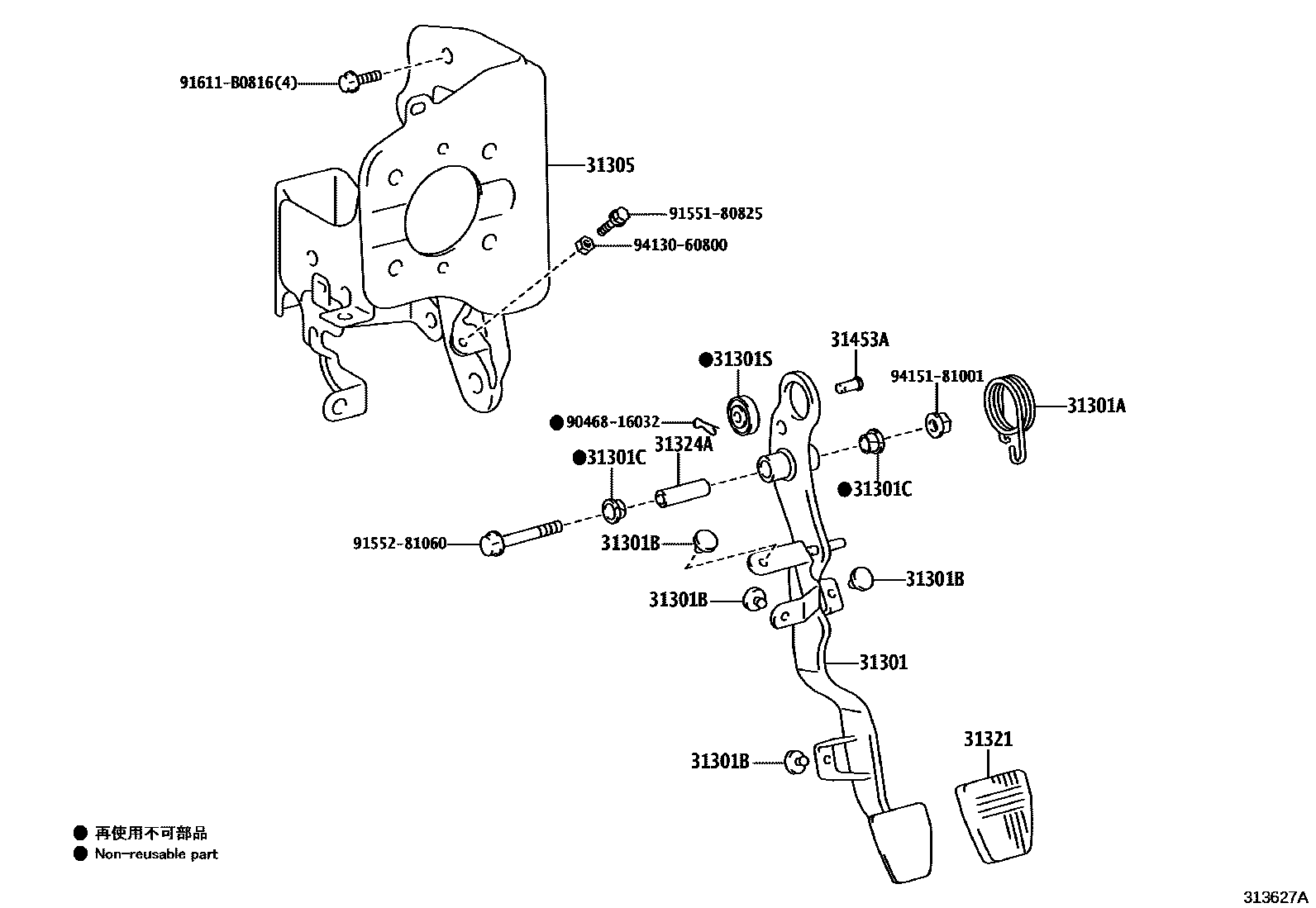

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37320iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31301ASPRING(FOR CLUTCH PEDAL)

main31394-37021iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×4iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main31496-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main31305-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31321PAD, CLUTCH PEDAL

main31321-52020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

9046816032

main90468-16032

9155180825

main91551-80825

9155281060

main91552-81060

91611B0816

main91611-B0816

9413060800

main94130-60800

9415181001

main94151-81001

15 parts on this diagram · 3 diagrams in section
