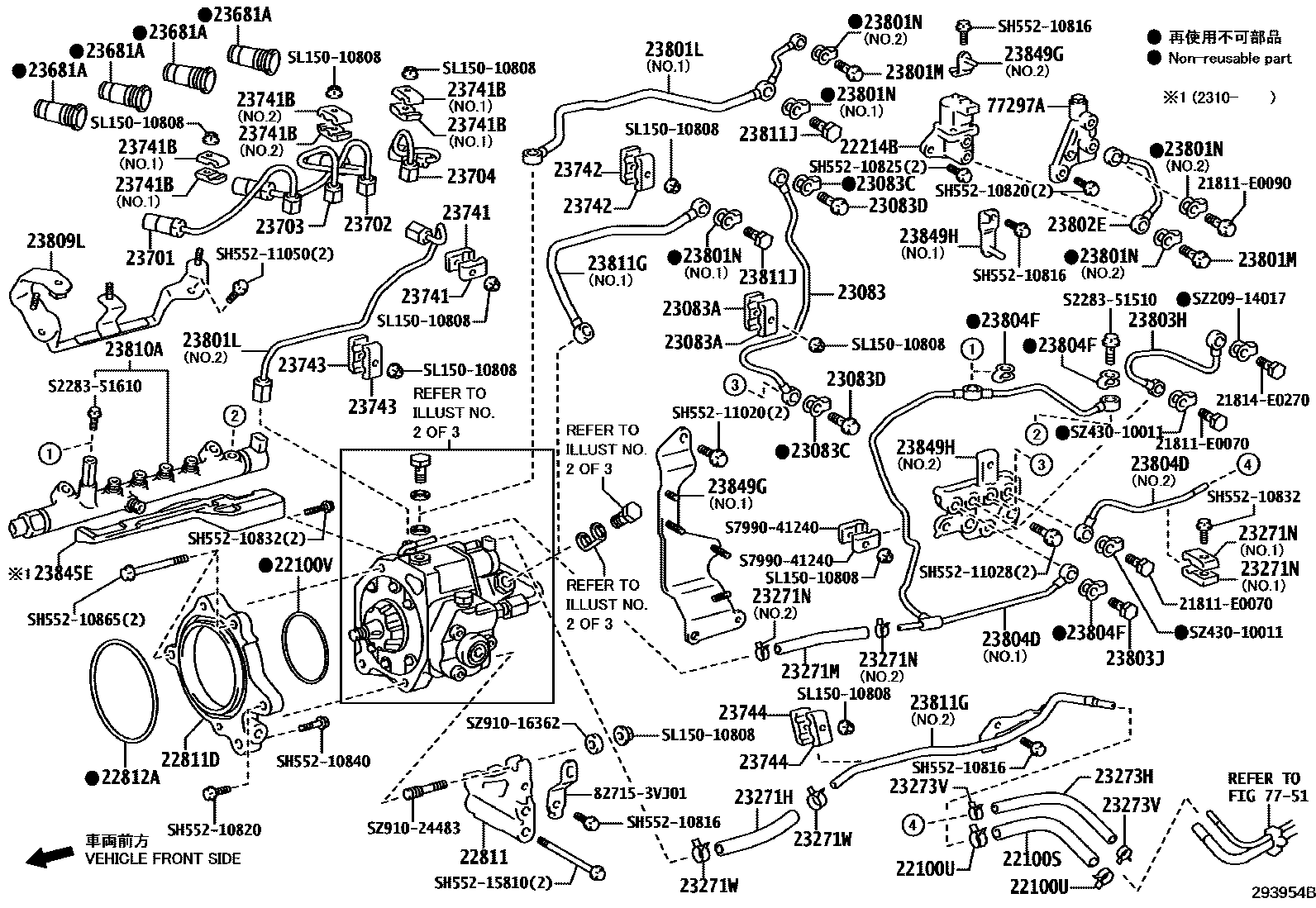

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-78270iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-78591iN04C..XZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7202103

main23271-78751iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6202103

main23271-78761iN04C..XZU600,640,685..IV4202103

main23271-78771iN04C..XZC630,XZU630202103

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90466-16004×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

22100VRING, O(FOR INJECTION PUMP)

mainSN73210493iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

22214BVALVE ASSY, FUEL ADDITION CUT

mainS2210E0060iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

22811STAY, INJECTION PUMP, NO.1

main22811-78141iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

22811DSTAY, INJECTION PUMP, NO.2

mainS225122060iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

22812ARING, O

mainSN73210793iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3

main23816-78121iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23083ACLAMP, NOZZLE LEAKAGE

mainS799043390×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23083CGASKET(NOZZLE LEKAGE PIPE NO.3)

mainSZ43008013×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23083DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main21811-E0060×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23271HHOSE, FUEL, NO.1

main23271-E0540iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23271MHOSE, FUEL

main95337-06012iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23271NCLIP, HOSE

main21576-E0170×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6; N04C..XZU600,640,685..IV4,IV7202103

mainS2304EW041×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

23271WCLIP(FOR FUEL HOSE NO.1)

mainSZ46618001×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23273HHOSE, FUEL, NO.2

main23273-78721iN04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

main23273-78731iN04C..XZU600..IV7;N04C..XZC630,XZU630202103

main23273-78751iN04C..XZU600,640,685..IV4202103

23273VCLIP(FOR FUEL HOSE NO.2)

main96133-41301×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23681ASEAL, NOZZLE HOLDER

main23681-78030×4iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78170iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78170iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78160iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78160iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23741CLAMP, INJECTION PIPE, NO.1

mainS2304EW041×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23741BCLAMP, INJECTION PIPE

main21576-E0020×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

mainS2304EW041×4iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23742CLAMP, INJECTION PIPE, NO.2

mainS799041021×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23743CLAMP, INJECTION PIPE, NO.3

main21576-E0020×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23744CLAMP, INJECTION PIPE, NO.4

mainS799042150×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-78231iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main23801-78241iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23801MBOLT, UNION

mainSZ40110019×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23801NGASKET

mainSZ20914017×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

mainSZ43010011×3iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23802EPIPE SUB-ASSY, FUEL

main23801-78200iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

main23801-78220iN04C..XZU600,640,685..IV4,IV7202103

23803HPIPE SUB-ASSY, FUEL RETURN

main23816-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23803JBOLT, UNION(FOR FUEL RETURN PIPE)

main21811-E0070iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23804DPIPE SUB-ASSY, FUEL, NO.4

main23816-78131iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main23816-78180iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

main23816-78190iN04C..XZU600,640,685..IV4,IV7202103

23804FGASKET(FOR FUEL PIPE NO.4)

mainSZ43010011×3iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23809LSUPPORT SUB-ASSY, FUEL PIPE

main23809-78180iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23810ARAIL ASSY, COMMON

main23810-78060iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23811GPIPE, FUEL, NO.1

main23811-78311iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7202103

main23811-78320iN04C..XZU600,640,685..IV4202103

main23811-78340iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23811JBOLT, UNION

mainSZ40114004×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

23845EINSULATOR, FUEL PIPE

main23845-78040iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

23849GSUPPORT, FUEL PIPE

main23809-78200iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

main23809-78210iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6; N04C..XZU600,640,685..IV4,IV7202103-202310

main23809-78230iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6; N04C..XZU600,640,685..IV4,IV7202310

23849HSUPPORT, FUEL PIPE

main23809-78080iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202310

main23809-78240iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

main23849-78240iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

77297ACONNECTOR, FUEL TUBE

main77209-37080iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103-202501

main77297-37071iXZU600,640,685..IV4,IV7202103

7751FUEL TANK & TUBE

→ Go to FIG 77-51

21811E0070BOLT, UNION NIPPLE

main21811-E0070

21811E0090BOLT, UNION NIPPLE

main21811-E0090

21814E0270BOLT, FUEL INLET

main21814-E0270

827153VJ01BRACKET,WIRING HARNESS CLAMP

main82715-3VJ01

S228351510

mainS2283-51510

S228351610

mainS2283-51610

S799041240CLIP SUB-ASSY

mainS7990-41240

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210825

mainSH552-10825

SH55210832

mainSH552-10832

SH55210840

mainSH552-10840

SH55210865

mainSH552-10865

SH55211020

mainSH552-11020

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

SH55215810

mainSH552-15810

SL15010808

mainSL150-10808

SZ20914017

mainSZ209-14017

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ91016362

mainSZ910-16362

SZ91024483

mainSZ910-24483

67 parts on this diagram · 5 diagrams in section
