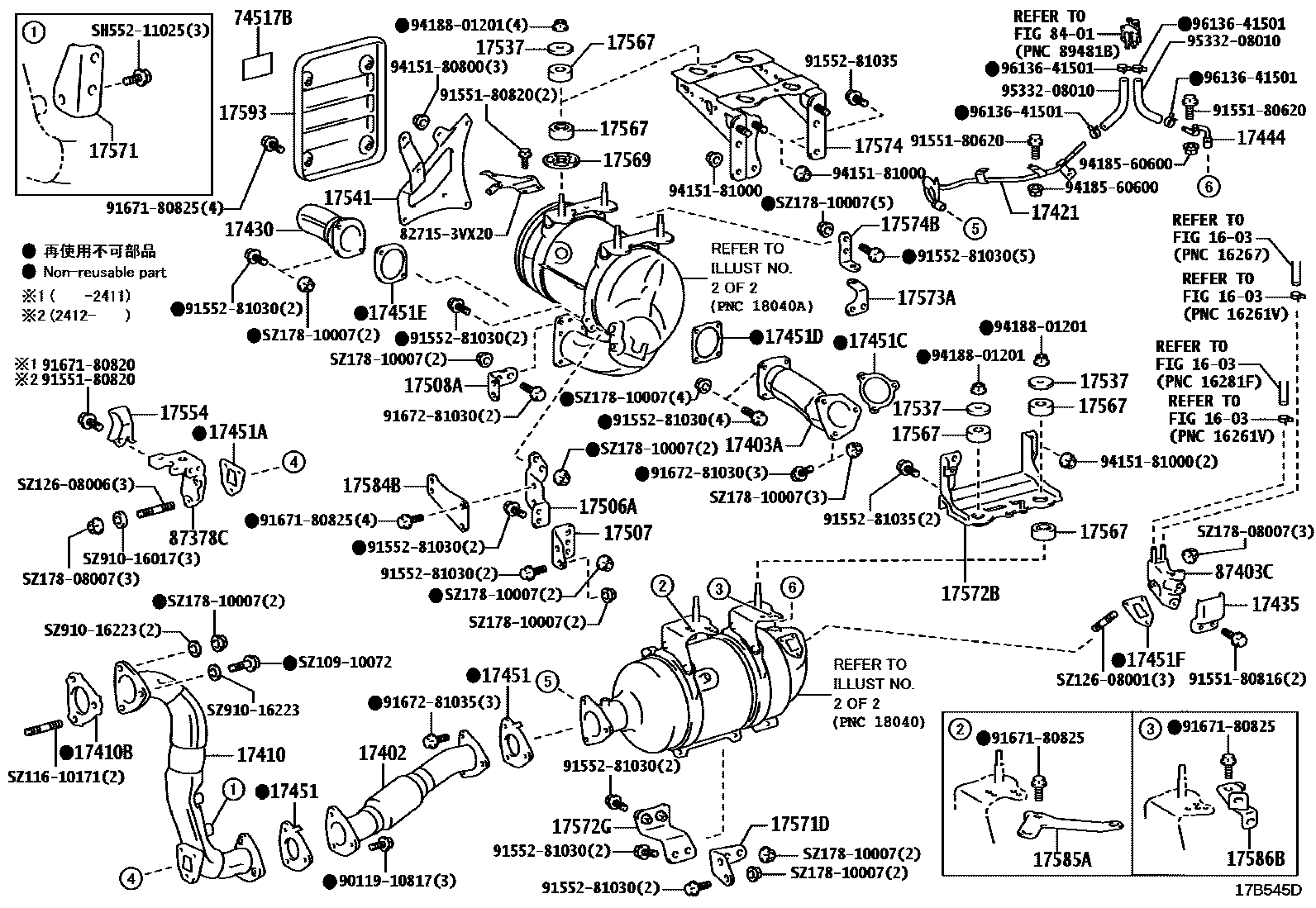

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2

main17402-78251iN04C..XZC60#,630,XZU60#,630..SCB202103

main17402-78261iN04C..XZC645,655,XZU64#,65#..SCB202103

main17402-78271iN04C..XZU600,605..DCB202103

main17402-78291iN04C..XZU640,655..DCB202103

main17402-78300iN04C..XZC675,XZU675,685,695..SCB202103

main17402-78310iN04C..XZU685,695..DCB202103

17403APIPE SUB-ASSY, EXHAUST, CENTER NO.2

main17403-78C00iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17403-78C10iN04C..XZU600,605,640,655..DCB202103

main17403-78C20iN04C..XZC675,XZU675,685,695202103

17410PIPE ASSY, EXHAUST, FRONT

main17401-78410iN04C..XZC675,XZU675,685,695202103

main17401-78420iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

17410BGASKET, EXHAUST PIPE

main17451-E0110iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17421PIPE, EXHAUST, NO.2

main17421-78330iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17421-78340iN04C..XZU600,605,640,655..DCB202103

main17421-78350iN04C..XZC675,XZU675,685,695202103

17430PIPE ASSY, EXHAUST, TAIL

main17405-78J80iN04C..XZU645..20T;N04C..XZC60#,630,645,XZU600,605,630..SCB..(DM3,DM5,DM6,DM7,T2,T4,T5)202103

main17405-78J90iN04C..XZU645..30T;N04C..XZC655,XZU600,602,640,642,65#..SCB..(DM7,T2,T3,T4)202103

main17405-78K00iN04C..XZU605..DCB202103

main17405-78K10iN04C..XZU655..DCB202103

main17405-78K20iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6202103

main17405-78L11iN04C..XZU600,640..IV4202103

main17405-78L31iN04C..XZU685..IV4202103

main17405-78L41iN04C..XZU600,640,685..IV4202103

main17405-78K51iN04C..XZU600..6FC..IV4202103

17435INSULATOR, EXHAUST PIPE HEAT

main17551-78150iN04C..XZC675,XZU675,685,695202103

main17551-E0760iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

17444PIPE, EXHAUST, NO.4

main17444-78210iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17444-78220iN04C..XZU600,605,640,655..DCB202103

main17444-78230iN04C..XZC675,XZU675,685,695202103

17451GASKET, EXHAUST PIPE

main17451-78061iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#; N04C..XZC675,XZU675,685,695202103

17451AGASKET, EXHAUST PIPE, NO.2

main17451-E0121iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17451CGASKET, EXHAUST PIPE, NO.3

mainS171041490iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17451DGASKET, EXHAUST PIPE, NO.4

mainS171041580iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17451EGASKET, EXHAUST PIPE, NO.5

main17451-78120iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main90917-06090iN04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

17451FGASKET, EXHAUST PIPE, NO.6

main17451-E0121iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17584-78110iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17584-78100iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17584-78040iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

17537PLATE, EXHAUST PIPE

main17537-78030×4iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB; N04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

17541STAY, EXHUST PIPE PROTECTOR, NO.1

main17541-78020iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17541-78030iN04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

main17554-78101iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-78060×7iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB; N04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

17569PLATE, EXHAUST PIPE SUPPORT

main17537-78020×2iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB; N04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-78140iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

main17571-78160iN04C..XZC675,XZU675,685,695202103

17571DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17585-78130iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17585-78150iN04C..XZU600,605,640,655..DCB202103

main17585-78210iN04C..XZC675,XZU675,685,695202103

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-78500iN04C..XZC60#,645,655,XZU60#,64#,65#202103

main17572-78510iN04C..XZC630,XZU630202103

main17572-78521iN04C..XZC675,XZU675,685,695202103

17572GBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17585-78140iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17585-78160iN04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17585-78170×2iN04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

main17586-78150iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-78190iN04C..XZC60#,645,655,XZU60#,64#,65#..SCB202103

main17574-78200iN04C..XZC630,XZU630202103

main17574-78210iN04C..XZU600,605,640,655..DCB202103

17574BBRACKET, EXHAUST PIPE SUPPORT, NO.4

main17586-78160iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT

main17584-78140iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

17585ABRACKET, EXHAUST PIPE NO.2 SUPPORT

main17585-78190iN04C..XZC675,XZU675,685,695202103

main17585-78222iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

17586BBRACKET, EXHAUST PIPE NO.3 SUPPORT

main17585-78200iN04C..XZC675,XZU675,685,695202103

main17586-78201iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

17593PROTECTOR, EXHAUST PIPE, NO.1

main17551-78130iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

main17551-78161iN04C..XZC675,XZU675,685,695;N04C..XZU600,605,640,655..DCB202103

74517BLABEL, EXHAUST TEMPERATURE CAUTION

main74517-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87378CPIPE, EXHAUST

main87378-E0033iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

87403CPIPE SUB-ASSY, EXHAUST

main87403-E0010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

827153VX20BRACKET,WIRING HARNESS CLAMP

main82715-3VX20

9011910817

main90119-10817

9155180620

main91551-80620

9155180816

main91551-80816

9155180820

main91551-80820

9155281030

main91552-81030

9155281035

main91552-81035

9167180820

main91671-80820

9167180825

main91671-80825

9167281030

main91672-81030

9167281035

main91672-81035

9415180800

main94151-80800

9415181000

main94151-81000

9418560600

main94185-60600

9418801201

main94188-01201

9533208010

main95332-08010

9613641501

main96136-41501

SH55211025

mainSH552-11025

SZ10910072

mainSZ109-10072

SZ11610171

mainSZ116-10171

SZ12608001

mainSZ126-08001

SZ12608006

mainSZ126-08006

SZ17808007

mainSZ178-08007

SZ17810007

mainSZ178-10007

SZ91016017

mainSZ910-16017

SZ91016223

mainSZ910-16223

64 parts on this diagram · 13 diagrams in section
