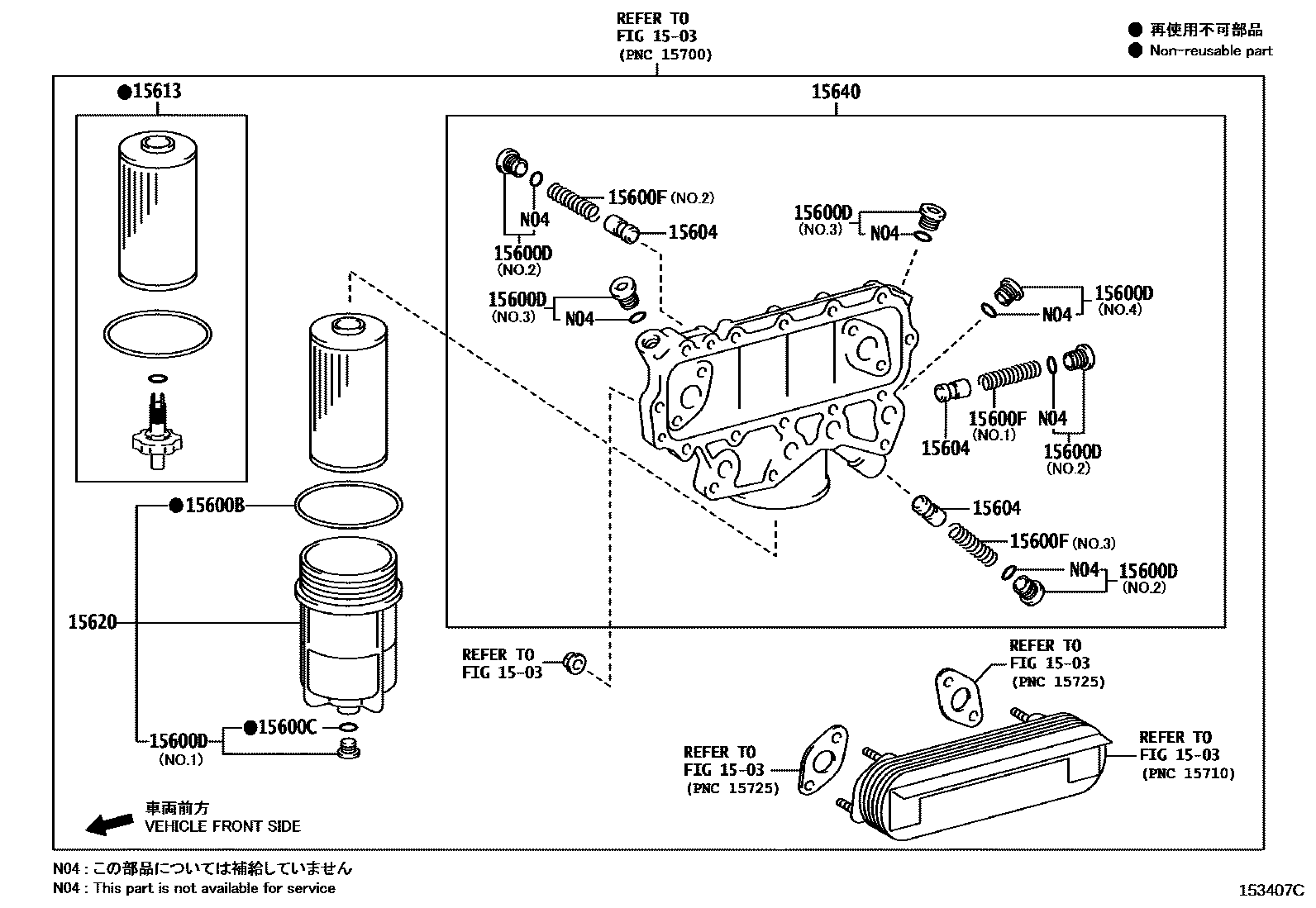

OIL FILTER

1503

15600BRING, O, NO.1(FOR OIL FILTER)

main16442-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

15600CRING, O, NO.2(FOR OIL FILTER)

main15188-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

15600DPLUG(FOR OIL FILTER)

main15529-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main15529-EV010iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main21677-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

main21784-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main15661-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

mainS156611250iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

mainS156611560iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

15604VALVE SUB-ASSY, OIL SAFETY

mainS157141120iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

15613ELEMENT, OIL FILTER

main15601-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

15620CAP ASSY, OIL FILTER

main15620-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202205

sub15620-78141

main15620-78141iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202205

15640CASE ASSY, OIL FILTER

main15640-78140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7202103

main15640-78150iN04C..XZU600,640,685..IV4202103

9 parts on this diagram · 1 diagram in section
