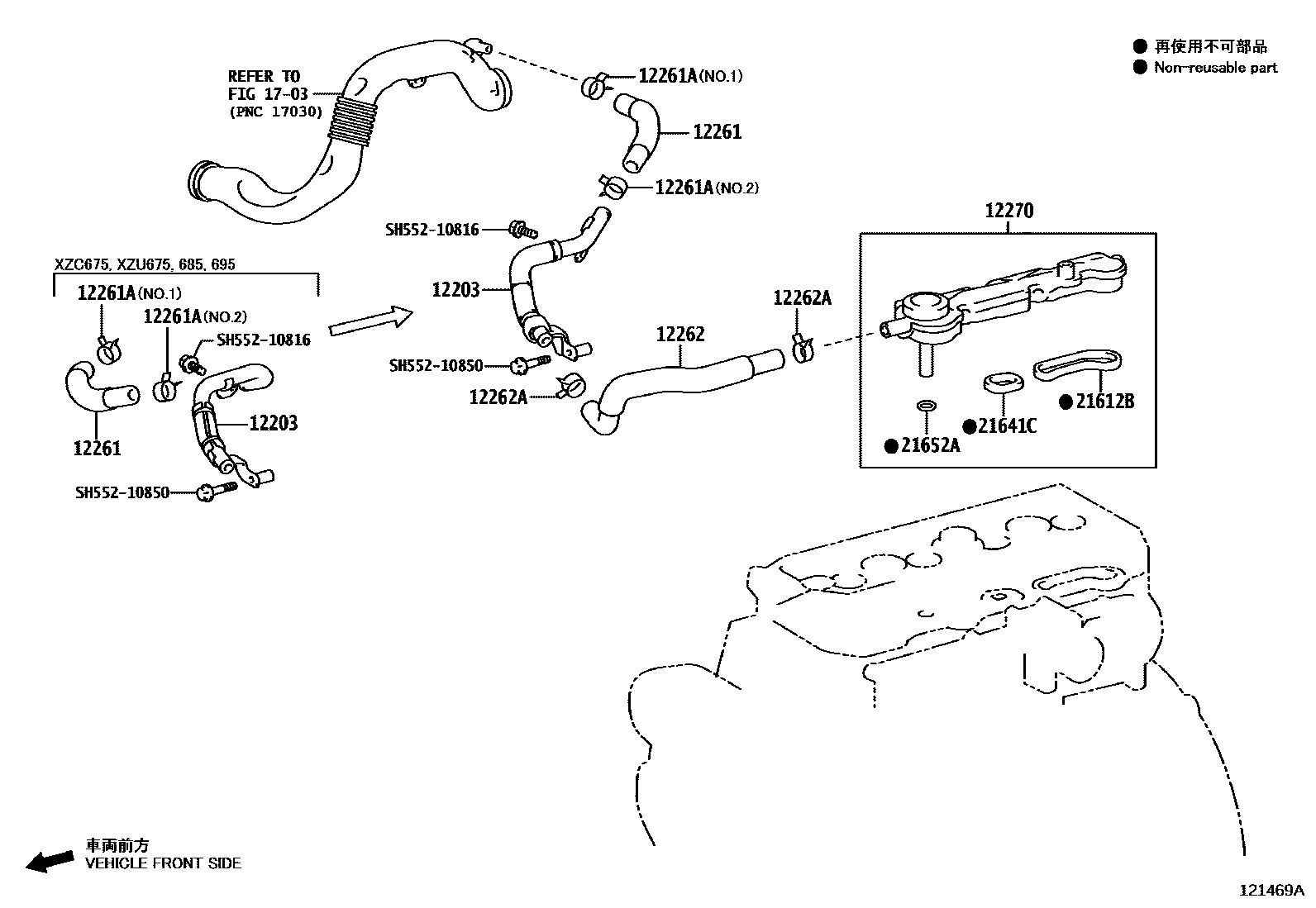

VENTILATION HOSE

12203PIPE SUB-ASSY, VENTILATION

main12203-78291iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

main12203-78300iN04C..XZC675,XZU675,685,695202103

12261HOSE, VENTILATION

main12261-78810iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202103

main12261-78830iN04C..XZC675,XZU675,685,695202103

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main96136-42901iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

mainSZ46628001iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

12262HOSE, VENTILATION, NO.2

main12261-78800iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

12262ACLIP(FOR VENTILATION HOSE NO.2)

main96136-42901×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

12270SEPARATOR ASSY, OIL

main12270-78051iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

1703AIR CLEANER

→ Go to FIG 17-03

21612BGASKET

main21612-78050iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

21641CGASKET

main21641-78050iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

21652ARING, O

main21652-78050iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

SH55210816

mainSH552-10816

SH55210850

mainSH552-10850

12 parts on this diagram · 1 diagram in section
