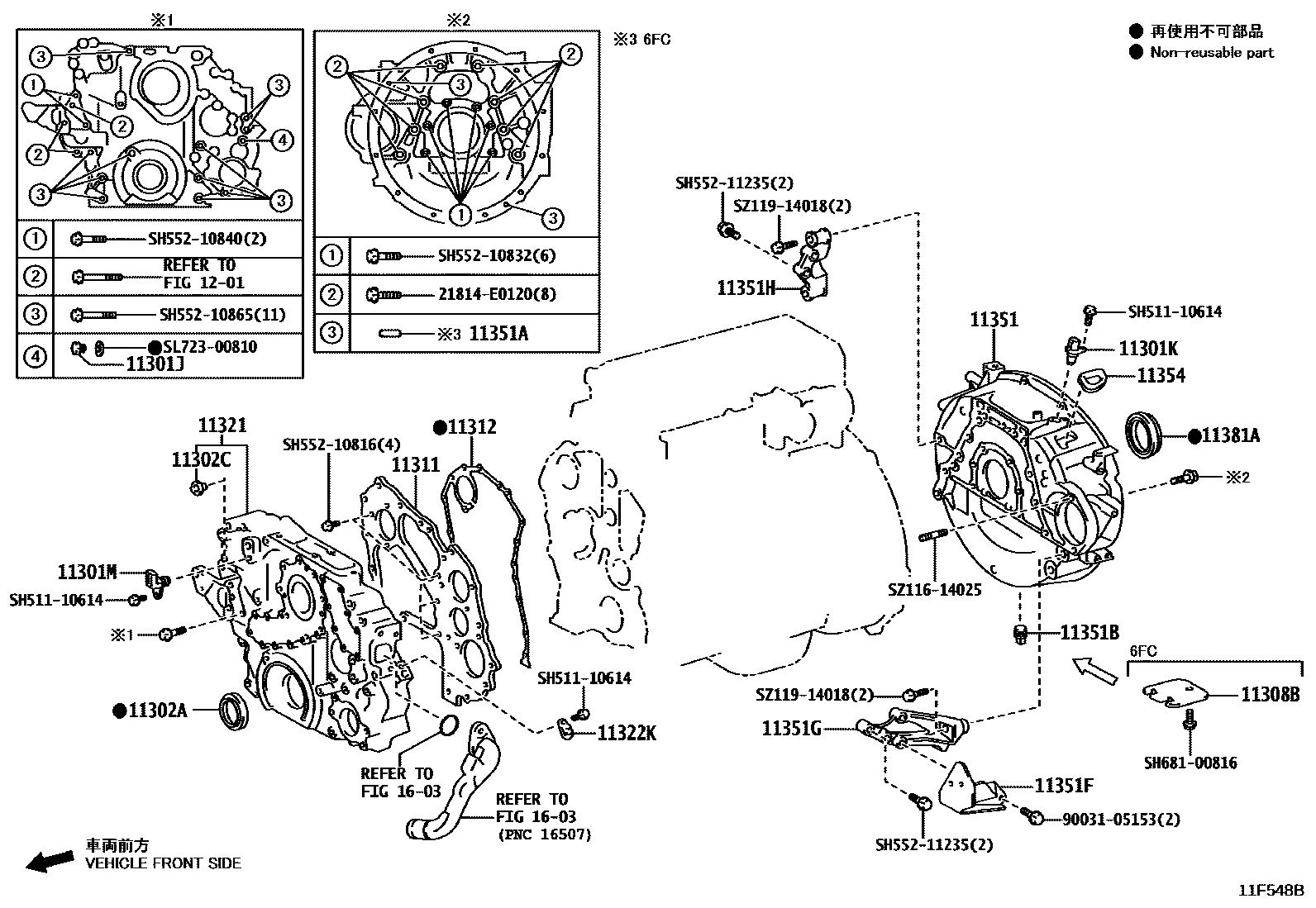

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

mainSZ34108001iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11301KSENSOR, CRANK POSITION

main89411-E0050iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11301MSENSOR, CAM POSITION

mainS894101570iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

mainSZ31358002iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11302CSPACER(FOR TIMING GEAR COVER)

main21557-E0680iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11308BCOVER(FOR FLYWHEEL HOUSING)

mainS113611570iN04C..XZU640..6FC;N04C..XZU640..6F..IV4;N04C..XZU600,685..IV4,IV7;N04C..XZC60#,645,655,XZU60#,642,645,65#..6FC..(CBU,IV3,IV5,IV6)202103

11311PLATE, FRONT END

main11301-E0101iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11312GASKET, FRONT END PLATE

mainS113121170iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11321CASE, TIMING GEAR

main11310-78110iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202408

main11310-78111iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202409

11322KPLUG, HOLE

main11306-E0190iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11351HOUSING, FLYWHEEL

main11351-78163iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)202103

main11351-78202iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..6F..(CBU,IV3,IV5,IV6)202103

main11351-78212iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6202103

mainS1103E0214iN04C..XZU600,640..IV4202103

mainS1103E0224iN04C..XZU685..IV4202103

mainS1103E0234iN04C..XZU600..IV7202103-202410

mainS1103E0235iN04C..XZU600..IV7202411

11351APIN, STRAIGHT(FOR FLYWHEEL HOUSING)

mainSM21200824×2iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC202103

11351BPLUG, HOLE(FOR FLYWHEEL HOUSING)

mainSN48001008iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV5,IV6)202103

11351FPLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING)

main33119-37081iN04C..XZU600,640..IV4202103

main33119-37100iN04C..XZC600,630,XZU600,602,630,640,642,650,652..SCB202103

11351GSTAY, LH(FOR FLYWHEEL HOUSING)

main11353-78080iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202310

main11353-E0060iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202310

11351HSTAY, RH(FOR FLYWHEEL HOUSING)

mainS113562030iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11354SEAL, FLYWHEEL HOUSING DUST

main11354-E0060iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

11381ASEAL, ENGINE REAR OIL

main23129-E0070iN04C..XZU600,640,685..IV4,IV7202103

mainSZ31100004iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

1201VENTILATION HOSE

→ Go to FIG 12-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

21814E0120BOLT, FUEL INLET

main21814-E0120

9003105153

main90031-05153

SH51110614

mainSH511-10614

SH55210816

mainSH552-10816

SH55210832

mainSH552-10832

SH55210840

mainSH552-10840

SH55210865

mainSH552-10865

SH55211235

mainSH552-11235

SH68100816

mainSH681-00816

SL72300810

mainSL723-00810

SZ11614025

mainSZ116-14025

SZ11914018

mainSZ119-14018

32 parts on this diagram · 3 diagrams in section
