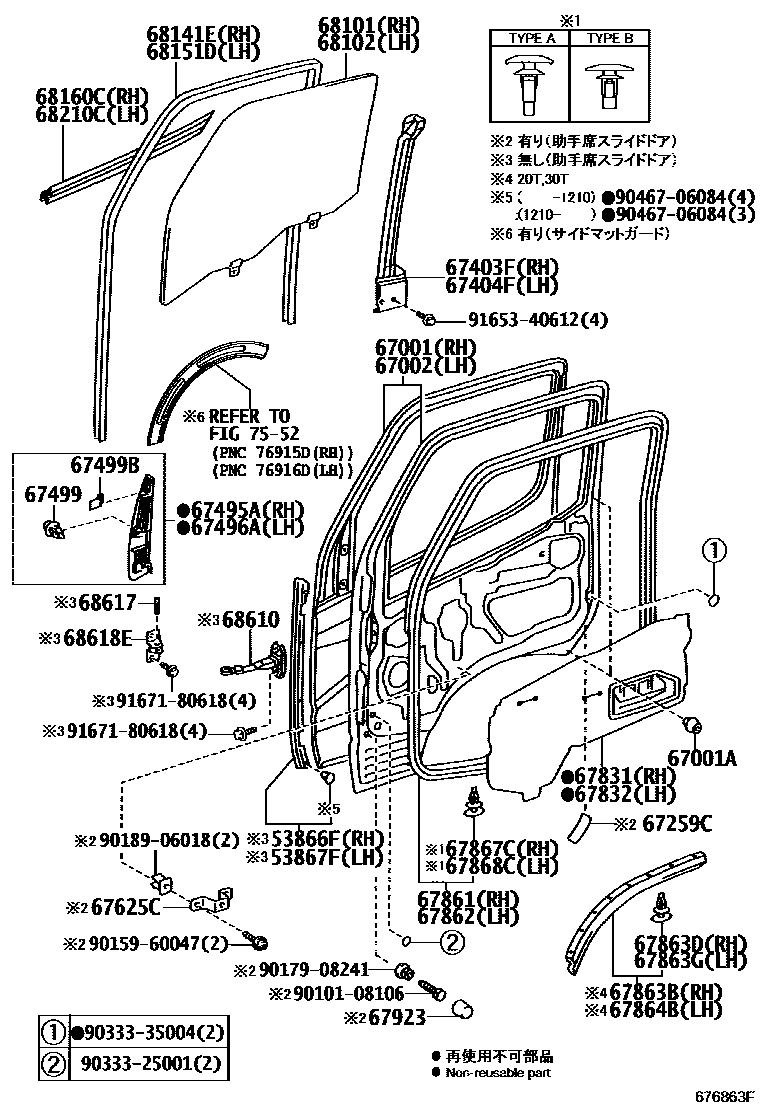

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������ 0003 1������,��������(����������)

53866FSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-37041iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201210

sub53866-37042

main53866-37042iTRC600..T4;XZC605..06S;TRU600..T4..IV3201210-201705

53867FSEAL, FR FENDER TO COWL SIDE, LH

main53867-37031iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201210

sub53867-37032

main53867-37032iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201210-201705

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-37351iXZC655,XZU65#,695..(20T,30T)..CBU;BZU600,TRC600,TRU600,XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)201107-201210

sub67001-37352

sub53866-37042

main67001-37352iXZC655,XZU650,655,695..DCRWD..IV3201210-201912

main67001-37352iBZU600..CBU,IV3201210-201605

main67001-37352iXZC655,XZU650,655,695..(DCRTJ,DCRTK)..IV3201705

main67001-37361iXZC655,XZU65#,695..(20T,30T)..IV3201107-201210

sub67001-37362

sub53866-37042

main67001-37362iXZC655,XZU650,655,695..DCRWD..IV3201905-201912

main67001-37362iXZC655,XZU650,655,695..(DCRTJ,DCRTK)..IV3201705

main67001-37362iXZU650..20T..IV3;XZC655,XZU655,695..IV3201210-201705

main67001-37372iXZU650..35T..(IV3,IV6)201107-201210

sub67001-37373

sub53866-37042

main67001-37373iXZU640..IV6201210-201604

sub67001-37374

main67001-37373iXZU650..35T..CBU201210-201604

sub67001-37374

main67001-37374iXZU640,642..IV6201905

main67001-37374iXZU650..DCRTK..(IV3,IV6)201605-201705

main67001-37374iXZU650..DCRTK..(IV3,IV6)201605-201705

main67001-37374iXZU650,652..(DCRTK,DCRVT)..(IV3,IV6)201705

main67001-37374iXZU650,652..(DCRTK,DCRVT)..(IV3,IV6)201705

main67001-37374iXZU650..DCVTO;XZU652..IV3,IV6201905

main67001-37382iXZU650..35T..IV3201107-201210

sub67001-37383

sub53866-37042

main67001-37383iXZU600..6FC..40T201210-201505

sub67001-37384

main67001-37383iXZU600..6F;XZU600..IV5;XZU650..35T..CBU;BZU600,XZU640..IV5,IV6201210-201604

sub67001-37384

main67001-37384iXZU652..DCRTK..CBU;XZU600..(DCRTJ,DCRVT)..(IV5,IV6);XZU602,640,642..(DCRTK,DCRVT)..IV6201705

main67001-37384iXZU600..IV5;XZU600,640..40T;XZU650..DCRTK..CBU201605-201705

main67001-37384iBZU600..IV5201605

main67001-37610iXZC655,XZU650,655,695..DCRWD..IV3202001

main67001-37620iXZC655,XZU650,655,695..DCRWD..CBU202001

67001ACUSHION, FRONT DOOR PANEL

main90541-09031iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-37371iXZC655,XZU65#,695..(20T,30T)..IV3201107-201210

sub67002-37372

sub53867-37032

main67002-37372iTRC600..T4;XZC605..06S;TRU600..T4..IV3201210-201605

sub67002-37373

main67002-37372iXZU650..20T..IV3;XZC655,XZU655,695..IV3201210-201705

sub67002-37373

main67002-37372iXZC655,XZU650,655,695..(DCRTJ,DCRTK)..IV3201705

sub67002-37373

main67002-37381iXZC655,XZU65#,695..(20T,30T)..IV3201107-201210

sub67002-37382

sub53867-37032

main67002-37382iXZU650..20T..IV3;XZC655,XZU655,695..IV3201210-201705

sub67002-37383

main67002-37382iXZC655,XZU650,655,695..(DCRTJ,DCRTK)..IV3201705

sub67002-37383

main67002-37382iXZC655,XZU650,655,695..DCRWD..IV3201905

sub67002-37383

main67002-37392iXZU650..35T..(IV3,IV6)201107-201210

sub67002-37393

sub53867-37032

main67002-37393iXZU640..IV6201210-201705

main67002-37393iXZU652..DCRTK..CBU201705

main67002-37393iXZU652..DCRTK..CBU201705

main67002-37393iXZU650..DCVTO;XZU652..IV3,IV6201905

main67002-37393iXZU650..DCVTO;XZU652..IV3,IV6201905

main67002-37393iXZU650..35T..(IV3,IV6)201210-201705

main67002-37412iXZU650..35T..IV3201107-201210

sub67002-37413

sub53867-37032

main67002-37413iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV5)201210-201705

sub67002-37414

main67002-37413iXZU652..DCRTK..CBU;XZU600..(DCRTJ,DCRVT)..(IV5,IV6);XZU602,640,642..(DCRTK,DCRVT)..IV6201705

sub67002-37414

main67002-37413iXZU600..6FC..40T201210-201505

sub67002-37414

67259CREFLECTOR, FRONT SLIDE DOOR

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-202003

sub67403-37021

main67403-37021iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202004

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-37020iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107-202003

sub67404-37021

main67404-37021iBZU600202004

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-37010iBZU600201107-201705

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-37010iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12050iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2

main67499-37010iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

67625CBRACKET, DOOR TRIM, NO.1

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-37050iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-37060iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-37021iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,201107-201705

main67861-37021iXZU640,650..(DCRTK,DCRVT)..(IV4,IV6);XZU600,605,655,685..DCB..(DCRTH,DCRTJ,DCRTK);XZC605,XZU600,602,642,652,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main67861-89112iBZU600201605-201705

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-37021iXZU640,650..(DCRTK,DCRVT)..(IV4,IV6);XZU600,605,655,685..DCB..(DCRTH,DCRTJ,DCRTK);XZC605,XZU600,602,642,652,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201705

main67862-89111iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD201605-201705

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-37011iXZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC605,XZU650..(03S,T2,T3,T4,T5)..20T;XZC600,610,630,645201107-201705

main67863-37021iXZU600..IV5201107-201705

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150iXZC60#,610..DCRTH,DCRTJ;XZC630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV4,IV6,IV7)201107-201705

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150iBZU600..IV5201107-201705

main67867-12150iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-37011iXZU600..IV5201107-201705

main67864-37011iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main67864-37021iXZU605..IV5201107-201705

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

main67867-89103iBZU600201107-201705

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main67867-12150iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

main67867-89103iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-37020

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-37130iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main68101-37130iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-37140iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

main68102-37140iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

68141ERUN, FRONT DOOR GLASS, RH

main68141-37030iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

68151DRUN, FRONT DOOR GLASS, LH

main68151-37030iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-37011iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-37011iBZU600201107-201705

68610CHECK ASSY, FRONT DOOR

main68610-37030iBZU600..CBU,IV3201107-201705

main68610-37030iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201605

main68610-37040iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F.201905

main68610-37040iXZU600..IV5201107-201705

main68610-37040iBZU600..IV5201107

68617PIN, FRONT DOOR CHECK

main68617-20011iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201605

main68617-20011iXZU600..IV5201107-201705

68618EBRACKET, FRONT DOOR CHECK ARM

main68618-37020iBZU600..IV5201107-201705

main68618-37020iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201605

7552

9010108106

main90101-08106

9015960047

main90159-60047

9017908241

main90179-08241

9018906018

main90189-06018

9033325001

main90333-25001

9033335004

main90333-35004

9046706084

main90467-06084

9165340612

main91653-40612

9167180618

main91671-80618

43 parts on this diagram · 3 diagrams in section
