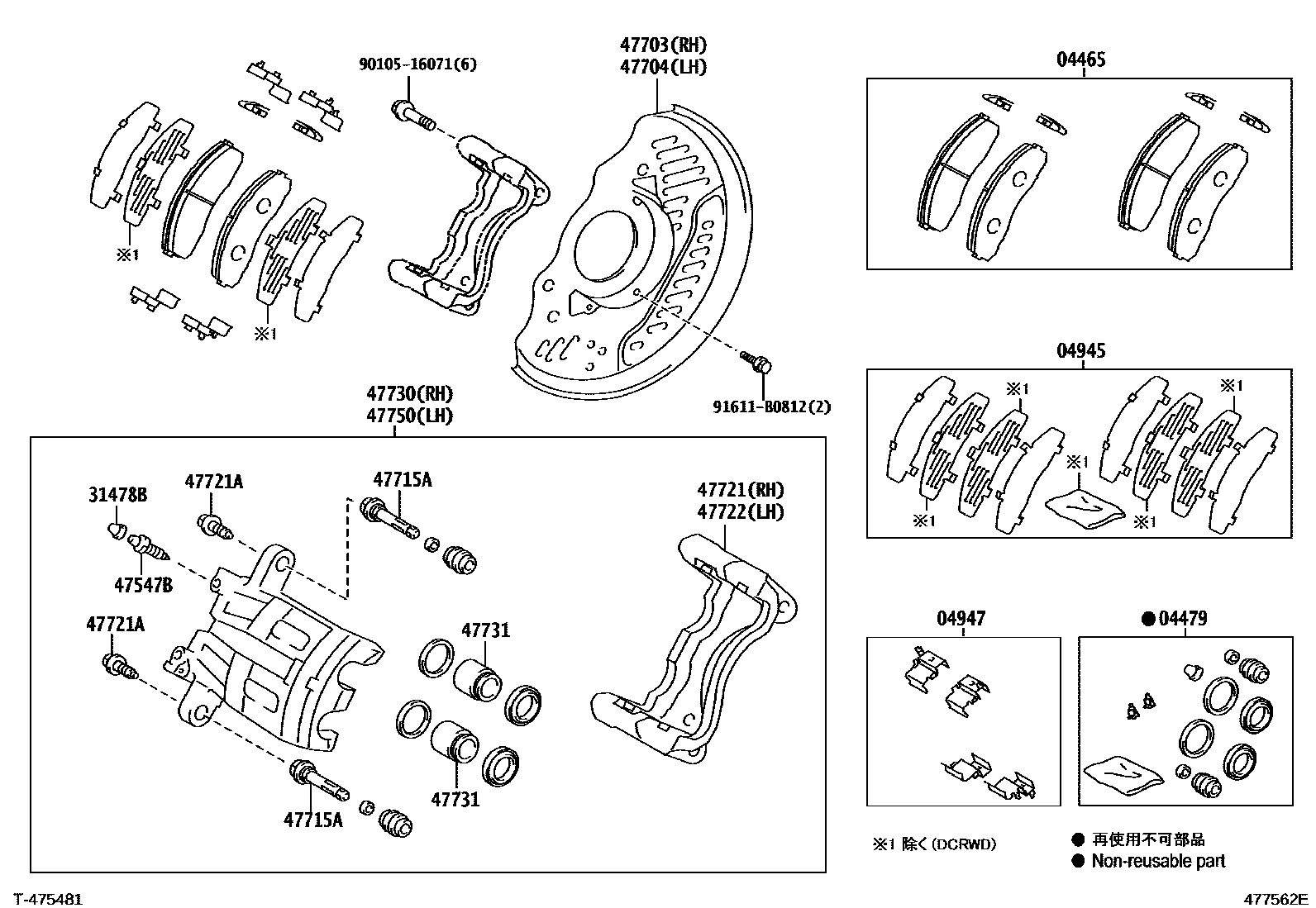

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37220iXZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT201107-201705

main04465-37230iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201705

main04465-37240iXZU60#,610,645,65#..(DM5,T4)..20T201107-201705

main04465-37250iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201505

04479CYLINDER KIT, DISC BRAKE, FRONT

main0447B-37010×2iXZC60#,630,645,655201905

main0447B-37021×2iBZU600201107

main0447B-37030×2iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201705

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37020iXZU600,605,610,645,650,655..(DM5,T4)..20T..(DCRTH,DCRTJ,DCRTK)201705

main04945-37030iXZU655..(T2,T3)..20T..DCRTJ;XZC675,XZU640,675,685,695..DCRTJ,DCRTK;XZU605,645,655..(T3,T4)..30T..(DCRTJ,DCRTK);XZC600,XZU600,605,620,630,650..(DM3,DM5,DM6,DM7,T2,T3,T5)..(DCRTH,DCRTJ,DCRTK)201705

main04945-37050iXZU600,640,650..35T,40T201107-201309

main04945-37051iXZU600,602,640,642,650,652..35T,40T201905

main04945-37150iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201705

main04945-37220iBZU600..T4..20T; XZU600,605,645,650,655..(DM5,T4)..20T201905

main04945-37230iBZU600..30T;BZU600..IV5; XZU650..T3..DCRWD;XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..DCRWD;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T201905

main04945-37240iXZC60#,630,645,655201905

04947FITTING KIT, DISC BRAKE, FRONT

main0494A-37010×2iXZC60#,610,630,645,655..WT201107-201705

main0494A-37020×2iXZC600,XZU610,620,630..(DM5,DM7,T5)..(DCRTH,DCRTJ,DCRTK);XZC675,XZU600,605,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK201705

main0494A-37030×2iXZU600,640,650..35T,40T201107-201705

main0494A-37050×2iBZU600; XZC675,XZU600,605,630,640,645,650,655,675,685,695..DCRWD201905

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK201705

main31478-37030×2iXZU600,640,650..35T,40T201107-201705

mainS475381190×2iXZU600,602,640,642,650,652..35T,40T202006

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI)201107

main47547-12030×2iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201705

main47847-37030×2iXZU600,640,650..35T,40T201107-201705

mainS475371360×2iXZU600,602,640,642,650,652..35T,40T202006

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXZC600,630,XZU600,630,640,650..DCRWD201905-202002

main47703-37031iBZU600; XZC600,630,XZU600,630,640,650..DCRWD202003

main47703-37041iXZC605,645,655,XZU605,645,655201107-201511

main47703-37042iXZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK201705-201806

main47703-37043iXZC605,645,655,XZU605,645,655201905

main47703-37070iXZU600,602,640,642,650,652..35T,40T201905

main47781-37090iXZC675,XZU675,685,695201905

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iXZC600,630,XZU600,630,640,650..DCRWD201905-202002

main47704-37031iBZU600; XZC600,630,XZU600,630,640,650..DCRWD202003

main47704-37041iXZC605,645,655,XZU605,645,655201107-201511

main47704-37042iXZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK201705-201806

main47704-37043iXZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK201807

main47704-37070iXZU600,602,640,642,650,652..35T,40T201905

main47782-37070iXZC675,XZU675,685,695201107-201705

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-37120×2iXZU600..6FC..40T201107-201505

main47714-37121×2iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201705

main47715-37260×4iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201705

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37020iXZU600,610,650..(DM5,T4)..(DCRTJ,DCRTK)201705

main47721-37030iBZU600,XZU650..30T..(DCRTJ,DCRTK,LPG);XZU600..(DM3,DM6,T3,T5)..(20T,30T)..(DCRTJ,DCRTK);TRU600,XZU620,630,640..(20T,30T)..(DCRTJ,DCRTK,EFI);BZU600,XZC600,XZU650..(DM6,T3,T5)..20T..(DCRTH,DCRTJ,LPG)201107

main47721-37050iXZU605,645,655..T4..20T201107-201705

main47721-37160iXZU600,602,640,642,650,652..35T,40T201905

main47721-37180iXZU605,645,655..30T;XZC675,XZU675,685,695;XZU605,655..(DM6,T2,T3,T5)..20T201905

main47721-37250iXZC600,610,630..WT..(DCRTH,DCRTJ)201705

main47721-37260iXZC605,645,655..DCRTH,DCRTJ201705

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA601×4iXZC60#,610,630,645,655..WT201107-201705

main90105-37120×4iXZU600,640,650..35T,40T201107-201705

main90119-08B87×4iBZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI)201107

main90119-12256×4iBZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI)201107

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-37050iXZU605,645,655..T4..20T..(DCRTH,DCRTJ,DCRTK)201705

main47721-37180iXZU655..(T2,T3)..20T..DCRTJ;XZU605..(T2,T5)..(DCRTJ,DCRTK);XZC675,XZU675,685,695..DCRTJ,DCRTK;XZU605,645,655..(T3,T4)..30T..(DCRTJ,DCRTK)201705

main47721-37260iXZC605,645,655201905

main47722-37010iXZU600,650..(DM5,T4)..20T201905

main47722-37020iXZU640..DCRTJ,DCRTK;XZC600,XZU600,620,630,650..(DM3,DM5,DM6,DM7,T3,T5)..(DCRTH,DCRTJ,DCRTK)201705

main47722-37160iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201705

main47722-37250iXZC600,610,630..WT..(DCRTH,DCRTJ)201705

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37010iXZU605,645,655..T4..20T201107-201705

main47730-37020iXZU600,650..(DM5,T4)..20T201905

main47730-37030iXZU640..DCRTJ,DCRTK;XZC600,XZU600,620,630,650..(DM3,DM5,DM6,DM7,T3,T5)..(DCRTH,DCRTJ,DCRTK)201705

main47730-37161iXZU600,640,650..35T,40T201107-201702

main47730-37162iXZU600,640,650..6F201702-201705

main47730-37180iXZU605,645,655..30T;XZC675,XZU675,685,695;XZU605,655..(DM6,T2,T3,T5)..20T201905

main47730-37252iXZC600,630201905

main47730-37262iXZC605,645,655..DCRTH,DCRTJ201705

47731PISTON, FRONT DISC BRAKE

main47731-36020×4iBZU600; XZC675,XZU600,605,630,640,645,650,655,675,685,695..DCRWD201912

main47731-37010×4iXZC675,XZU600,605,630,640,645,650,655,675,685,695..DCRWD201905-201911

main47731-37120×4iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201705

main47731-60070×4iXZC60#,630,645,655201905

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37010iXZU605,645,655..T4..20T201107-201705

main47750-37020iXZU600,610,650..(DM5,T4)..(DCRTJ,DCRTK)201705

main47750-37030iXZU600..30T;XZU600..DM3,DM6;XZU630,640..DCRWD;XZU650..T3..DCRWD201905

main47750-37161iXZU600,640,650..35T,40T201107-201702

main47750-37162iXZU600,640,650..6F201702-201705

main47750-37180iXZU655..(T2,T3)..20T..DCRTJ;XZU605..(T2,T5)..(DCRTJ,DCRTK);XZC675,XZU675,685,695..DCRTJ,DCRTK;XZU605,645,655..(T3,T4)..30T..(DCRTJ,DCRTK)201705

main47750-37252iXZC600,610,630..WT..(DCRTH,DCRTJ)201705

main47750-37262iXZC605,645,655..DCRTH,DCRTJ201705

9010516071

main90105-16071

91611B0812

main91611-B0812

17 parts on this diagram · 6 diagrams in section
