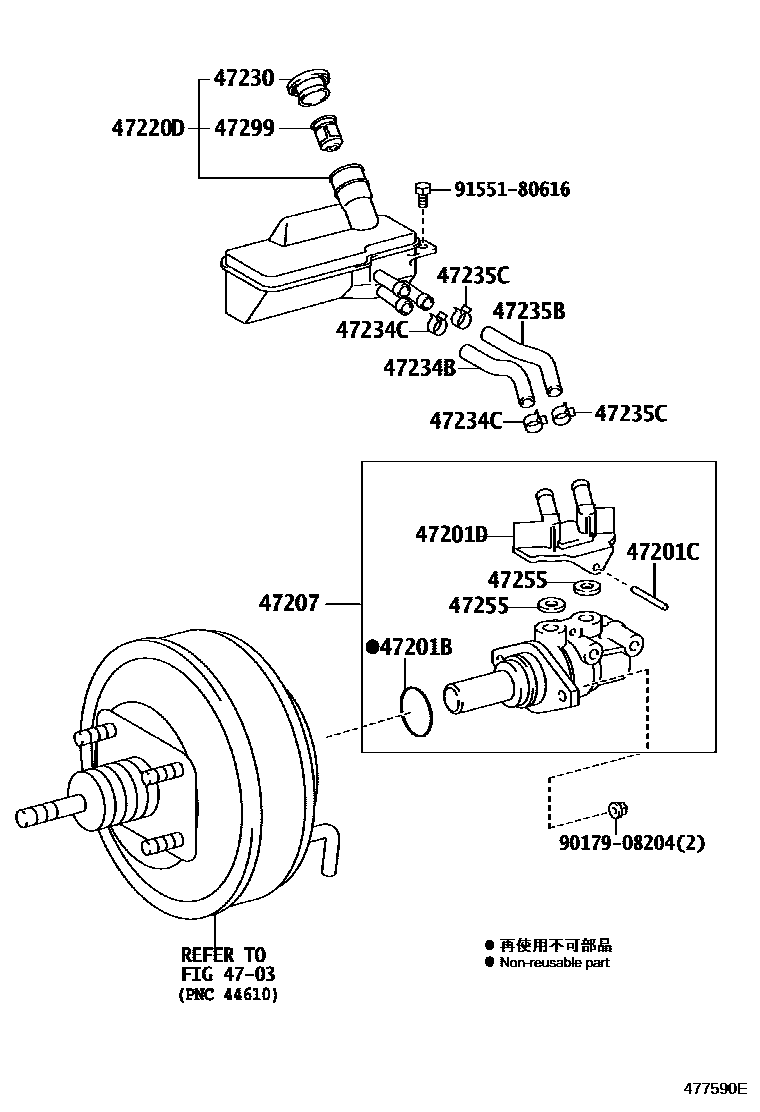

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37280iTRC600,TRU600201506-201605

main47201-37360iXZC675,XZU60#,630,64#,65#,675,685,695201905

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iXZC675,XZU600,605,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT;XZC600,XZU602,610,620,630,642,652..(DM5,DM7,T3,T5)..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main90015-AH002iXZC60#,610,630,645,655..WT201107-201705

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iXZC60#,610,630,645,655..WT201107-201705

47201DUNION, BRAKE MASTER CYLINDER, NO.1

main90015-AM007iXZC60#,610,630,645,655..WT201107-201705

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-37150iXZC60#,610,630,645,655..WT201107-201207

main47207-37151iXZC60#,610,630,645,655..WT201208-201705

main47207-37160iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201107-201506

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-37120iXZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM201107-201705

main47220-37160iXZC60#,645,655,XZU60#,64#,65#..6FC201905

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

47234BTUBE, RESERVOIR, NO.1

main47234-37170iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T201107-201705

main47234-37180iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201705

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500×2iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT201107-201705

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37160iBZU600201107

main47235-37170iXZC60#,630,645,655201905

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main96133-41500×2iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)201107-201505

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iXZC60#,610,630,645,655..WT201107-201705

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)201107-201505

9017908204

main90179-08204

9155180616

main91551-80616

16 parts on this diagram · 2 diagrams in section
