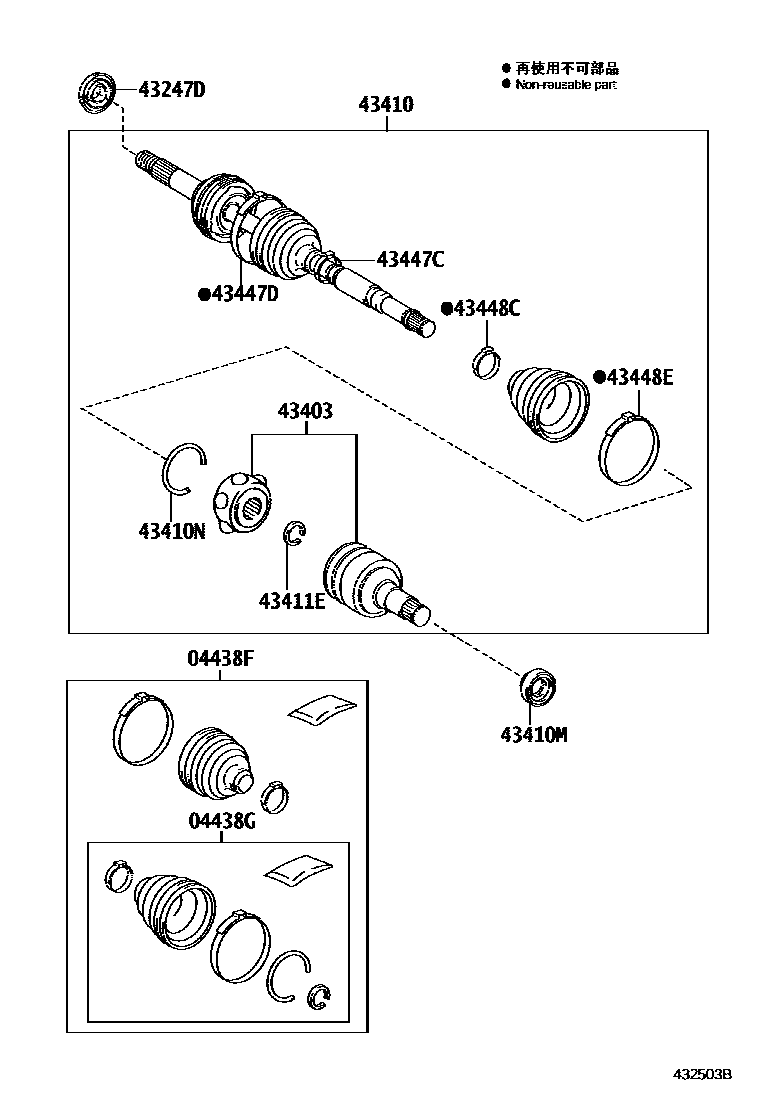

FRONT DRIVE SHAFT

0001 1������ 0002 1�������

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-37070iXZC675,XZU675,685,695201107-201705

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-37040iXZC675,XZU675,685,695201107-201705

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43246-37010iXZC675,XZU675,685,695201107-201705

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-37011iXZC675,XZU675,685,695201107-201705

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-37011iXZC675,XZU675,685,695201107-201705

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90033-10006iXZC675,XZU675,685,695201107-201705

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-80003iXZC675,XZU675,685,695201107-201705

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-26037iXZC675,XZU675,685,695201107-201705

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-37020iXZC675,XZU675,685,695201107-201705

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-37040iXZC675,XZU675,685,695201107-201705

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-37020iXZC675,XZU675,685,695201107-201705

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-37030iXZC675,XZU675,685,695201107-201705

12 parts on this diagram · 2 diagrams in section
