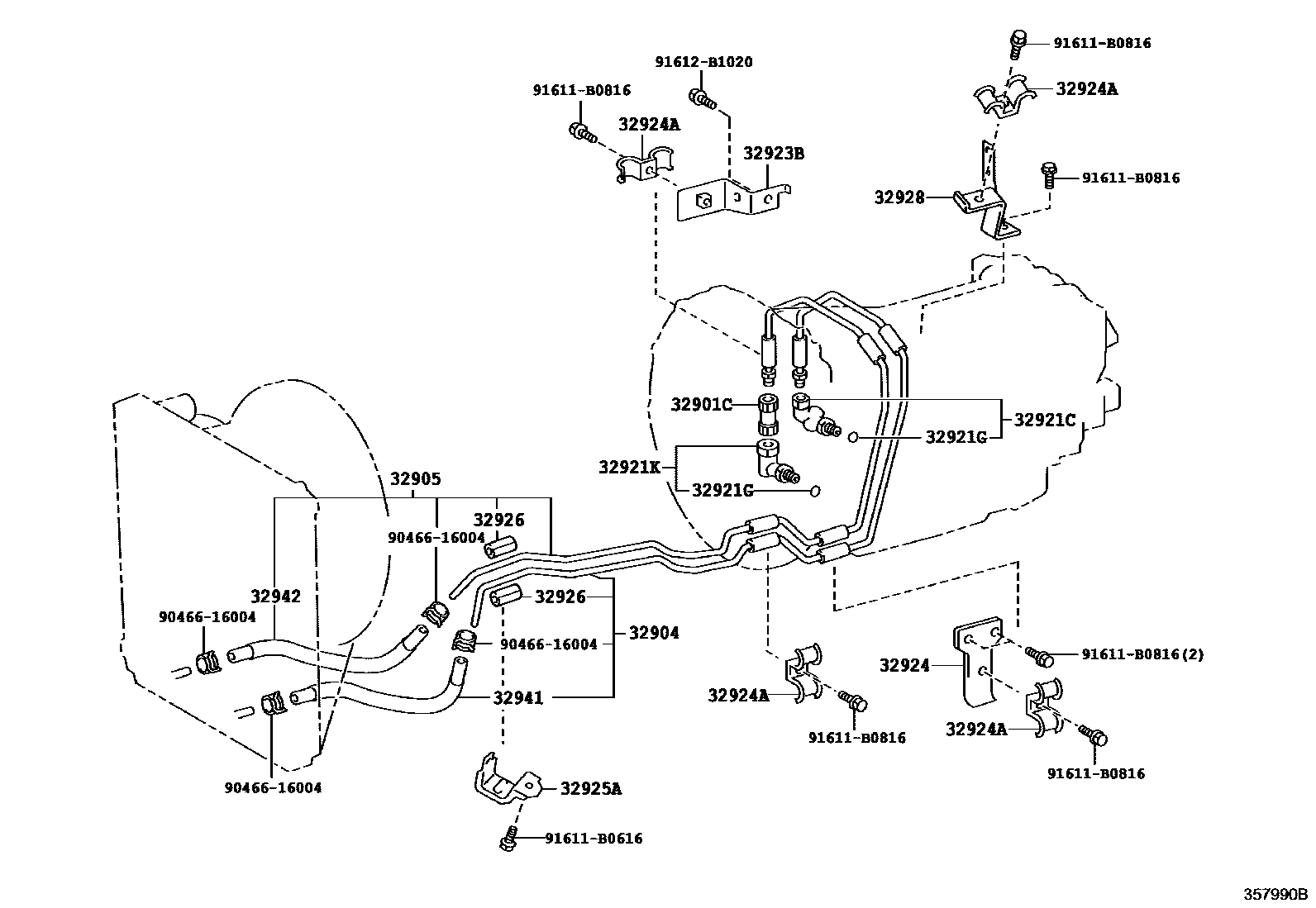

OIL COOLER & TUBE (ATM)

0001 1A860E 0002 1A860E

32901CUNION SUB-ASSY, OIL COOLER

main32901-37030iXZC60#,645,655,XZU60#,64#,65#..6FC201905

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-37153iXZU600,640..6FC..DCRTK..IV4201705

main32904-37191iXZC60#,610,630,645,655,XZU600,605,610,620,64#,650,655..6FC..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6)201705

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main32905-37191iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

main32905-37260iXZU600,640..6FC..DCRTK..IV4201705

32921CUNION(FOR OIL COOLER TUBE)

main90407-20010iXZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT201107-201705

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

32921KUNION, NO.2(FOR OIL COOLER TUBE)

main90407-20009iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32927-37021iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-37011iXZC60#,645,655,XZU60#,64#,65#..6FC201905

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-37010iXZC605..06S..6FC201107-201605

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12076×3iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

32925ACLAMP, FLEXIBLE HOSE, NO.2

main32929-25020iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×10iXZC605..06S..6FC201107-201605

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-37041iXZC60#,610,630,645,655,XZU600,605,610,620,64#,650,655..6FC..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

32941HOSE, OIL COOLER INLET, NO.1

main32941-37120iXZU600,640..6FC..DCRTK..IV4201705

main32941-37150iXZC60#,610,630,645,655,XZU600,605,610,620,64#,650,655..6FC..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6)201705

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-37120iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

main32942-37150iXZU600,640..6FC..DCRTK..IV4201705

9046616004

main90466-16004

91611B0616

main91611-B0616

91611B0816

main91611-B0816

91612B1020

main91612-B1020

19 parts on this diagram · 2 diagrams in section
