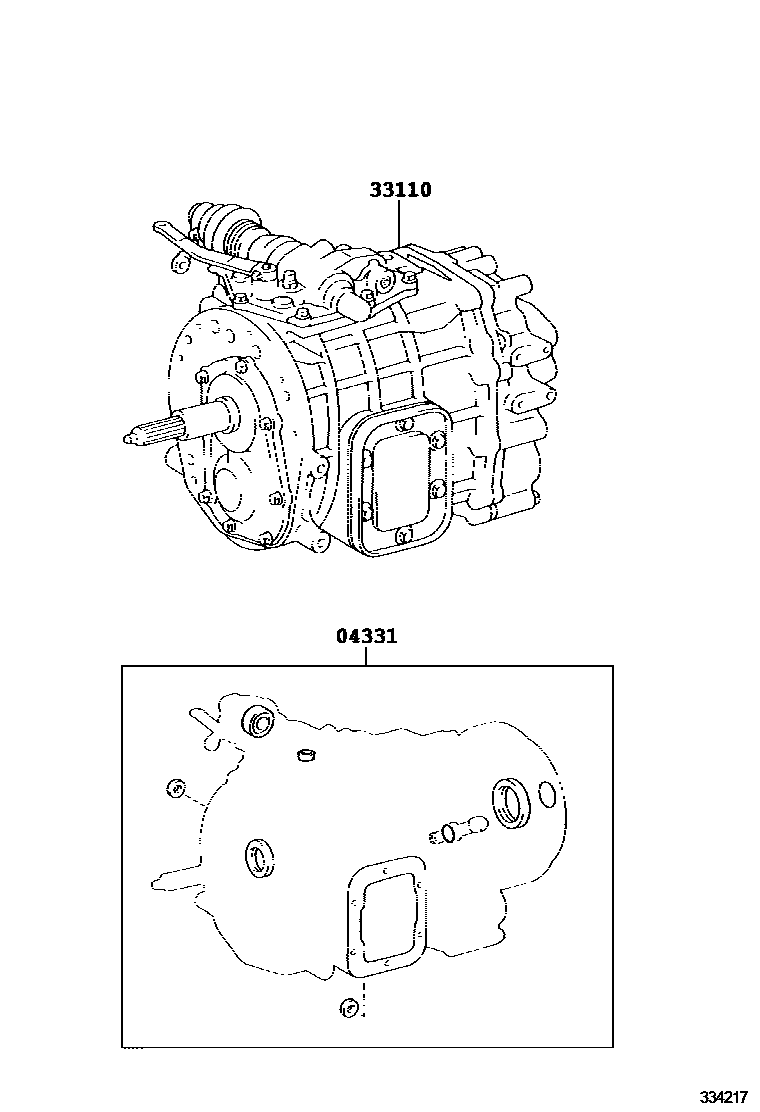

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M153 0002 1H351 0003 1M550 0004 1MYY5A,MYY6S 0005 1RE60,RE62 0006 1RE50F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36430iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3201107-201505

main04331-36440iXZC605..06S..5F201107-201605

main04331-37070iBZU600201107

main04331-37440iXZU600,640,650..DCRVT201705

main04331-37450iXZC675,XZU675,685,695201905

33110TRANSMISSION ASSY, MANUAL

main33110-37G90iTRC600..DM5201107-201505

main33110-37J00iTRC600..T4;TRU600..T4..IV3201107-201605

main33110-37J10iBZU600201107

main33110-37J20iXZC610,630,XZU610,620,630..5F201107-201408

main33110-37J21iXZC610,630,XZU610,620,630..5F201705

main33110-37J30iXZU600,640,650..6F201107-201408

main33110-37J31iXZU600,640,650..6F201409-201705

main33110-37J40iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201107-201207

main33110-37J41iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201207-201309

main33110-37J42iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201309-201407

main33110-37J43iXZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201408-201506

main33110-37J44iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201506-201606

main33110-37J45iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201607-201608

main33110-37J46iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201608-201705

main33110-37J47iXZC60#,645,655,XZU600,605,640,645,650,655..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)201706

main33110-37J50iXZC605,XZU600,640..(DCB,VAN)..5F201107-201207

main33110-37J51iXZC605,XZU600,640..(DCB,VAN)..5F201207-201309

main33110-37J52iXZC605,XZU600,640..(DCB,VAN)..5F201309-201506

main33110-37J53iXZC605,XZU600,640..(DCB,VAN)..(03S,T3)..5F201506-201606

main33110-37J54iXZC605,XZU600,640..(DCB,VAN)..5F201607-201608

main33110-37J55iXZC605,XZU600,640..(DCB,VAN)..5F201705-201706

main33110-37J56iXZC605,XZU600,640..(DCB,VAN)..5F201706

main33110-37J60iXZU600..IV7201107-201207

main33110-37J61iXZU600..IV7201207-201309

main33110-37J62iXZU600..IV7201309-201506

main33110-37J63iXZU600..IV7201506-201606

main33110-37J64iXZU600..IV7201607-201608

main33110-37J65iXZU600..IV7201705-201706

main33110-37J66iXZU600..DCRTK..IV7201706

main33110-37M21iXZU600,640,650..DCRVT201705-201903

main33110-37P10iXZU600,640,650..DCRVT201903-201905

main33110-37P80iXZC675,XZU675,685,695201905

main33110-37Q00iXZC60#,630,645,655,XZU60#,630,64#,65#..6F201905

2 parts on this diagram · 6 diagrams in section
