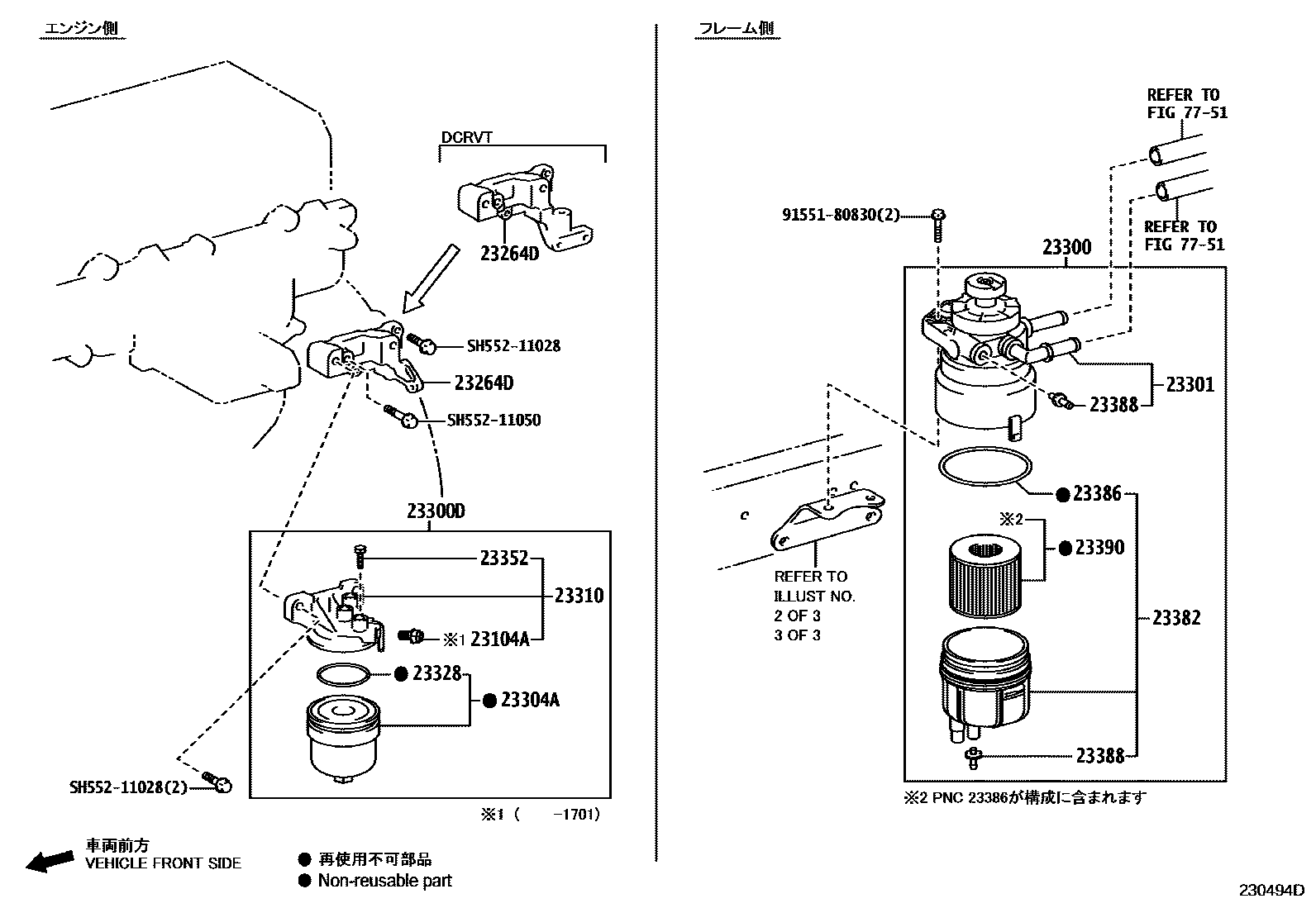

FUEL FILTER
23104AVALVE SUB-ASSY
main23104-EV010iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201701
23264DBRACKET, FUEL FILTER
23300FILTER ASSY, FUEL
main23300-78225iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(CBU,IV3,IV5,IV6,IV7)201705-201803
main23300-78226iN04C..XZC600,610,630,645,655,675..DCRTH,DCRTJ;N04C..XZC605,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7)201804
main23300-78232supersedes 23300-78224iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(CBU,IV3,IV5,IV6,IV7)201107-201311
main23300-78233supersedes 23300-78224iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(CBU,IV3,IV5,IV6,IV7)201312-201409
main23300-78234supersedes 23300-78224iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(CBU,IV3,IV5,IV6,IV7)201410-201503
main23300-78235supersedes 23300-78225iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201504-201505
main23300-78236iN04C..XZC60#,XZU642..SCB;N04C..XZC610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7)201804-201902
main23300-78237iN04C..XZC600,610,630,645,655,675,XZU60#,610,620,640,652..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7);N04C..XZC605,XZU630,642,645,650,655,675,685,695..(DCB,SCB)..(20T,30T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV6)201903
main23300-78262supersedes 23300-78254iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201107-201311
main23300-78263supersedes 23300-78254iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201312-201409
main23300-78264supersedes 23300-78254iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201410-201503
main23300-78265supersedes 23300-78256iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201705-201803
main23300-78266supersedes 23300-78256iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201804-201902
main23300-78267supersedes 23300-78256iN04C..XZU685..DCRTK..IV4;N04C..XZC605,XZU600,640..(DCB,VAN)..(DCRTH,DCRTJ,DCRTK)201903
23300DFILTER ASSY, FUEL(FOR DIESEL)
main23300-78420iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705
main23300-E0381iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201306
main23300-E0382iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201306-201401
main23300-E0570iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201401-201505
23301BODY SUB-ASSY, FUEL FILTER
main23301-78224iN04C..XZC600,610,630,645,655,675..DCRTH,DCRTJ;N04C..XZC605,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7)201705
main23301-78232supersedes 23301-78223iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(CBU,IV3,IV5,IV6,IV7)201107-201304
main23301-78233supersedes 23301-78223iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(CBU,IV3,IV5,IV6,IV7)201304-201312
main23301-78234supersedes 23301-78224iN04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6)201312-201705
main23301-78237iN04C..XZC600,610,630,645,655,675,XZU60#,610,620,640,652..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7);N04C..XZC605,XZU630,642,645,650,655,675,685,695..(DCB,SCB)..(20T,30T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV6)201903
main23301-78262supersedes 23301-78253iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201107-201304
main23301-78263supersedes 23301-78253iN04C..XZU685..IV4;N04C..XZC605,XZU600,640..DCB,VAN201304-201312
main23301-78267supersedes 23301-78254iN04C..XZU685..DCRTK..IV4;N04C..XZC605,XZU600,640..(DCB,VAN)..(DCRTH,DCRTJ,DCRTK)201903
23304AELEMENT SET, FUEL FILTER
main23304-78420iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201701-201705
main23304-EV280iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201306-201701
23310BODY, FUEL FILTER, UPPER
main23310-78420iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201701-201705
main23310-EV090iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201306
main23310-EV091iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201306-201505
23328GASKET(FOR FUEL FILTER)
main23385-78420iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705
main23385-E0020iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505
23352PLUG, BLEEDER
main23388-78420iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201701-201705
mainS233161040iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201701
23382CASE, FUEL FILTER
main23382-78151iN04C..XZU600,605,655..DCB;N04C..XZU650..DCVTO..(CBU,IV6);N04C..XZC675,XZU642,675,685,695..DM5,T3,T4;N04C..XZU605,640,652..(DM6,T3)..(IV4,IV5,IV6)201905-201912
main23382-78152supersedes 23382-78151iN04C..XZU600,605,655..DCB;N04C..XZU650..DCVTO..(CBU,IV6);N04C..XZC675,XZU642,675,685,695..DM5,T3,T4;N04C..XZU605,640,652..(DM6,T3)..(IV4,IV5,IV6)201912
main23382-78222iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201410
main23382-78223iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201410-201505
23386GASKET, FUEL FILTER CASE
main23386-78220iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705
23388PLUG, FUEL FILTER DRAIN
main23388-78222×2iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705
23390ELEMENT ASSY, FUEL FILTER
main23304-78222iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201209-201504
main23390-78221iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201209
7751FUEL TANK & TUBE
9155180830
main91551-80830
SH55211028
mainSH552-11028
SH55211050
mainSH552-11050
17 parts on this diagram · 6 diagrams in section
