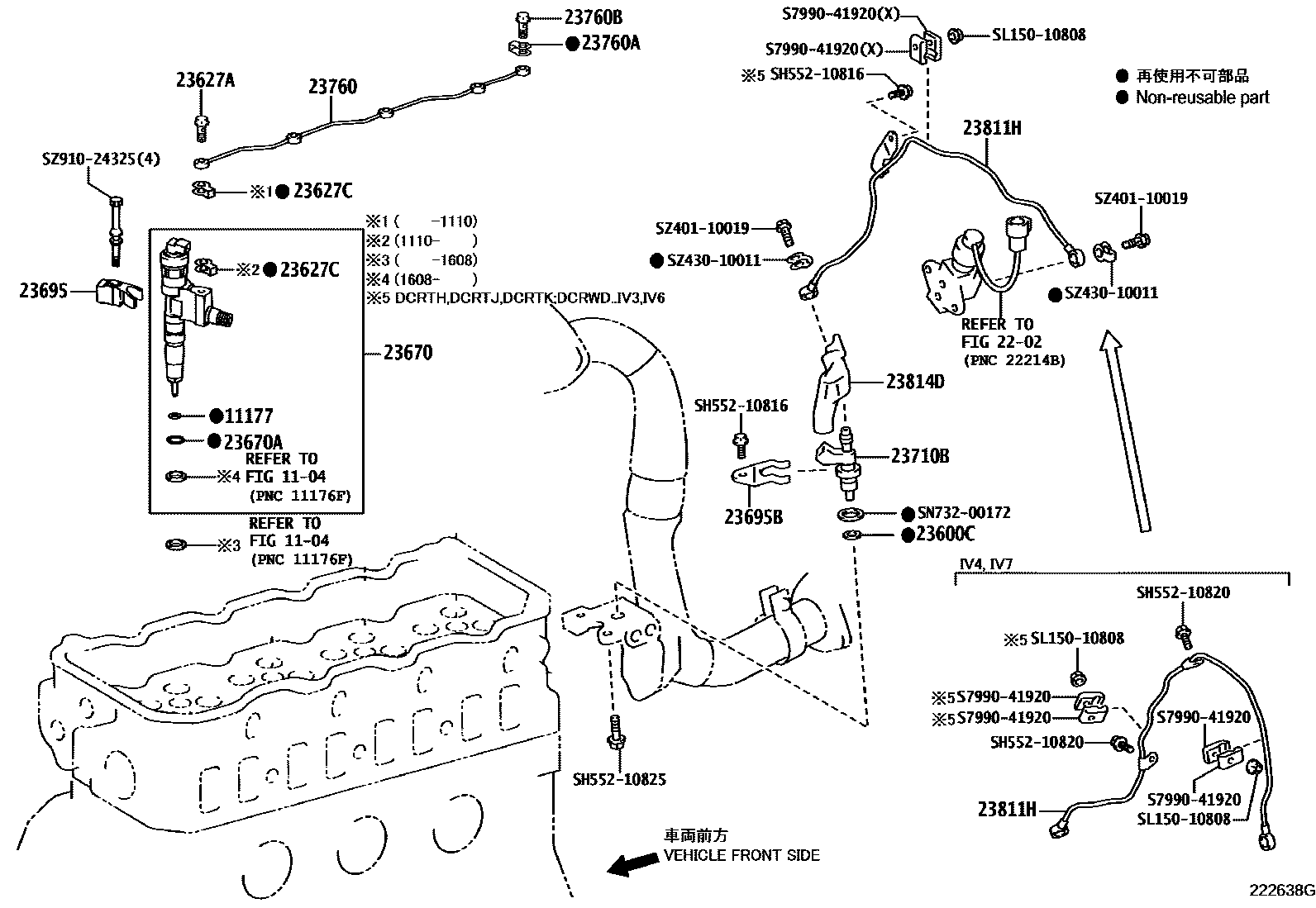

INJECTION NOZZLE

0001 1 0002 1

1104

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN04C..XZC605..06S201107-201705

2202

23600CGASKET(FOR HOLDER & NOZZLE SET)

mainS236611340iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201210-201705

mainS228351570iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201210

23627CWASHER(FOR NOZZLE)

mainSZ20908024iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

23670INJECTOR ASSY

main23670-E9250iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201109

sub23670-E9260

main23670-E9260iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201110-201507

sub23670-E9261

main23670-E9261iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5201508-201608

sub23670-E9262

main23670-E9262iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201608-201702

sub23670-E9263

main23670-E9263iN04C..XZU642..DCRTK,DCRVT;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..DCRTH,DCRTJ,DCRTK201702-201705

sub23670-E9264

main23670-E9300iN04C..XZU600,640,650..DCRVT201705-201811

sub23670-E9301

main23670-E9301iN04C..XZU600,640,650..DCRVT201811

23670ARING, O(FOR INJECTOR ASSY)

main15518-E0010iN04C..XZC605..06S201602-201701

subSZ301-19015

main15518-E0011iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201702-201705

mainSZ30119001iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201601

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-E0080iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-E0020iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201905

main23710-E0030iN04C..XZU600,640,650..DCRVT201705-202001

sub23710-E0031

main23710-E0031iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202002

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

mainS230812630iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201905

23760AGASKET

mainSZ20908024iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201210-201705

mainSZ40108003iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201210

sub21811-E0060

23811HPIPE, FUEL, NO.1

main23801-78080iN04C..XZU600,640,650..DCRVT201705

main23801-78251iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6201905

main23801-78262iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201905

main23801-78270iN04C..XZU600,640..IV4,IV7201905

main23801-78280iN04C..XZU685..IV4201905

main23801-E0300iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..CBU,IV3,IV5,IV6201107-201201

sub23801-E0301

main23801-E0301iN04C..XZU600,640,652..(DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6);N04C..XZC60#,610,630,645,655,XZU602,605,610,620,630,642,645,650,655..(20T,30T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201201-201705

main23801-E0310iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201107-201201

sub23801-E0311

main23801-E0311iN04C..XZC675,XZU675,685,695..(DCRTJ,DCRTK)..(CBU,IV3,IV6)201201-201705

main23801-E0321iN04C..XZU600,640..IV4,IV7201107-201201

sub23801-E0322

main23801-E0322iN04C..XZU600,640..DCRTK..(IV4,IV7)201201-201705

main23801-E0331iN04C..XZU685..IV4201107-201201

sub23801-E0332

main23801-E0332iN04C..XZU685..IV4201201-201705

23814DPIPE, FUEL DELIVERY

main23814-E0620iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201706

sub23814-E0621

main23814-E0621iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201707

S799041920CLIP SUB-ASSY

mainS7990-41920

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210825

mainSH552-10825

SL15010808

mainSL150-10808

SN73200172

mainSN732-00172

SZ40110019

mainSZ401-10019

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ91024325

mainSZ910-24325

25 parts on this diagram · 2 diagrams in section
