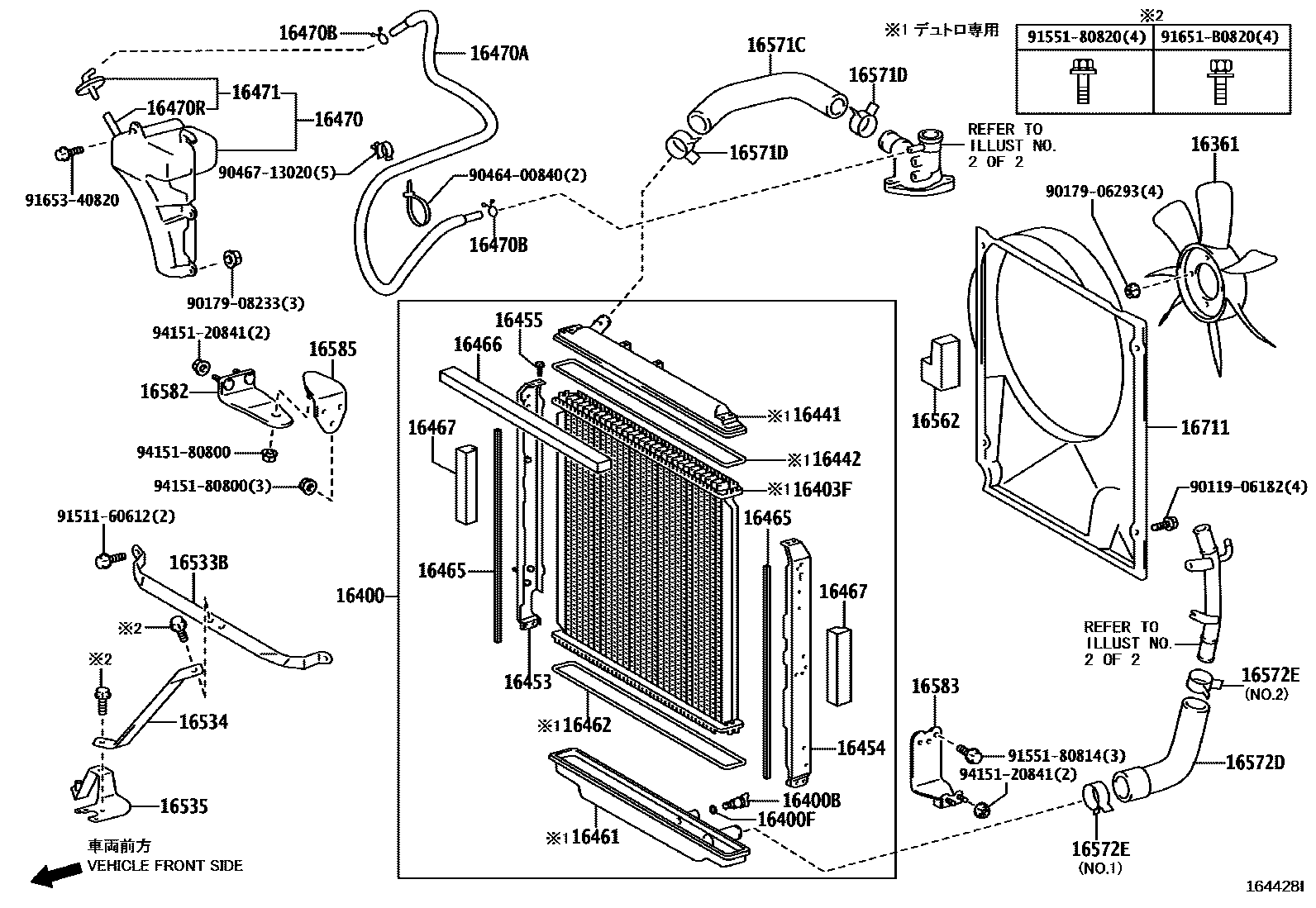

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1TOYOTA 0006 1HINO 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1

16361FAN

main16361-41071i2TRFE..TRC600,TRU600201107-201605

main16361-56070i1BZFPE..BZU600201107

main16361-78100iN04C..XZU642..DCRTK,DCRVT;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..DCRTH,DCRTJ,DCRTK201107-201705

main16361-78220iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main16361-E0610iN04C..XZU600,640,650..DCRVT201705

16400RADIATOR ASSY

main16400-75590i2TRFE..TRC600,TRU600201107-201605

main16400-78830iN04C..XZU650..5F..20T;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..5F..30T..DCRTJ..CBU;N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,201107-201705

sub16400-78831

main16400-78840iN04C..XZU650..6FC..20T;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..T3..6FC..DCRTJ..CBU;N04C..XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T201107-201705

sub16400-78841

main16400-78850iN04C..XZU60#,610,620,640,642,652,655..SCB..MTM..DCRTK201107-201705

sub16400-78851

main16400-78860iN04C..XZU600,655..SCB..6FC..(20T,30T)..DCRTK201107-201705

sub16400-78861

main16400-78870iN04C..XZU600,640..5F..IV4201107-201705

sub16400-78871

main16400-78880iN04C..XZU600,640..6FC..DCRTK..IV4201107-201705

sub16400-78881

main16400-78890iN04C..XZC675,XZU675,685,695..DCRTJ201107-201705

sub16400-78891

main16400-78A00iN04C..XZU675,685,695..SCB..DCRTK201107-201705

sub16400-78A01

main16400-78A10iN04C..XZU685..DCRTK..IV4201107-201705

sub16400-78A11

main16400-78A20i1BZFPE..BZU600201107

main16400-78C90iN04C..XZU600,640,650..DCRVT201705

sub16400-78C91

main16400-78D00iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..6F..(CBU,IV3,IV5,IV6,IV7)201905-202004

sub16400-78D01

main16400-78D01iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..6F..(CBU,IV3,IV5,IV6,IV7)202005

main16400-78D10iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)201905-202004

sub16400-78D11

main16400-78D11iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)202005

main16400-78D20iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201905-202004

sub16400-78D21

main16400-78D21iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6202005

main16400-78D30iN04C..XZU600,640..6FC..IV4201905-202004

sub16400-78D31

main16400-78D31iN04C..XZU600,640..6FC..IV4202005

main16400-78D40iN04C..XZU685..IV4201905-202004

sub16400-78D41

main16400-78D41iN04C..XZU685..IV4202005

main16400-78D50iN04C..XZU600,640..6F..IV4201905-202004

sub16400-78D51

main16400-78D51iN04C..XZU600,640..6F..IV4202005

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520iN04C..XZC605..06S201107-201705

16403FCORE SUB-ASSY, RADIATOR

main16403-78830i1BZFPE..BZU600201107-201705

main16403-78850iN04C..XZU650..35T;N04C..XZU600..SCB..MTM..DCRTK;N04C..XZU600..6FC..(20T,30T)..IV6;N04C..XZU605,610,620,640,655,675,685,695..SCB..DCRTK201107-201705

main16403-78870iN04C..XZU600,640,685..IV4201107-201705

16441TANK, RADIATOR, UPPER

main16441-58640i1BZFPE..BZU600201107

main16441-75380i2TRFE..TRC600,TRU600201107-201605

main16441-78281iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT201107-202005

main16441-78282iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#202005

main16441-78411iN04C..XZC675,XZU675,685,695201107-202005

main16441-78412iN04C..XZC675,XZU675,685,695202005

16442RING, O(FOR RADIATOR UPPER TANK)

main16442-78080iN04C..XZC605..06S201107-201705

16453PLATE, RADIATOR SIDE

main16453-78630i1BZFPE..BZU600201107

main16453-78640i2TRFE..TRC600,TRU600201107-201605

main16453-78830iN04C..XZC605..06S201107-201705

main16453-78870iN04C..XZU600,640,685..DCRTK..IV4201107-201705

main16453-78D00iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201905-202005

sub16453-78D01

main16453-78D01iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7202005

main16453-78D30iN04C..XZU600,640,685..IV4201905-202005

sub16453-78D31

main16453-78D31iN04C..XZU600,640,685..IV4202005

16454PLATE, RADIATOR SIDE

main16454-78640i2TRFE..TRC600,TRU600201107-201605

main16454-78830iN04C..XZC60#,610,630,645,655,675,XZU600,640,652..(SCB,VAN)..(DCRTH,DCRTJ,DCRTK);N04C..XZU602,605,610,620,630,642,645,650,655,675,685,695..(20T,30T,40T)..(DCRTH,DCRT201107-201705

main16454-78870iN04C..XZU600,640,685..IV4201107-201705

main16454-78C90iN04C..XZU600,640,650..DCRVT201705

main16454-78D30iN04C..XZU600,640,685..IV4201905

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16455-61160iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

16461TANK, RADIATOR, LOWER

main16460-78060iN04C..XZU600,640..6FC..DCRTK..IV4201107-201705

main16460-78350iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)201107-201705

main16461-30200i2TRFE..TRC600,TRU600201107-201605

main16461-78070iN04C..XZU600,640,685..5F..IV4201107-201705

main16461-78080iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201107-201705

main16461-78150iN04C..XZU640..SCB..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..5F..30T..DCRTJ..CBU;N04C..XZC600,610,XZU650..MTM..(20T,35T);N04C..XZC605,630,645,655,XZU60#,610201107-201705

16462RING, O(FOR RADIATOR LOWER TANK)

main16442-78080iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

16465PACKING, RADIATOR

main16465-78080iN04C..XZC605..06S201107-201705

16466SEAL, RADIATOR

main16466-78160i1BZFPE..BZU600201107-201605

16467SIDE SEAL

main16467-78520i2TRFE..TRC600,TRU600201107-201605

16470TANK ASSY, RADIATOR RESERVE

main16470-78010i1BZFPE..BZU600201107-201705

main16470-78020iN04C..XZU600,640,685..IV4201107-201705

main16470-78030i2TRFE..TRC600..DCB201107-201705

main16470-78120iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-78570i1BZFPE..BZU600201107

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-12058i1BZFPE..BZU600201107

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078iN04C..XZU600,640,685..DCRTK..IV4201107-201705

main90445-12078iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

main90445-12078iN04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZ201107-201705

main90445-12078iN04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZ201107-201705

main90445-12078iN04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZ201107-201705

16471CAP SUB-ASSY, RESERVE TANK

main16405-78010iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201705

main16405-78020iN04C..XZU600,640,685..IV4201107-201705

main16405-78030i2TRFE..TRC600..DCB201107-201705

main16475-E0030iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

16533BSUPPORT, RADIATOR, NO.1

main16533-78100iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);201107-201705

main16533-78170iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

16534SUPPORT, RADIATOR, NO.2

main16534-78130i2TRFE..TRC600,TRU600201107-201605

main16534-78140iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);201107-201705

main16534-78170iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

16535SUPPORT, RADIATOR, LOWER

main16535-78081i1BZFPE..BZU600201107-201605

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-58010i2TRFE..TRC600,TRU600201107-201605

16571HOSE, RADIATOR, INLET

main16571-78250i2TRFE..TRC600,TRU600201107-201605

16571CHOSE, RADIATOR, NO.1

main16571-78320iN04C..XZC675,XZU675,685,695201107-201108

sub16571-78321

main16571-78321iN04C..XZC675,XZU675,685,695201109-201208

sub16571-78322

main16571-78322iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK201209-201705

main16571-78330iN04C..XZC675,XZU675,685,695201905

main16571-78350iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#201107-201208

sub16571-78351

main16571-78351iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT201209-201705

sub16571-78370

main16571-78360i1BZFPE..BZU600201107-201108

sub16571-78362

main16571-78362i1BZFPE..BZU600201109-201208

sub16571-78363

main16571-78363i1BZFPE..BZU600201209

main16571-78370iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#201905

main90466-35001i2TRFE..TRC600,TRU600201107-201605

16571DCLIP, RADIATOR HOSE, NO.1

main16581-78150iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201108

sub16581-78191

main16581-78151iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201404-201705

main16581-78191iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201109-201404

main16581-78200i1BZFPE..BZU600201107-201109

sub16581-78191

main16581-78201i1BZFPE..BZU600201404

16572HOSE, RADIATOR, OUTLET

main16572-56091i1BZFPE..BZU600201107

16572DHOSE, RADIATOR, NO.2

main16572-78160iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..CBU,IV3,IV5,IV6,IV7201107-201208

sub16572-78162

main16572-78162iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7201209-201705

main16572-78190iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201107-201208

sub16572-78191

main16572-78191iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201209-201705

main16572-78320i1BZFPE..BZU600201107-201108

sub16572-78322

main16572-78322i1BZFPE..BZU600201109-201208

sub16572-78323

main16572-78323i1BZFPE..BZU600201209

16572ECLIP, RADIATOR HOSE, NO.2

main16581-78150iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201107-201108

sub16581-78191

main16581-78150i1BZFPE..BZU600201107-201109

sub16581-78191

main16581-78151iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201404-201705

main16581-78151i1BZFPE..BZU600201404

main16581-78191i1BZFPE..BZU600201109-201404

main16581-78200i1BZFPE..BZU600201107-201109

sub16581-78191

main16581-78201i1BZFPE..BZU600201404

16582BRACKET, RADIATOR, NO.1

main16582-78060iN04C..XZU600..6FC..40T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3201107-201705

main16582-78080iN04C..XZU605,645,650,655..DCRTH,DCRTJ,DCRTK;N04C..XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ)201107-201705

16583BRACKET, RADIATOR, NO.2

main16583-78061i2TRFE..TRC600,TRU600201107-201705

main16583-78080iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

16585BRACKET, RADIATOR, NO.3

main16585-78100iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

16711SHROUD, FAN

main16711-58290i1BZFPE..BZU600201107

main16711-75181i2TRFE..TRC600,TRU600201107-201605

main16711-78280iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6201107-201705

main16711-78290iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

sub16711-78340

main16711-78340iN04C..XZC675,XZU675,685,695201905

9011906182

main90119-06182

9017906293

main90179-06293

9017908233

main90179-08233

9046400840

main90464-00840

9046713020

main90467-13020

9151160612

main91511-60612

9155180814

main91551-80814

9155180820

main91551-80820

91651B0820

main91651-B0820

9165340820

main91653-40820

9415120841

main94151-20841

9415180800

main94151-80800

46 parts on this diagram · 25 diagrams in section
