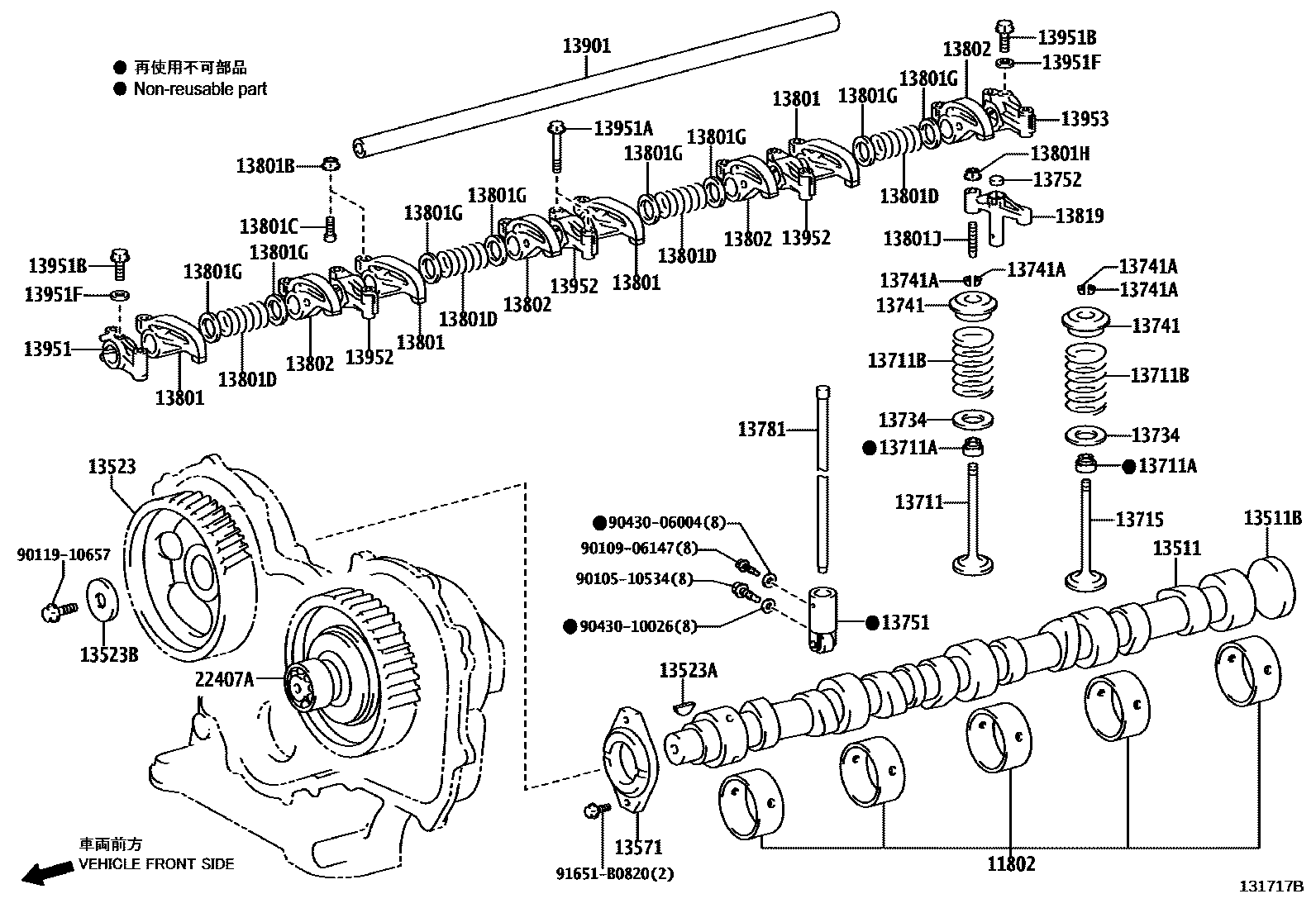

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1

11802BEARING SET, CAMSHAFT

main11802-56031i1BZFPE..BZU600201107-201609

main11802-58010i1BZFPE..BZU600201610

13511CAMSHAFT

main13501-75060i2TRFE..TRC600,TRU600201107-201403

main13501-75061i2TRFE..TRC600,TRU600201403-201605

main13501-75070i2TRFE..TRC600,TRU600201107-201401

main13501-75071i2TRFE..TRC600,TRU600201401-201605

main13501-78201iN04C..XZU600,640,650..DCVTO201905-201906

main13501-78202iN04C..XZU600,640,650..DCVTO201906-202012

main13501-78203iN04C..XZU600,640,650..DCVTO202101

main13501-78211iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD201906-202012

main13501-78212iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD202101

main13501-E0440iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201108

main13501-E0620iN04C..XZC605..06S201108-201605

main13501-E0621iN04C..XZU642..DCRTK,DCRVT;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..DCRTH,DCRTJ,DCRTK201904

main13501-E0651iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD201905-201906

main13511-58020i1BZFPE..BZU600201107-201609

main13511-58021i1BZFPE..BZU600201610

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-58001i1BZFPE..BZU600201107

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-58010i1BZFPE..BZU600201107

main13523-75030i2TRFE..TRC600,TRU600201107-201605

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main95161-30519i1BZFPE..BZU600201107

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10227i1BZFPE..BZU600201107

13571PLATE, CAMSHAFT THRUST

main13571-56030i1BZFPE..BZU600201107

13711VALVE, INTAKE

main13711-58030×8i1BZFPE..BZU600201107

main13711-75110×8i2TRFE..TRC600,TRU600201107-201605

mainS137111800×8iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02096×16i1BZFPE..BZU600201107

main90913-02101×8i2TRFE..TRC600,TRU600201107-201605

main90913-02112×8i2TRFE..TRC600,TRU600201107-201605

13711BSPRING, COMPRESSION(FOR INNER)

main90501-30032×16i2TRFE..TRC600,TRU600201405-201605

main90501-32055×16i2TRFE..TRC600,TRU600201107-201405

main90501-35027×16i1BZFPE..BZU600201107

mainS137311690×16iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201705

13715VALVE, EXHAUST

main13715-48020×8i1BZFPE..BZU600201107

main13715-75100×8i2TRFE..TRC600,TRU600201107-201304

main13715-75140×8i2TRFE..TRC600,TRU600201304-201605

mainS137151870×8iN04C..XZC605..06S201107-201605

13734SEAT, VALVE SPRING

main13734-62020×16i1BZFPE..BZU600201107

mainS137351460×16iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

13741RETAINER, VALVE SPRING

main13741-17010×16i1BZFPE..BZU600201107

main13741-20021×16i2TRFE..TRC600,TRU600201107-201405

main13741-36010×16i2TRFE..TRC600,TRU600201405-201605

13741ALOCK, VALVE SPRING RETAINER

main90913-03027×32i1BZFPE..BZU600201107

main90913-03028×32i2TRFE..TRC600,TRU600201107-201605

mainSZ91026013×32iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201705

13751LIFTER, VALVE

main13750-58011×8i1BZFPE..BZU600201107

main13751-E0040×8iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201705

13752PAD, VALVE LIFTER

main13752-58010×8i1BZFPE..BZU600201107

13781ROD, VALVE PUSH

main13781-58010×8i1BZFPE..BZU600201107

mainS137811500×8iN04C..XZC605..06S201107-201605

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011×16i2TRFE..TRC600,TRU600201107-201405

main13801-36020×16i2TRFE..TRC600,TRU600201405-201605

main13811-58010×4i1BZFPE..BZU600201107

main13811-78030×4iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main13811-E0190×4iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201705-201905

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90179-08248×8i1BZFPE..BZU600201107

mainS137881030×8iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201705

13801CSCREW, VALVE ADJUSTING

main90913-05025×8i1BZFPE..BZU600201107

mainS137871161×8iN04C..XZC605..06S201107-201605

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16114×4i1BZFPE..BZU600201107

13801GWASHER, PLATE(FOR VALVE ROCKER ARM)

main90206-19002×8i1BZFPE..BZU600201107

13801HNUT

main90179-08248×8i1BZFPE..BZU600201107

13801JSCREW, VALVE ADJUSTING

main90913-05024×8i1BZFPE..BZU600201107

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-78060×4iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main13811-E0200×4iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201705

main13812-58010×4i1BZFPE..BZU600201107

13819BRIDGE, VALVE

main13819-58010×8i1BZFPE..BZU600201107

main13819-E0050×8iN04C..XZC605..06S201107-201605

main13819-E0051×8iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202011

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-56030i1BZFPE..BZU600201107

main13901-78030iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main13901-E0030iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201505

13951SUPPORT, VALVE ROCKER, NO.1

main13951-58010i1BZFPE..BZU600201107

main13951-78070×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main13951-78100×2iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main13951-78110iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main13951-E0040×2iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT201107-201705

main13951-E0050×3iN04C..XZC605..06S201107-201605

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08165×10i1BZFPE..BZU600201107

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main13958-56010×2i1BZFPE..BZU600201107

13951FWASHER, PLATE(FOR VALVE ROCKER SUPPORT)

main90201-06350×2i1BZFPE..BZU600201107

13952SUPPORT, VALVE ROCKER, NO.2

main13952-58010×3i1BZFPE..BZU600201107

13953SUPPORT, VALVE ROCKER, NO.3

main13953-58010i1BZFPE..BZU600201107

22407AGEAR SUB-ASSY, DISTRIBUTOR DRIVE

main22407-58010i1BZFPE..BZU600201107

9010510534

main90105-10534

9010906147

main90109-06147

9011910657

main90119-10657

9043006004

main90430-06004

9043010026

main90430-10026

91651B0820

main91651-B0820

40 parts on this diagram · 5 diagrams in section
