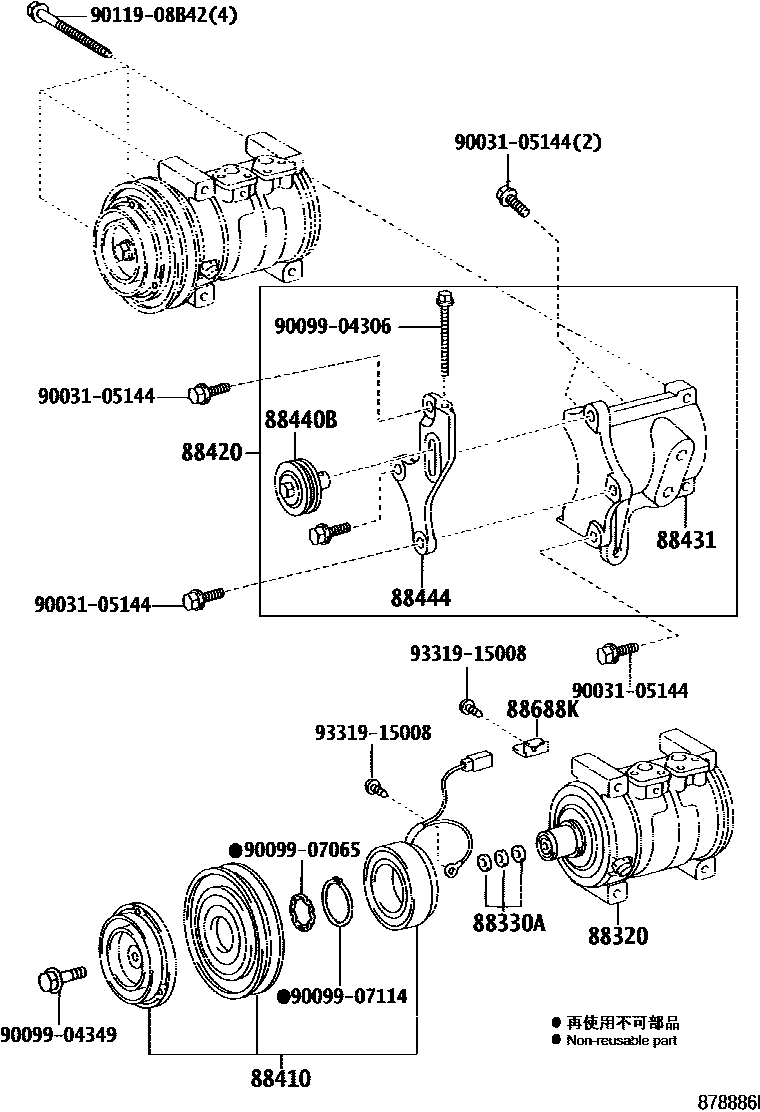

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1������

88320COMPRESSOR ASSY, COOLER

main88320-25130iTRU300,340,500200705-201106

main88320-37070iBZU300,340200705-201106

main88320-37110iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main88320-37120iXZU368,378,388,568200610-201106

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

88410CLUTCH ASSY, MAGNET

main88410-17100iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main88410-35400iTRU300,340,500200705-201106

main88410-37100iBZU300,340200705-201106

main88410-37140iXZU368,378,388,568200610-200907

main88410-37141iXZU368,378,388,568200908-201106

88420PULLEY ASSY, IDLE, W/BRACKET

main88420-37230iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610

main88420-37240iXZU368,378,388,568200610

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-37090iBZU300,340200705

main88431-37130iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610

main88431-37140iXZU368,378,388,568200610

main88431-37190iTRU300,340,500200705

88440BPULLEY ASSY, IDLE

main88440-25070iTRU300,340,500200705-201106

main88440-26070iBZU300,340200705-201106

main88440-37120iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

mainS883601380iXZU368,378,388,568200610-201106

88444BRACKET, IDLE PULLEY

main88444-37030iBZU300,340200705

main88444-37040iBZU300,340200705

main88444-37060iBZU300,340..(T3,T4)..IV3200705

main88444-37160iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

88688KBRACKET, COOLER COMPRESSOR

main88688-25430iTRU300,340,500200705-201106

main88688-2D770iBZU300,340200705-201106

main88688-3V580iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

9003105144

main90031-05144

9009904306

main90099-04306

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

15 parts on this diagram · 5 diagrams in section
