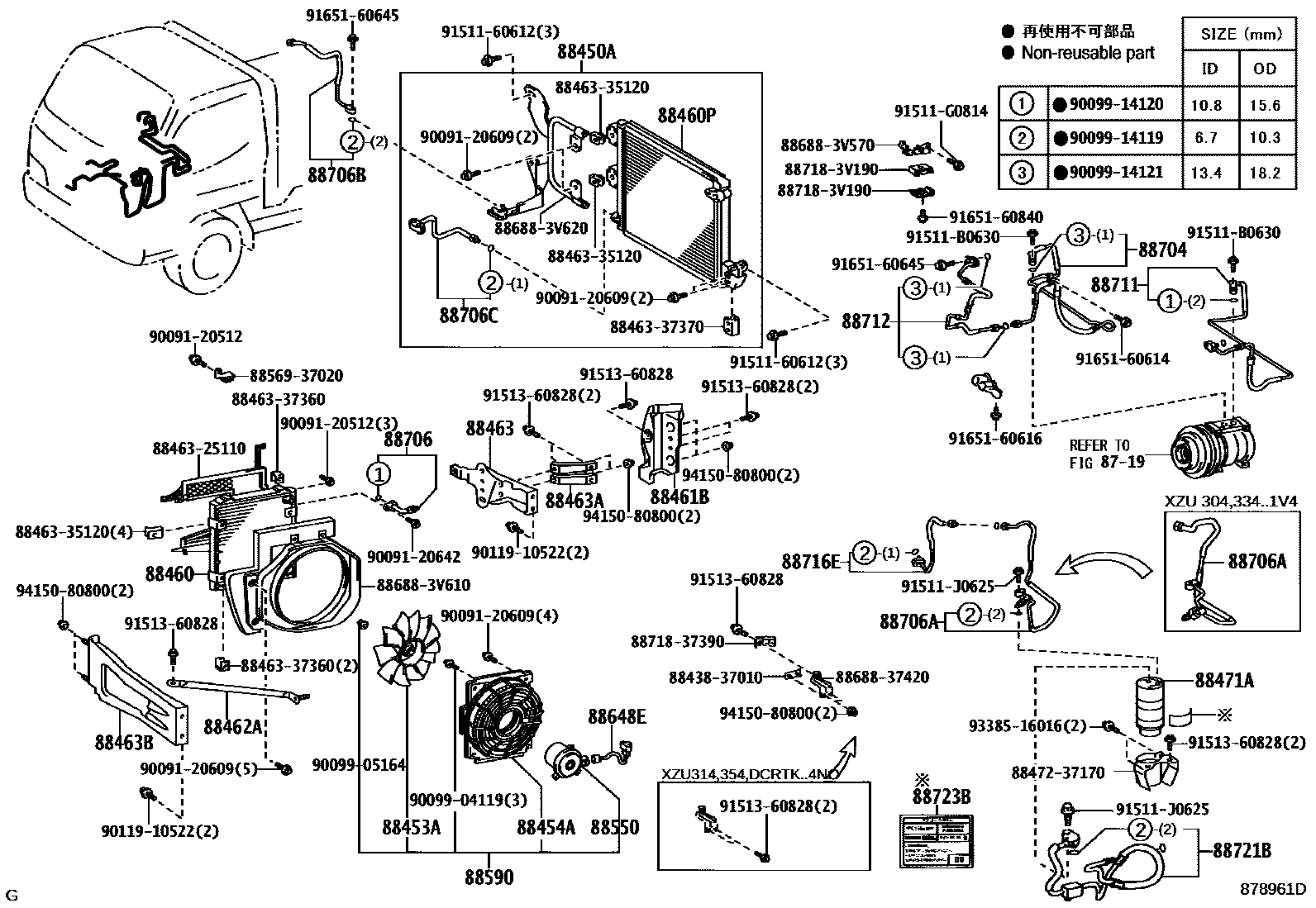

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1��(�� ����) 0007 1��(�� ���� & �� ����) 0008 1 0009 1 0010 1

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88450ASUB CONDENSER ASSY

main88450-37041iXZU308,348,508..DCB,VAN;TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

main88450-37120iBZU300,340200705

88453AFAN, COOLING

main88453-37010iBZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200610

main88453-37030iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610

88454ASHROUD, FAN

main88454-37031iBZU300,340,XZU304,314,334,344,354..DCRTK,DCRTM,LPG200610

main88454-37090iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610

88460CONDENSER ASSY, COOLER

main88460-37640iTRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

main88460-37730iBZU300,340200705

88460PCONDENSER ASSY, COOLER NO.2

main88460-37630iXZU308,348,508..DCB,VAN200610-201106

main88461-37120iBZU300,340200705-201106

88461BCOVER, COOLER CONDENSER

main53715-37180iBZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200610

88462AHOLDER, CONDENSER

main88462-37110iXZU304,314,334,344,354..DCRTK200610-200611

main88462-37130iBZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200612

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37140iBZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200610-201106

main88463-37410iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610-201106

main88463-37460iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-37150iBZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200610-201106

main88463-37400iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610-201106

main88463-37470iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88463BBRACKET, COOLER CONDENSER, NO.3

main88463-37160iBZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200610-201106

main88463-37420iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610-201106

main88463-37480iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88471ATANK, RECEIVER

main88471-28100iXZU308,348..DCB200610-201106

main88471-34010iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI,LPG200610-201106

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-37060iXZU304,314,334,344,354..DCRTK,DCRTM200610

main88550-37070iBZU300,340,TRU300,340,500200705

main88550-37120iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610

88590BLOWER ASSY, W/SHROUD

main88590-37051iXZU304,314,334,344,354..DCRTK,DCRTM200610

main88590-37130iTRU300,340,500200705

main88590-37180iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610

88648EWIRING, COOLER

main88648-37130iTRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

88704HOSE SUB-ASSY, SUCTION

main88704-37030iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-200903

main88704-37100iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200903

88706PIPE SUB-ASSY, LIQUID

main88706-37200iXZU368,378,388,568;XZU308,348..DCRTK,DCRTM200610

main88706-37270iBZU300,340200705

main88716-3V550iTRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

main88716-3V620iXZU308,348,508..DCB,VAN200610

88706ATUBE SUB-ASSY, LIQUID, A

main88706-37240iXZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU368,378,388,568..CBU,IV3;TRU300,340,500,XZU30#,314,334,344,354..(DCRTH,DCRTK,DCRTM,EFI)..(CBU,IV3,IV6,IV7)200610

main88706-37260iXZU304,334,378..IV4200610

88706BTUBE SUB-ASSY, LIQUID, B

main88706-37171iTRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

main88706-37250iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610

88706CTUBE SUB-ASSY, LIQUID, C

main88716-3V620iTRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-37890iXZU368,378,388,568200610-201005

main88711-37891iXZU368,378,388,568201006

main88711-3V060iXZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM200610

main88711-3V110iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610

main88711-3V120iTRU300,340,500200705

main88711-3V130iBZU300,340200705

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-3V430iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554; XZU368,378,388,568..SCB200610

main88712-3V490iXZU368,378,388,568200610-201006

main88712-3V491iXZU368,378,388,568201006

main88712-3V520iXZU378,388..DCB200610

main88712-3V740iXZU308,348..DCB200610

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-3V570iTRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI200610

main88716-3V651iXZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE)200610

88721BHOSE, LIQUID, B

main88721-37840iXZU378,388..DCB200610

main88721-3V030iXZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU368,378,388,568..SCB;XZU308..DCB..(DCRTJ,DCRUE);TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI200610

main88721-3V070iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610

main88721-3V080iXZU308,348..DCB200610

88723BLABEL, COOLER SERVICE CAUTION

main88733-22040iXZU368,378,388,568;XZU308,348..DCRTK,DCRTM200610-201106

main88733-27010iXZU308,348,508..DCB,VAN;BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG200610-201106

main88733-30050iXZU308,348..DCB200610-201106

main88733-52010iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

8843837010

main88438-37010

8846325110BRACKET, COOLER CONDENSER, NO.1

main88463-25110

8846335120BRACKET, COOLER CONDENSER, NO.1

main88463-35120

8846337360BRACKET, COOLER CONDENSER, NO.1

main88463-37360

8846337370BRACKET, COOLER CONDENSER, NO.1

main88463-37370

8847237170BRACKET, RECEIVER TANK, NO.1

main88472-37170

8856937020CLAMP (FOR COOLER RELAY)

main88569-37020

8868837420BRACKET, COOLER DIAPHRAGM

main88688-37420

886883V570BRACKET, COOLER DIAPHRAGM

main88688-3V570

886883V610BRACKET, COOLER DIAPHRAGM

main88688-3V610

886883V620BRACKET, COOLER DIAPHRAGM

main88688-3V620

8871837390PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37390

887183V160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-3V160

887183V190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-3V190

9009120512

main90091-20512

9009120609

main90091-20609

9009120642

main90091-20642

9009904119

main90099-04119

9009905164

main90099-05164

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011910522

main90119-10522

9151160612

main91511-60612

91511B0630

main91511-B0630

91511G0814

main91511-G0814

91511J0625

main91511-J0625

9151360828

main91513-60828

9165160614

main91651-60614

9165160616

main91651-60616

9165160645

main91651-60645

9165160840

main91651-60840

9338516016

main93385-16016

9415080800

main94150-80800

59 parts on this diagram · 10 diagrams in section
