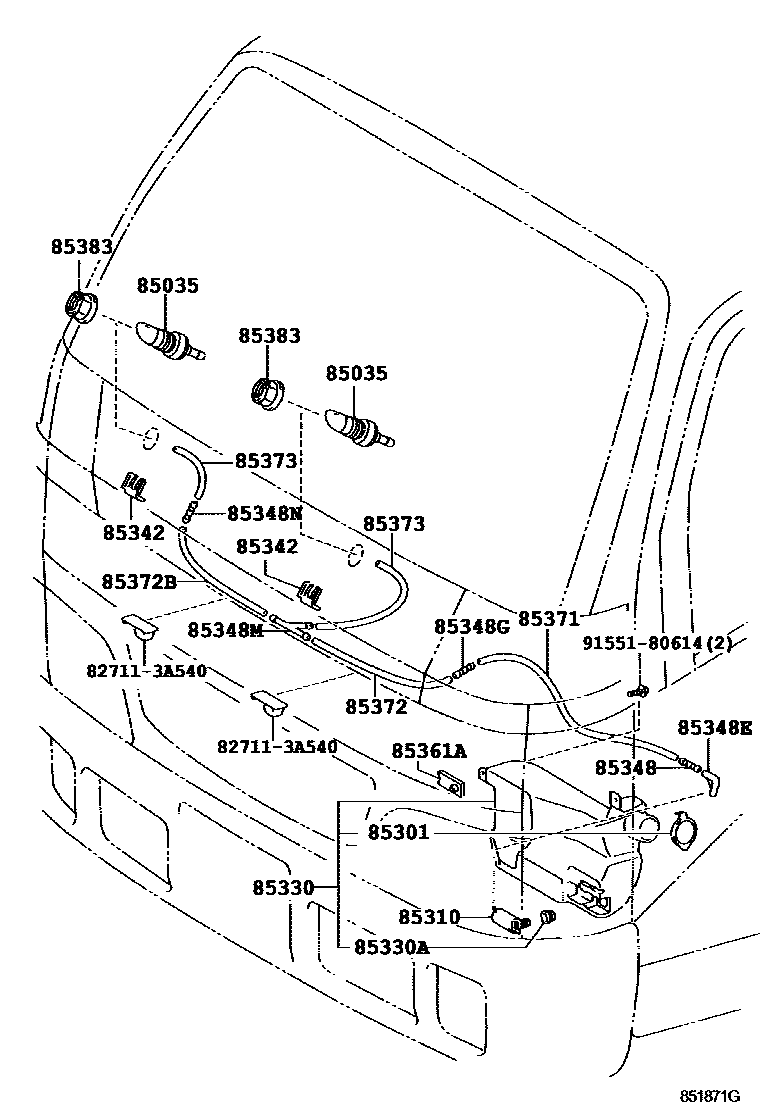

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-37030×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85301INLET SUB-ASSY, WASHER
main85301-17010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85315-37090iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85342HOLDER, WASHER NOZZLE
main85342-95J01×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85376-46040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-14481iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85348-12250iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85349-89122iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85362-37050iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200705
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-07001iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90446-06013iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
85383HOLDER, FRONT WASHER NOZZLE
main85383-37010×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
9155180614
main91551-80614
19 parts on this diagram · 1 diagram in section
