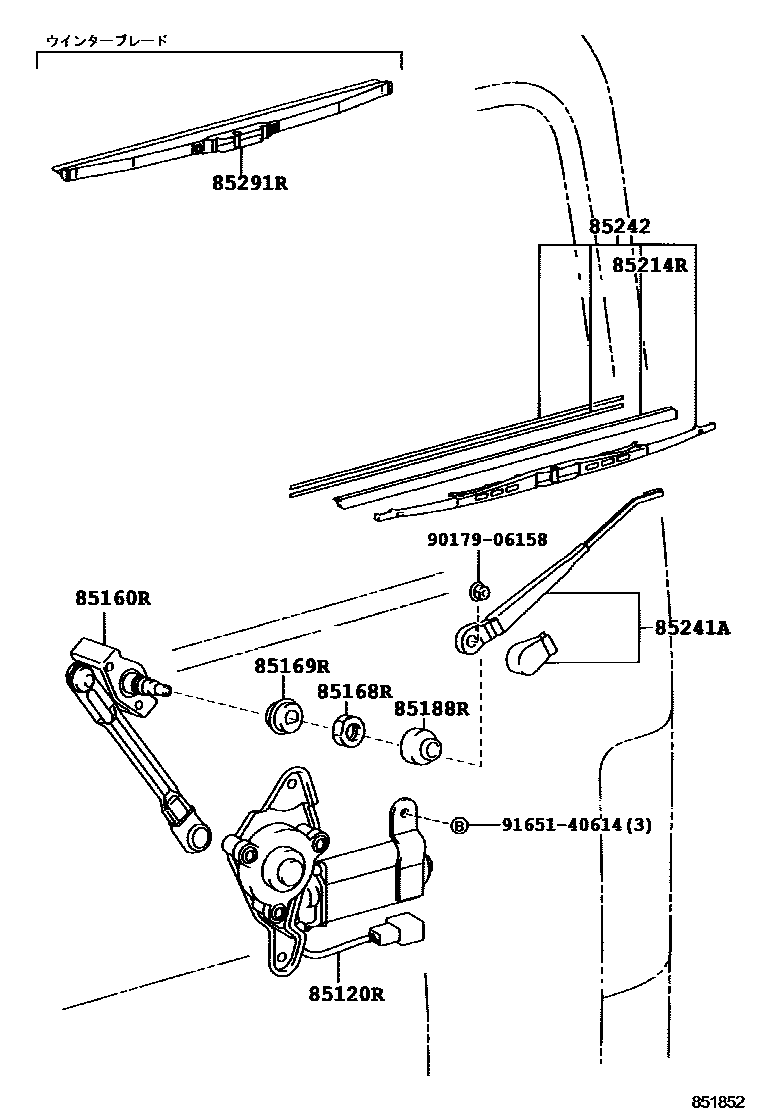

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-37010iXZU508..VAN200610

85160RLINK ASSY, REAR WIPER

main85160-95J04iXZU508..VAN200610

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-95700iXZU508..VAN200610

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-95J01iXZU508..VAN200610

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-95J00iXZU508..VAN200610

85214RRUBBER, REAR WIPER

main85214-26010iXZU508..VAN200610

85241AARM, REAR WIPER

main85241-26020iXZU508..VAN200610

85242BLADE, RR WIPER

main85242-26020iXZU508..VAN200610

85291RBLADE,REAR WIPER, WINTER

main85291-44080iXZU508..VAN200610

9017906158

main90179-06158

9165140614

main91651-40614

11 parts on this diagram · 1 diagram in section
